Smartphone Zone 2/22

IS520.2

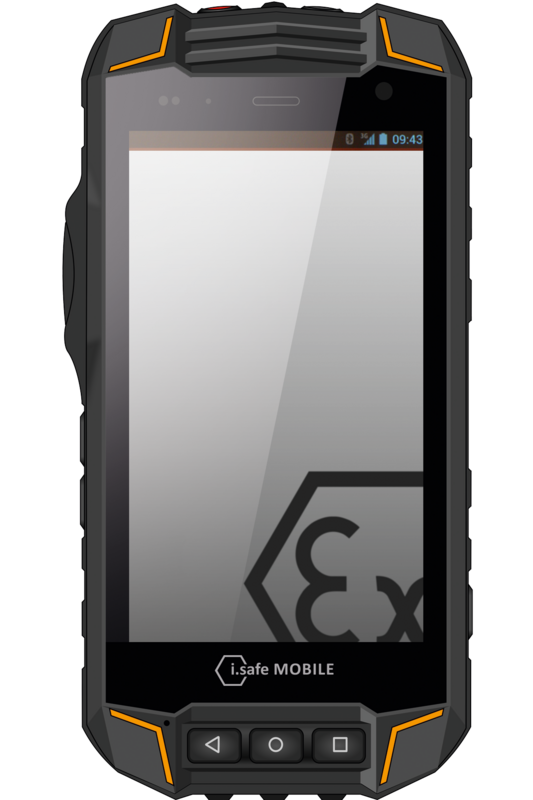

The IS520.2 is an industrial smartphone with current technology. It combines modern design, updated technology and robustness of an industrial product.

Advantages

  • Amplified loudspeaker for noisy work environments
  • Push-to-talk button for uncomplicated team communication
  • SOS key for loneworker protection
  • Dual micro SIM
  • Display can be operated with gloves
  • Replaceable battery for long shift operations

Technical features

Operating systemAndroid 7.1
ProcessorQualcomm Snapdragon MSM8953 Octa Core
Memory3 GB RAM
32 GB internal memory
microSD to 32 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA 850/900/1900/2100 MHz
4G LTE-FDD: B1/B3/B7/B20/B28
4G LTE-TDD: B38/B39/B40/B41
4G LTE-TD: B34/B39
DimensionsSize: 155 x 80 x 25 mm
Weight: 325 g
Display4,5" Gorilla Glass V3
usable with gloves
Battery3600 mAh, 3,8 V
replaceable
Camera8 MP AF rear
5 MP FF front
ConnectivityWiFi 2.4 GHz + WiFi 5.0 GHz: IEEE 802.11 b/g/n/ac/r with hotspot
Bluetooth® 4.1 BLE
GPS, A-GPS, Glonass, Beidou
Types of protectionIP68 dust-/waterproof
MIL-STD 810G
Usable from -20 °C to 60 °C

Further features

SIM cart
Dual micro-SIM
TASTE_PTT
Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)
TASTE_SOS_ROT

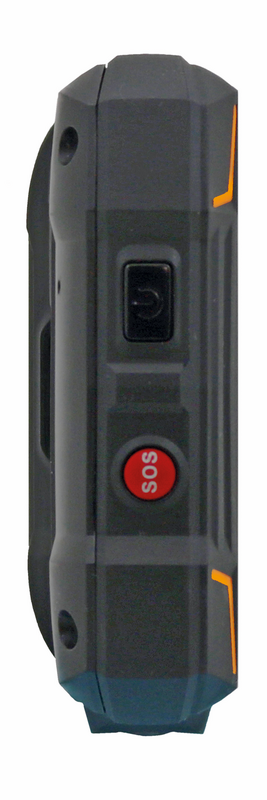

SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)
VERSTAERKTER_LAUTSPRECHER
Amplified loudspeaker
Sensors
gyroscope, light, magnetic, proximity sensors
LADEOPTIONENGEN
Type C USB, magnetic charger port, Desktop Charger
Download datatsheet | pdf ▪ 705 KB

Approvals

ATEX (Europe)
ATEX (Europe)
approved
II 3G Ex ic IIC T4 Gc IP64
II 3D Ex ic IIIB T135°C DC IP64
IECEx (International)
IECEx (International)
approved
Ex ic IIC T4 Gc IP64
Ex ic IIIB T135°C Dc IP64

Contents

Included
  • Smartphone
  • Battery
  • Power Adapter universal
  • Display Protection Foil
  • Safety Instructions
  • Quick Start Manual
  • Type C USB Cable
  • Magnetic Charger Cable
Accessories
Charging systems
IS-DC530.1 Desktop Charger
IS-DC530.1 Desktop Charger
Desktop charger for IS520.1, IS520.2 and IS530.1, IS530.M1, IS530.2, IS530.RG with a second charging slot for spare battery, Size: 88 x 78 x 44 mm (L x W x H)
Charging systems
IS-MC530.1 Multi Charger
IS-MC530.1 Multi Charger
Multi charger for six devices, each with a second charging slot for spare batteries.  Size: 595 x 113 x 77 mm (L x W x H). Compatible for IS530.1, IS530.M1, IS530.2, IS530.RG und IS520.1, IS520.2.
Carrying systems
Belt Clip IS530.x/IS520.x
Belt Clip IS530.x/IS520.x
Plastic black, for a quick and safe attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS530.1, IS530.2.
Leather Cases
Leather Case black IS530.x/IS520.x
Leather Case black IS530.x/IS520.x
Made of high quality leather, black. With locking clip for quick attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS520.1, IS520.2.
Leather Cases
Leather Case yellow IS530.x/IS520.x
Leather Case yellow IS530.x/IS520.x
Made of high quality leather, yellow. With locking clip for quick attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS530.1, IS530.2.
Leather Cases
Armholder for Leather Case
Armholder for Leather Case
The Armholder made of antistatic Cordura® offers safe carrying of smartphones and mobile phones on the arm. These can be firmly fixed by means of the clip and press stud of the matching leather pouch.
Leather Cases
Leather Case black with armholder set IS530.x
Leather Case black with armholder set IS530.x
Set with Leather Case made of high quality leather, black and arm holder made of hard-wearing, antistatic and impregnated Cordura®.
Leather Cases
Leather Case yellow with Armholder Set IS530.x
Leather Case yellow with Armholder Set IS530.x
Set with Leather Case made of high quality leather, yellow and Armholder made of hard-wearing, antistatic and impregnated Cordura®.
Others
IS-Stylus
IS-Stylus
Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
Display protection foils
Display Protection Foil IS530.x/IS520.x
Display Protection Foil IS530.x/IS520.x
Rugged plastic foil for an extended protection of the display. Suitable for the devices IS520.1, IS520.2 as well IS530.1, IS530.M1, IS530.2 and IS530.RG.
Display protection foils
PanzerGlass™ IS520.x/IS530.x
PanzerGlass™ IS520.x/IS530.x
PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS520.1, IS520.2 as well IS530.1, IS530.M1, IS530.2 and IS530.RG.
