Add-on Zone 1/21

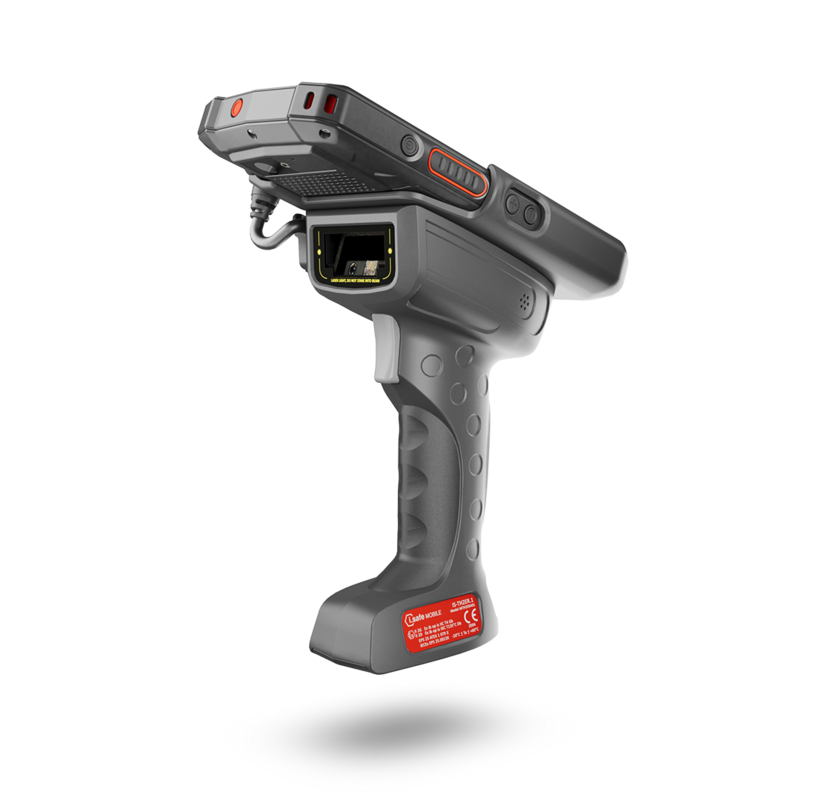

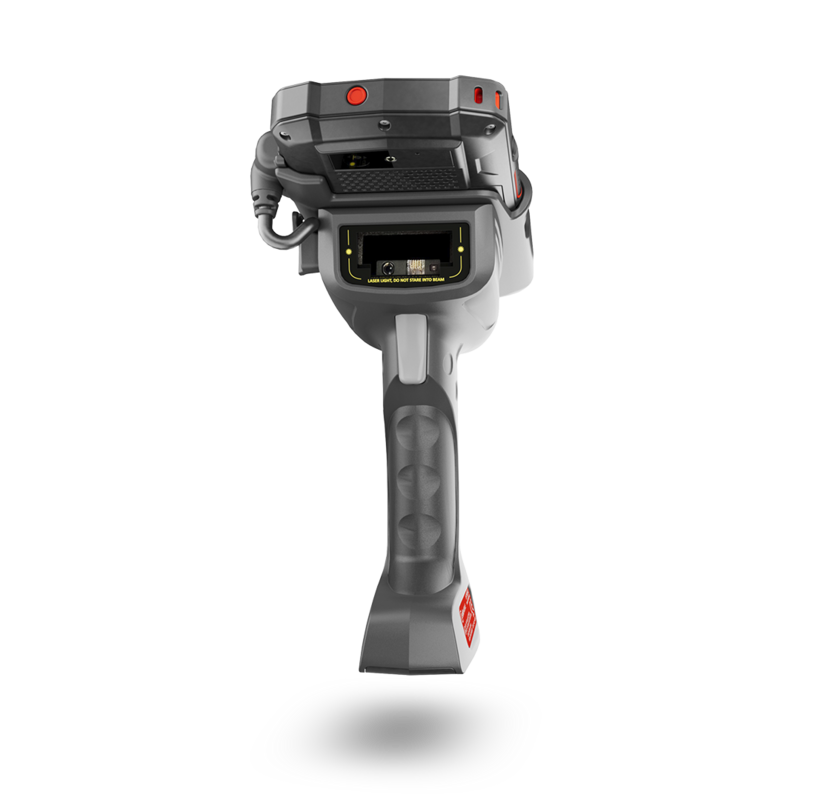

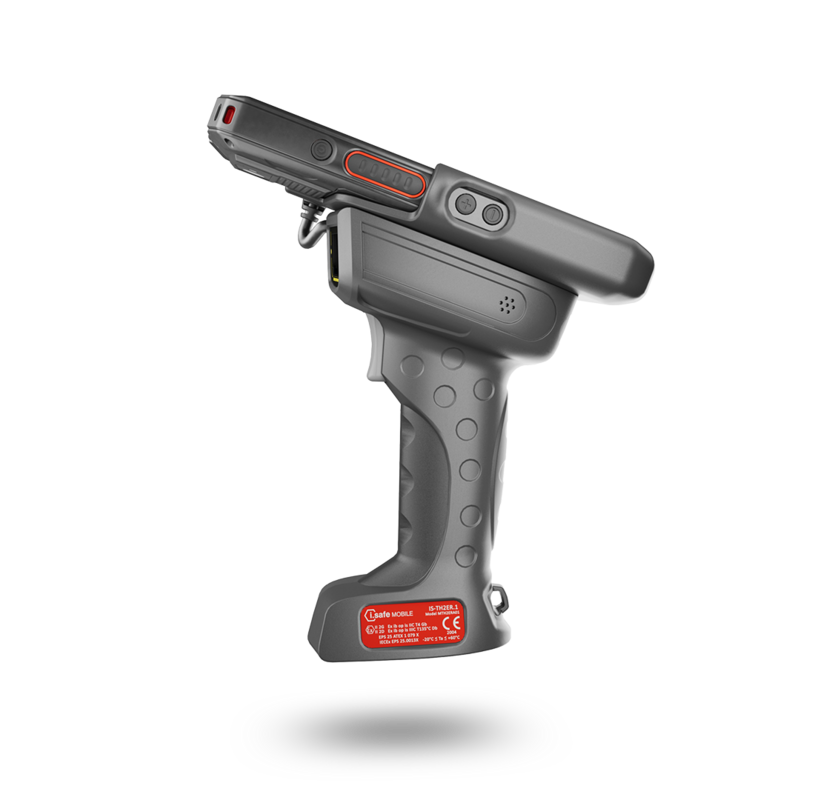

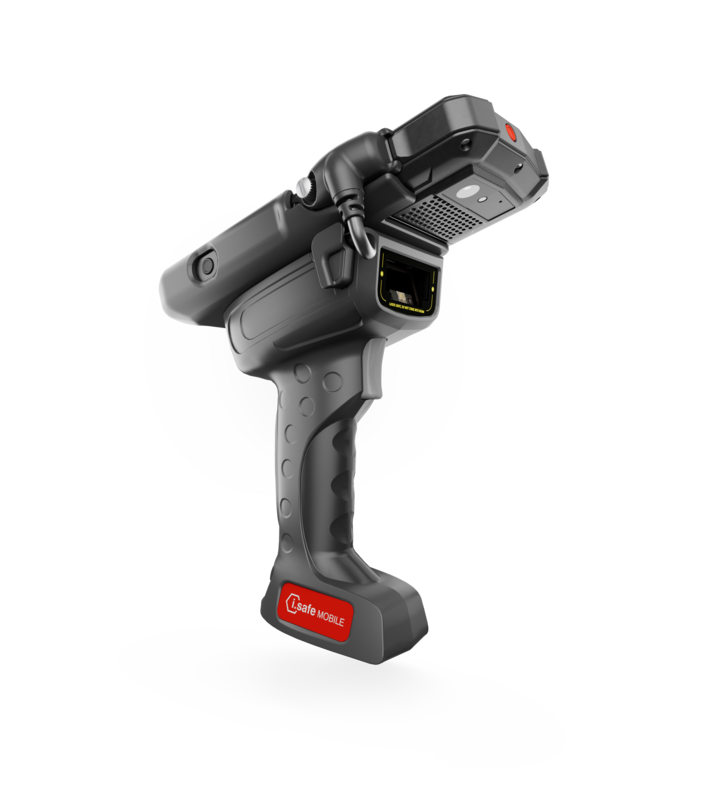

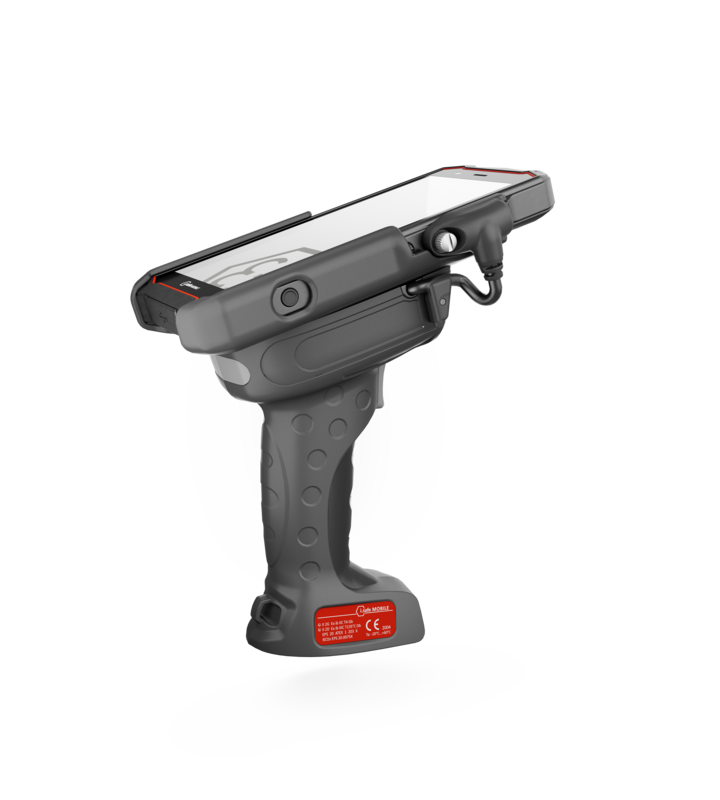

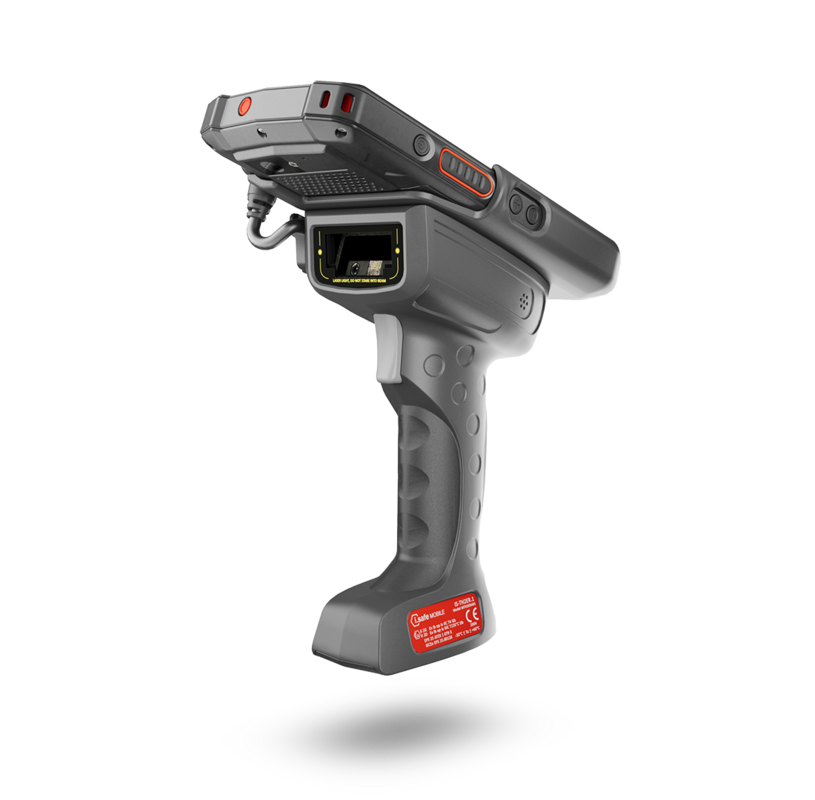

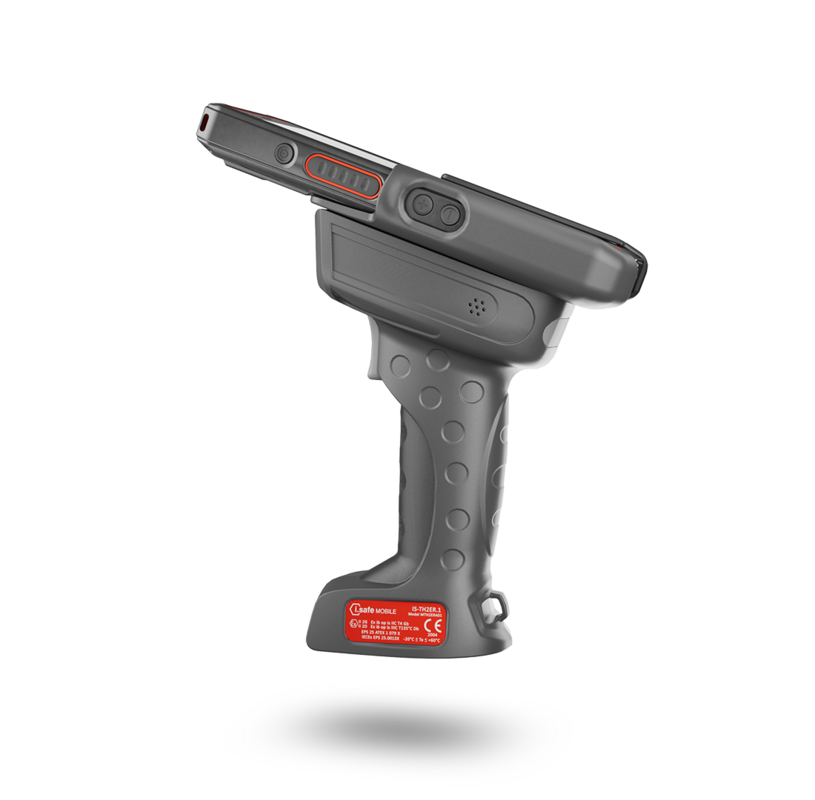

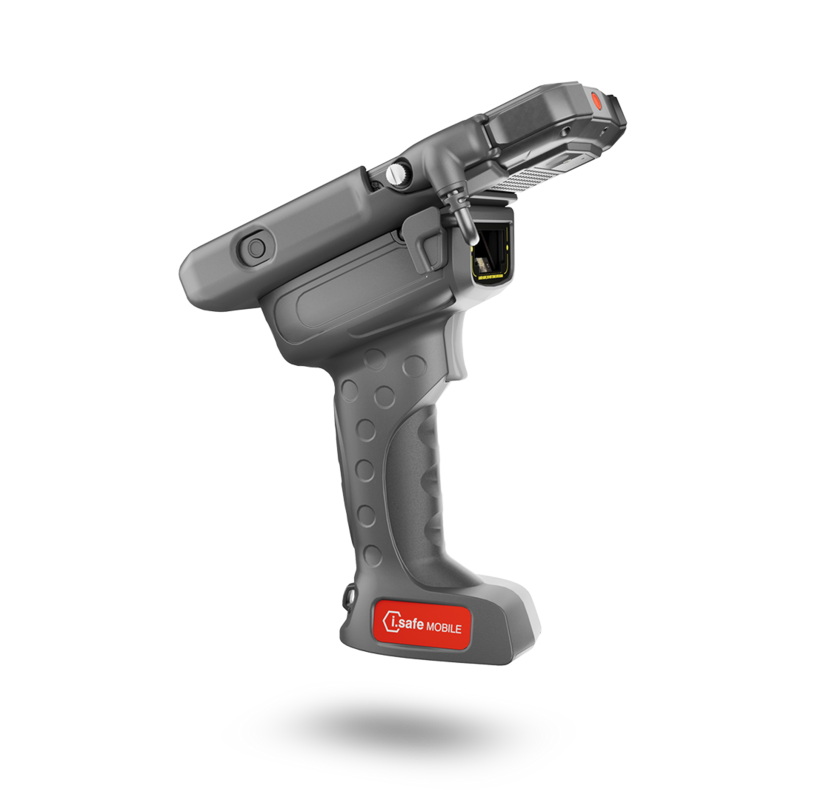

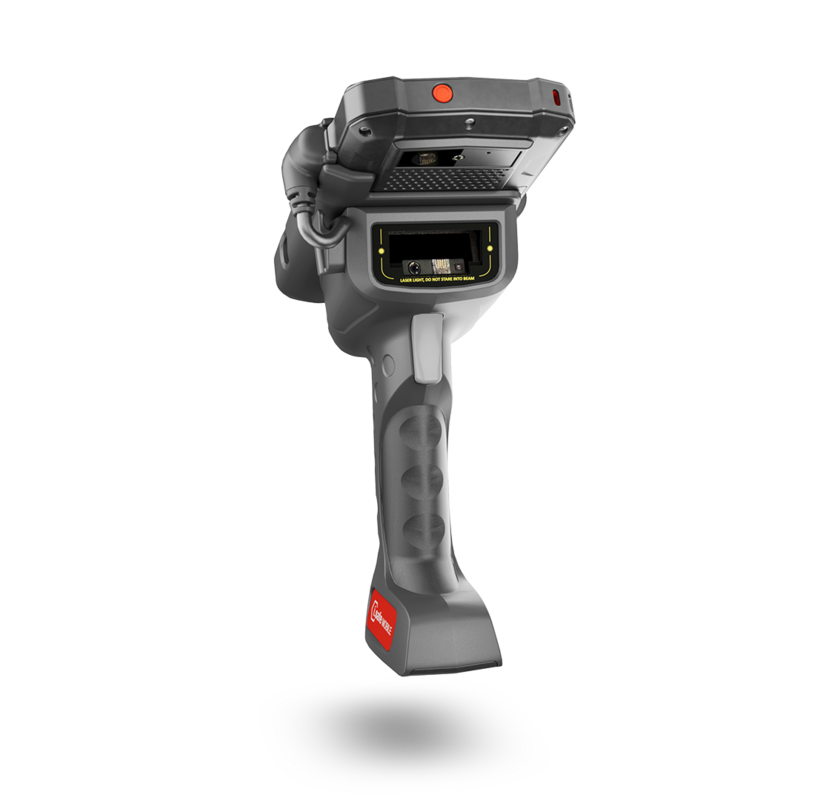

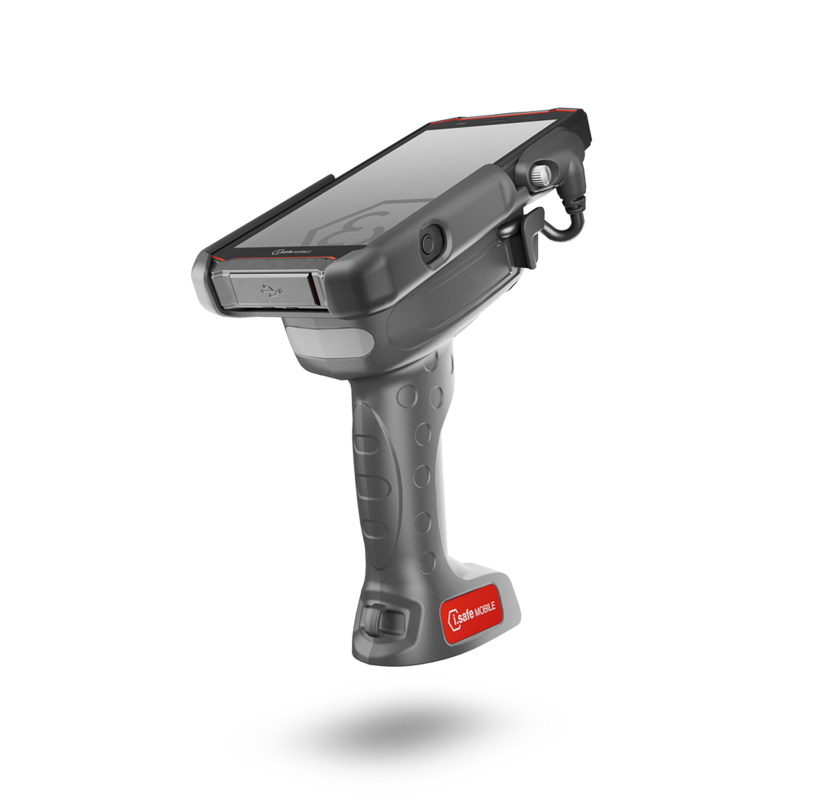

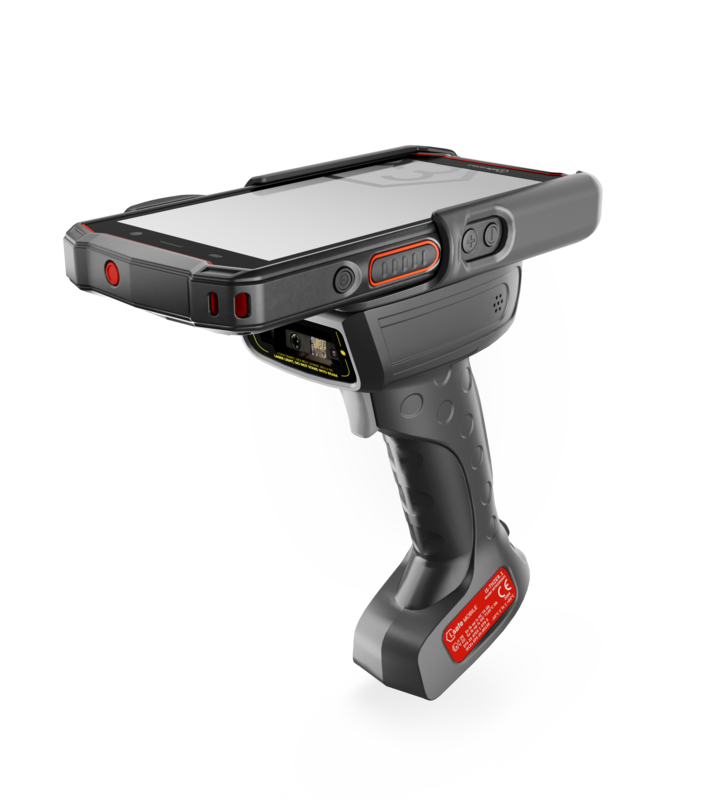

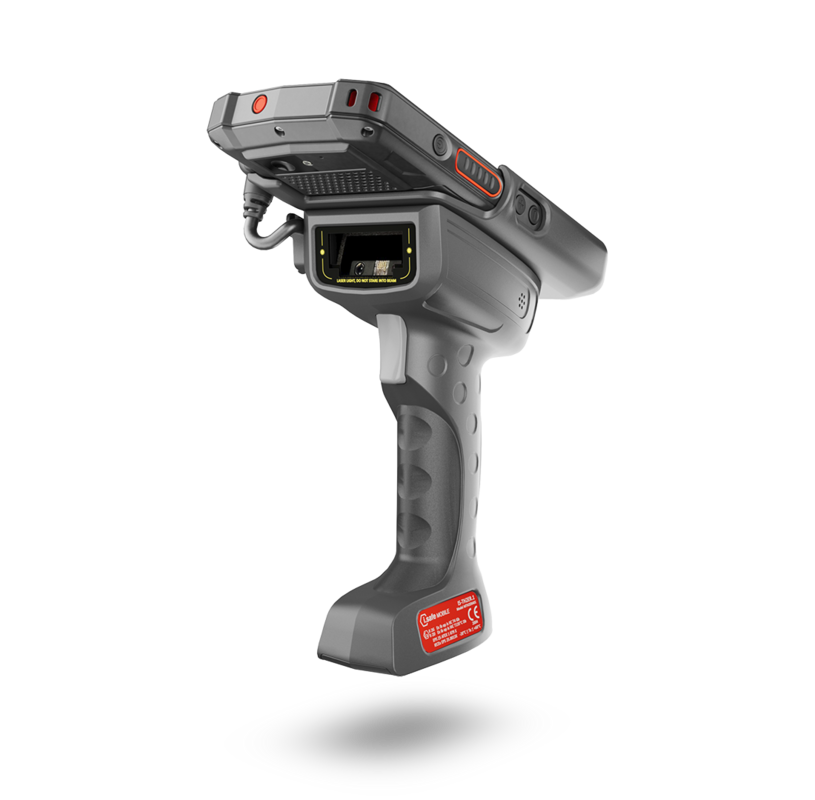

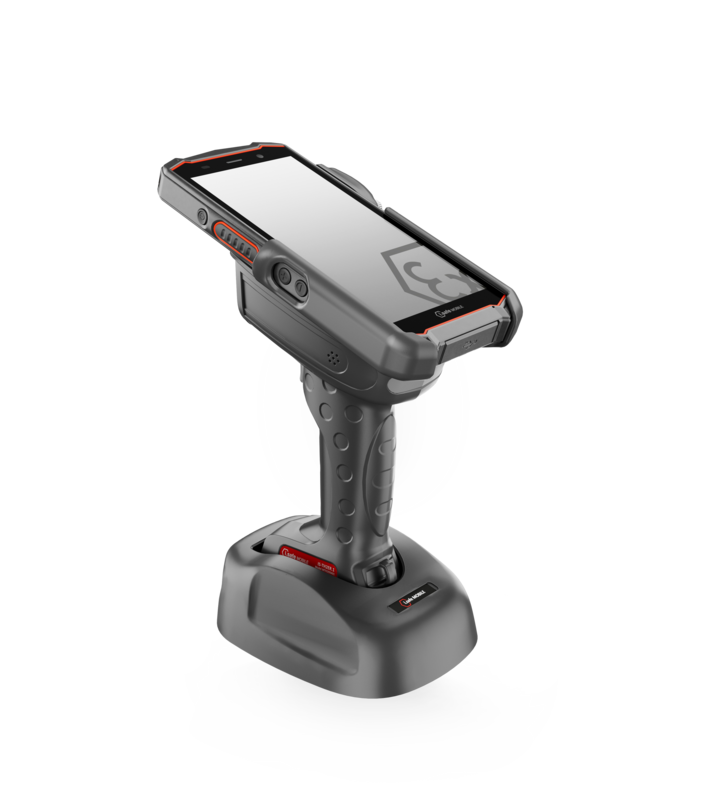

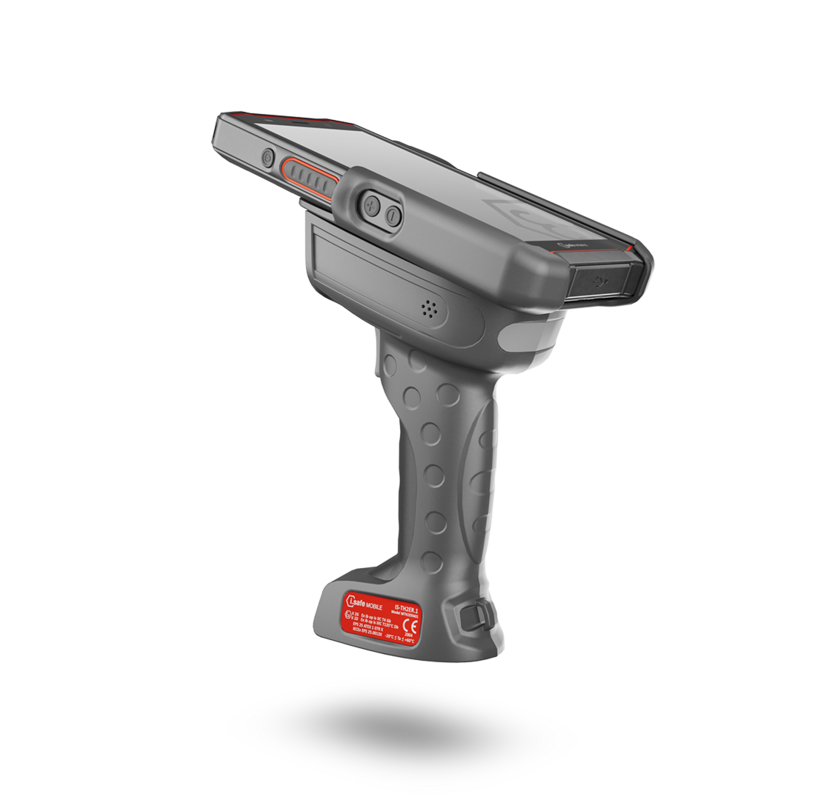

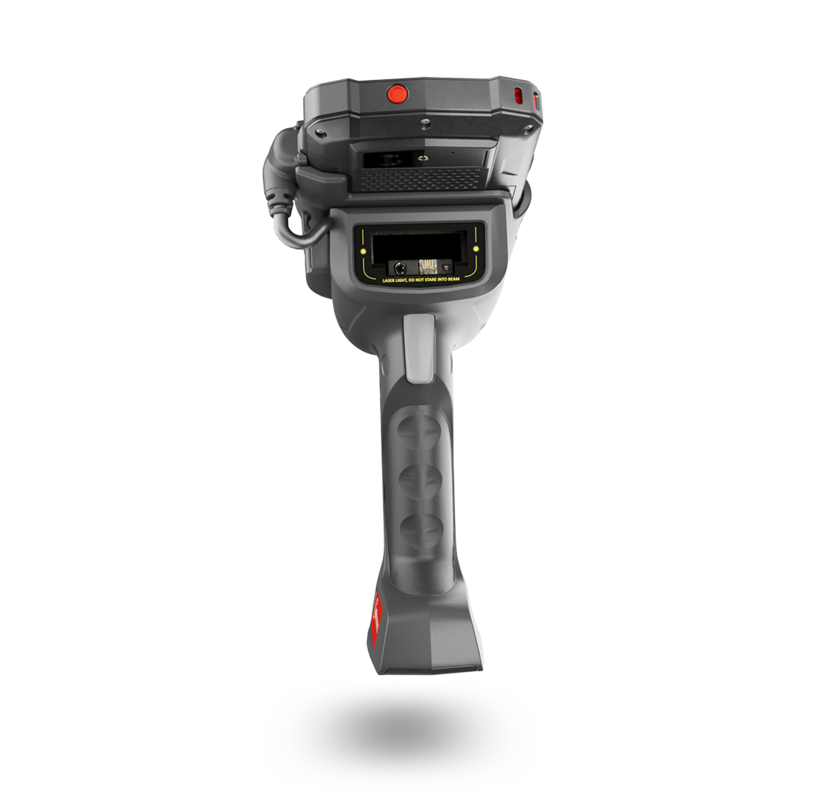

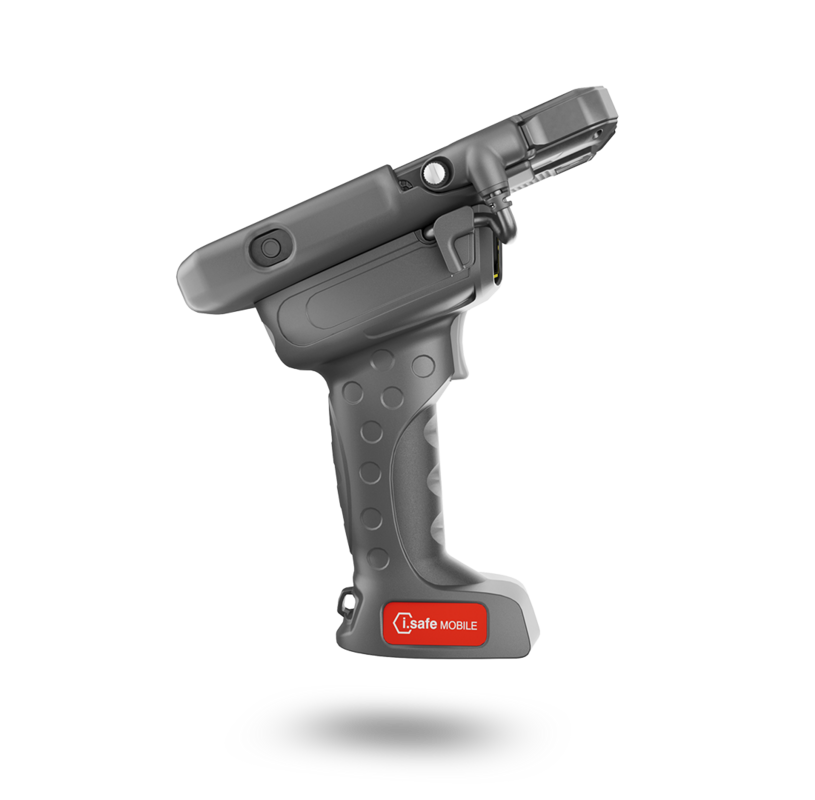

IS-TH2ER.1

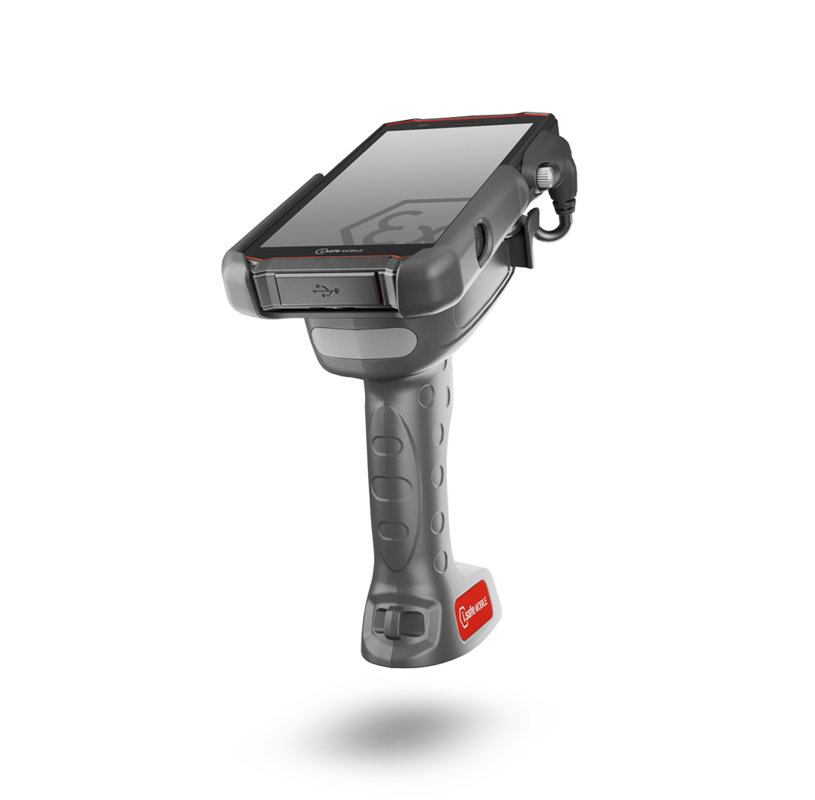

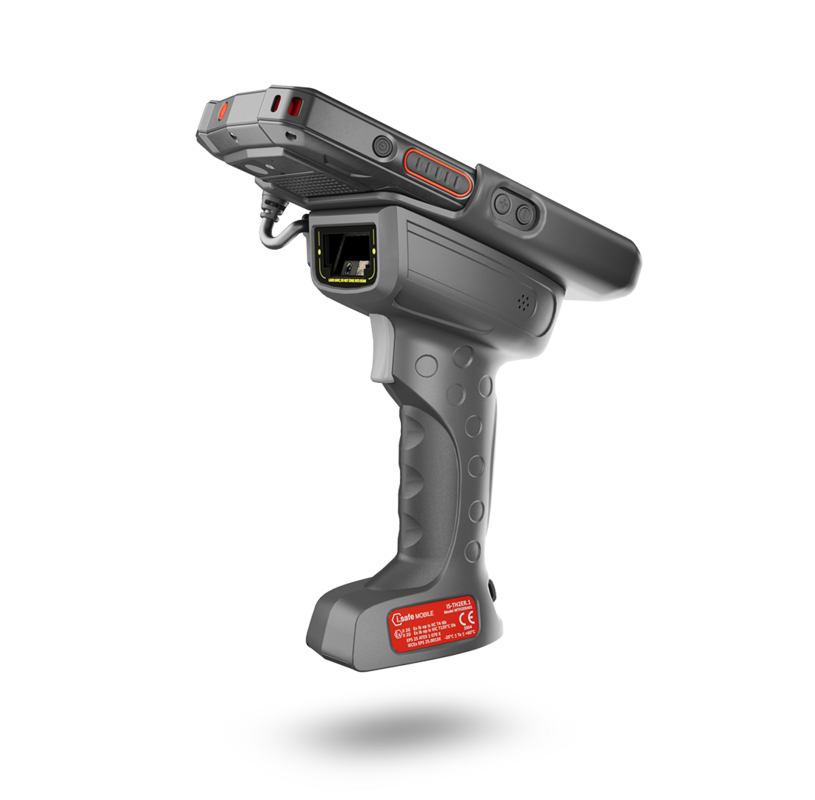

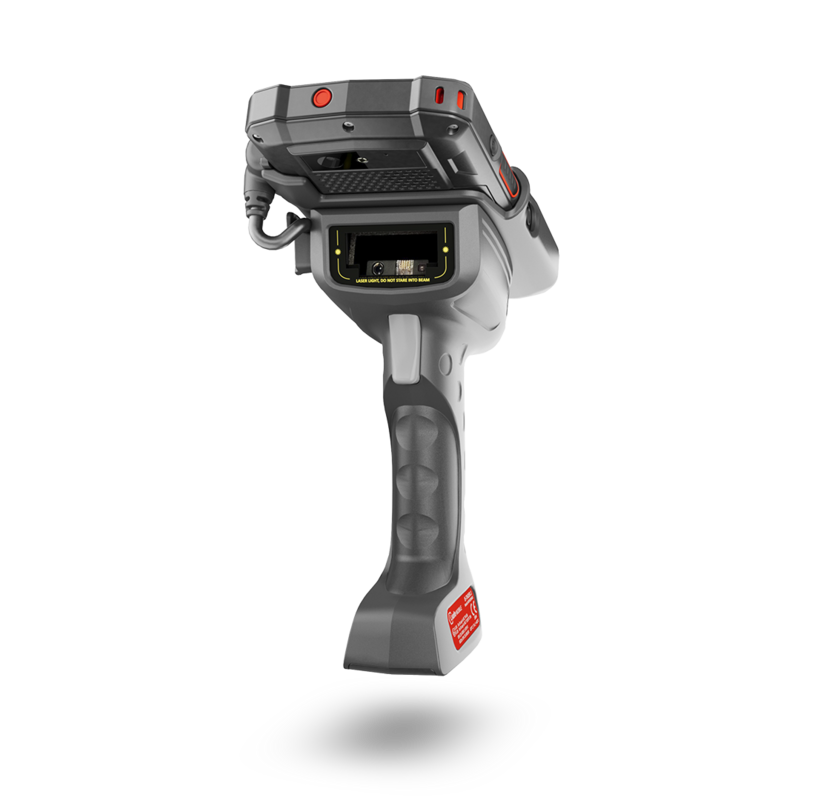

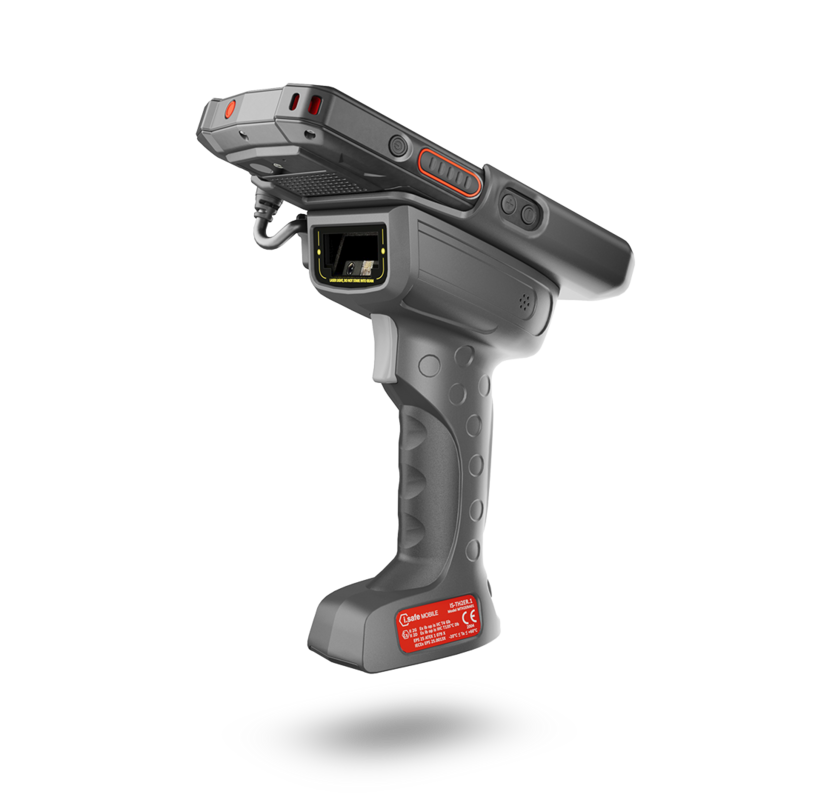

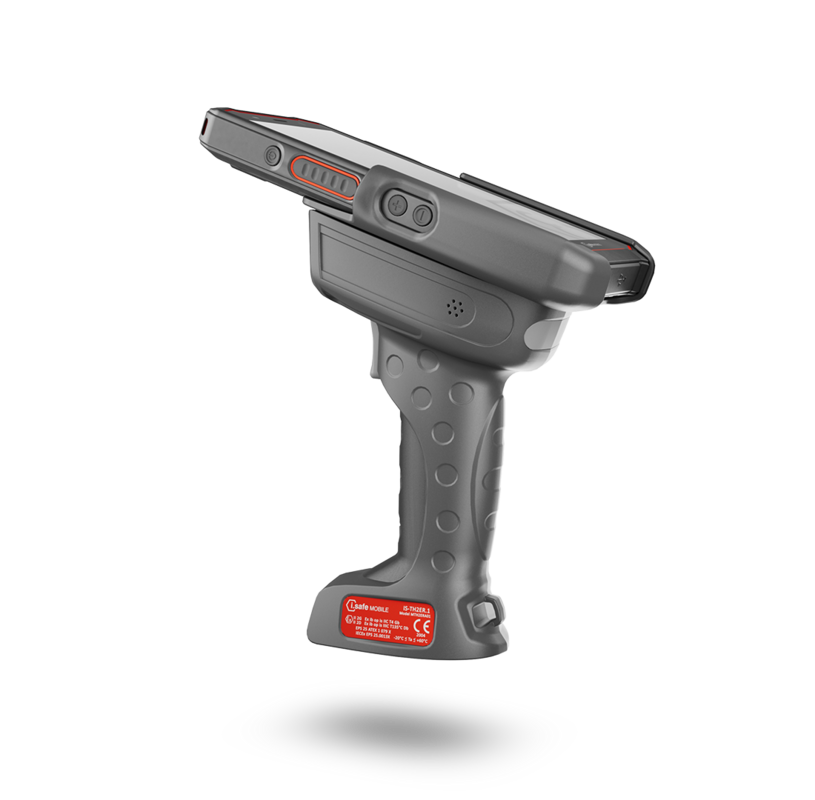

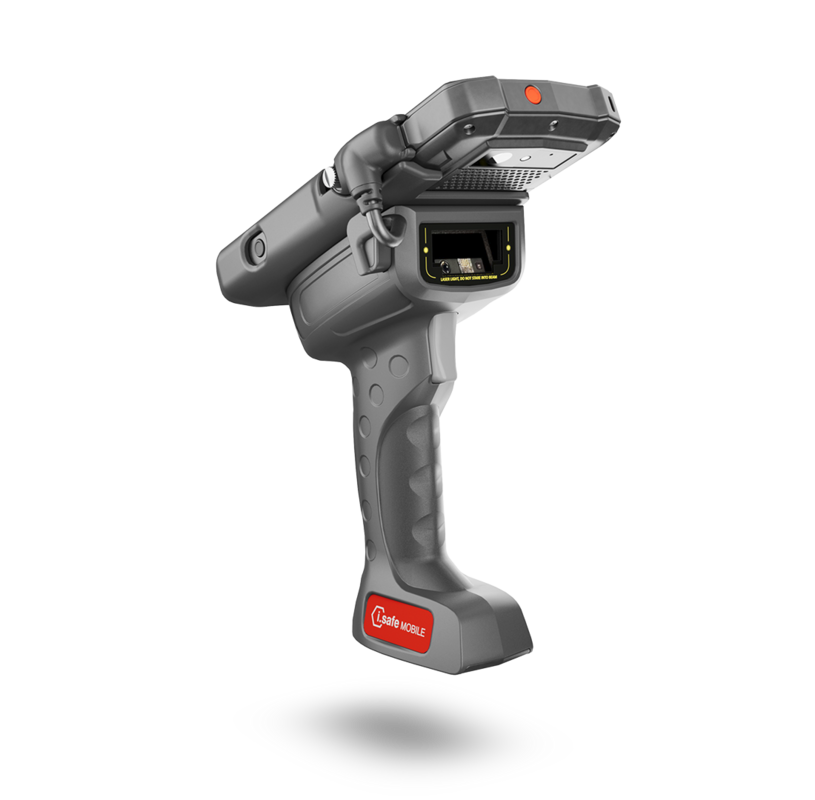

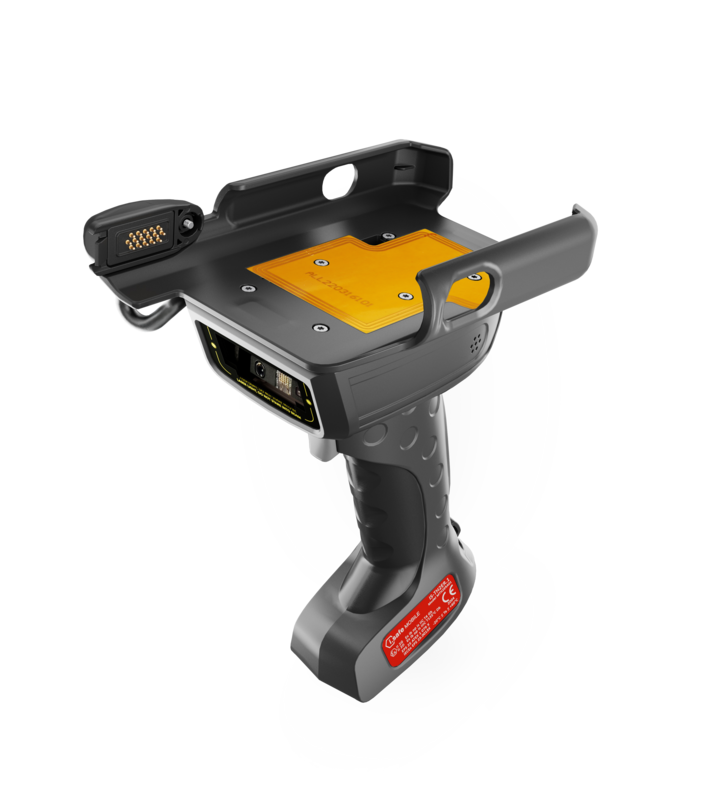

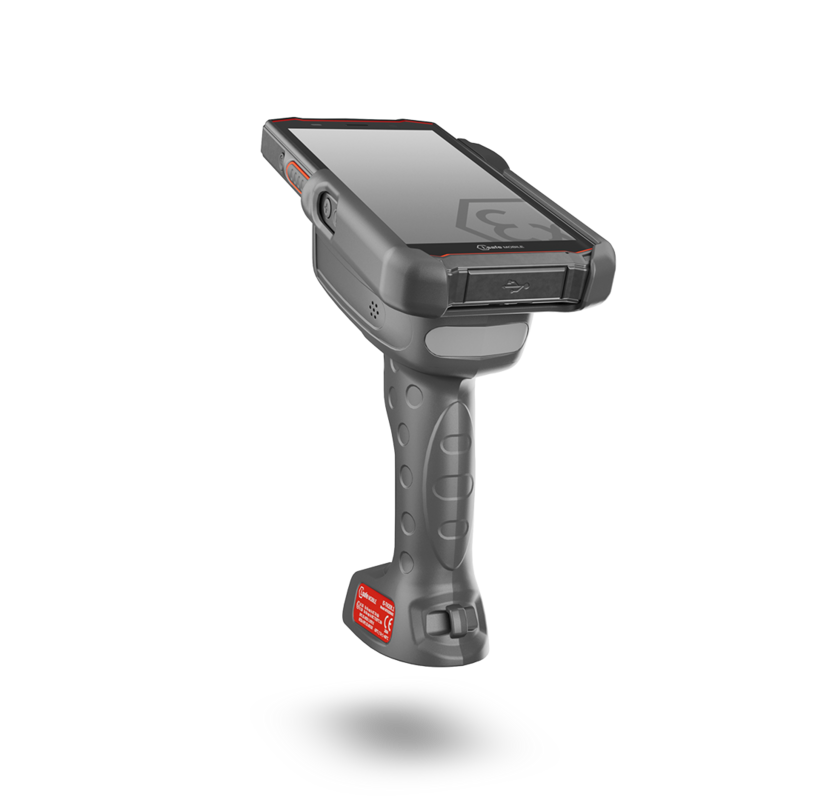

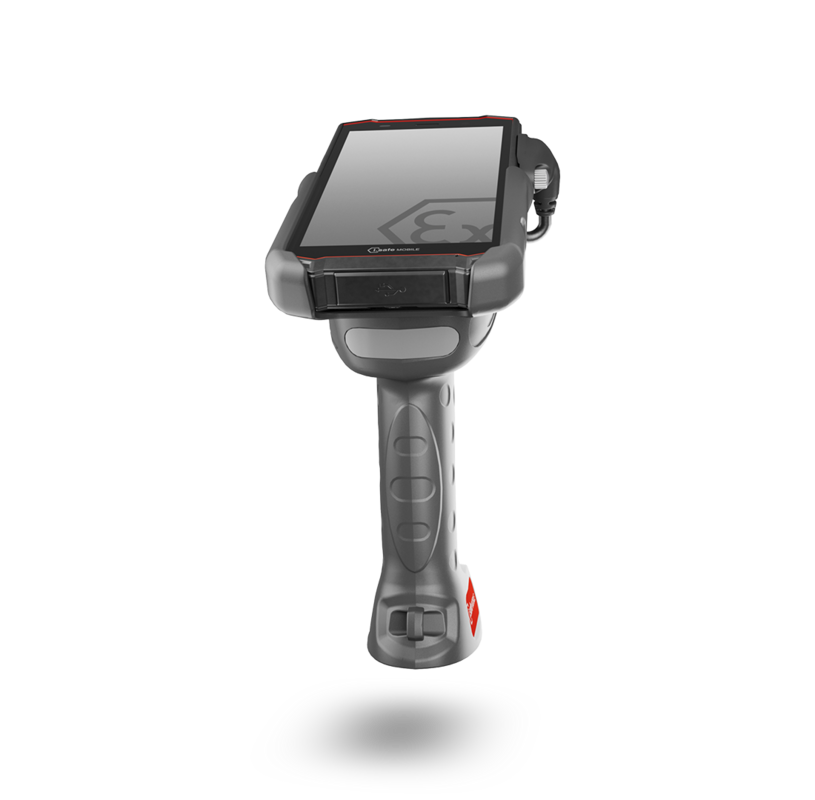

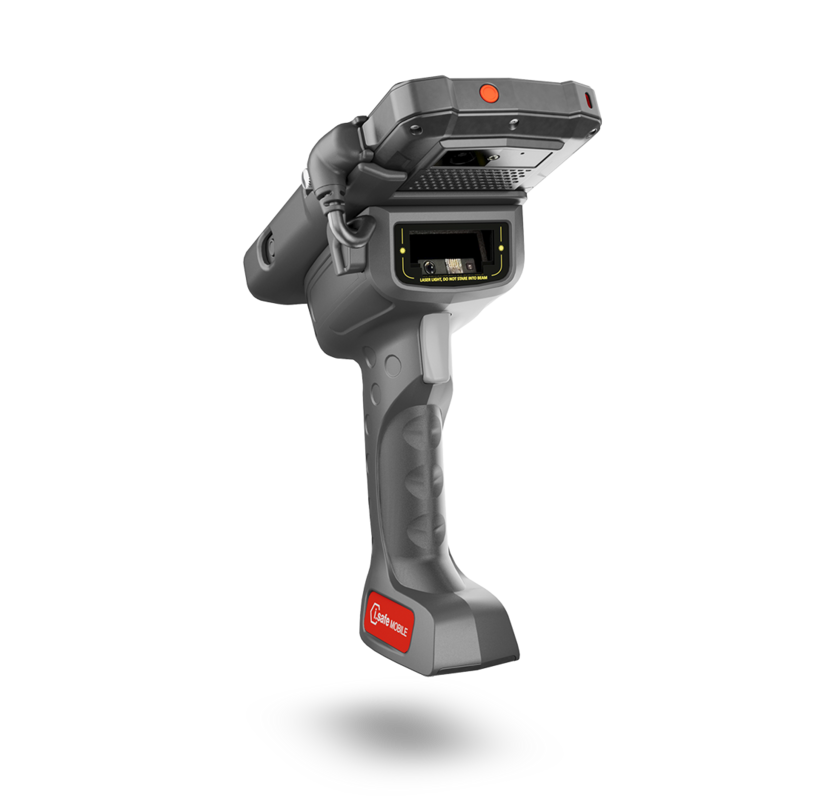

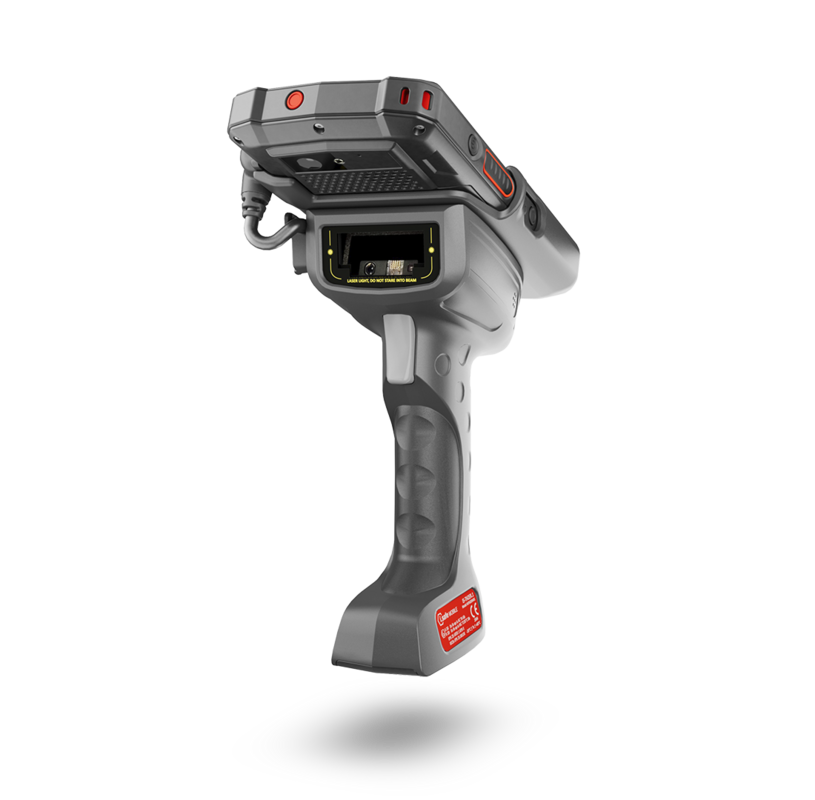

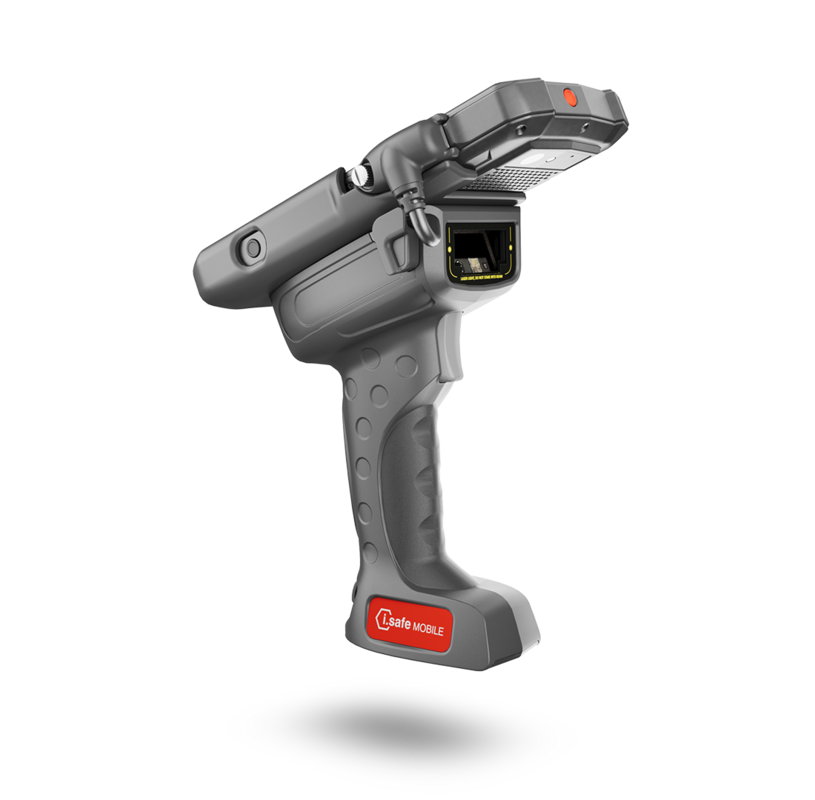

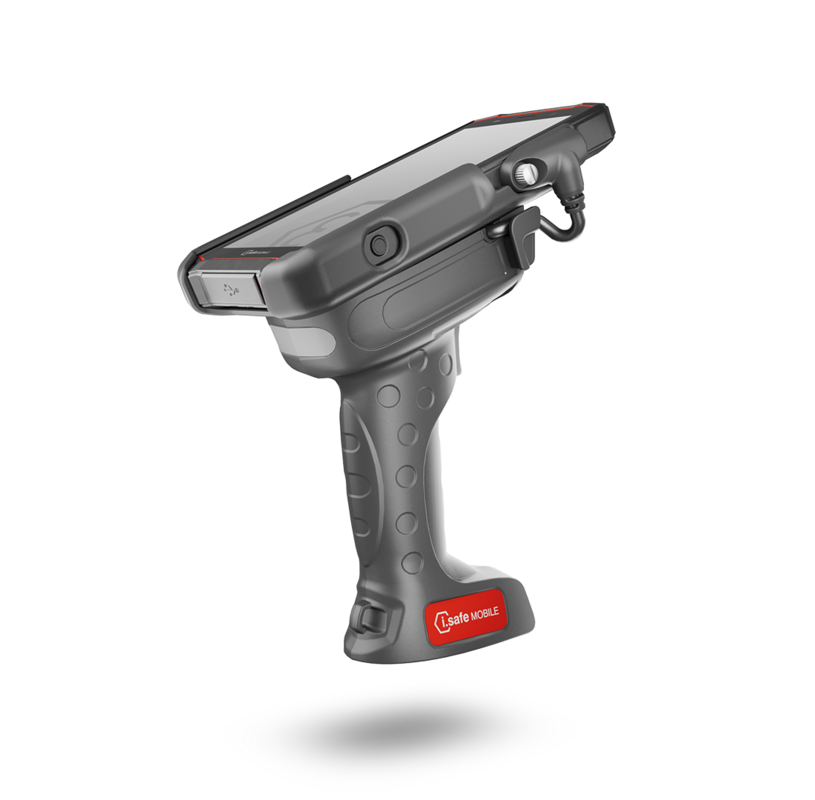

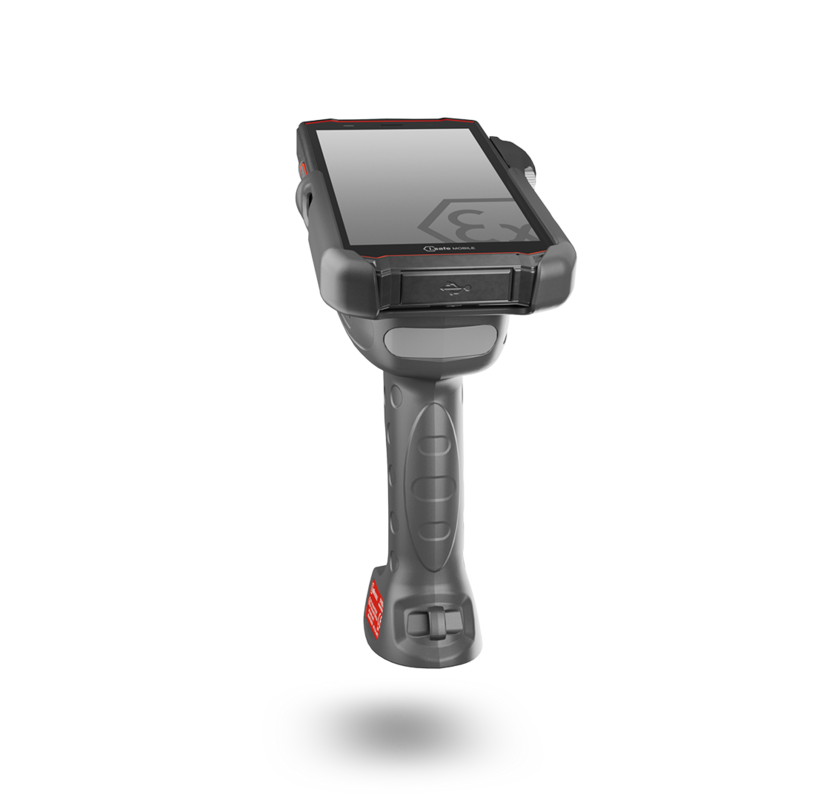

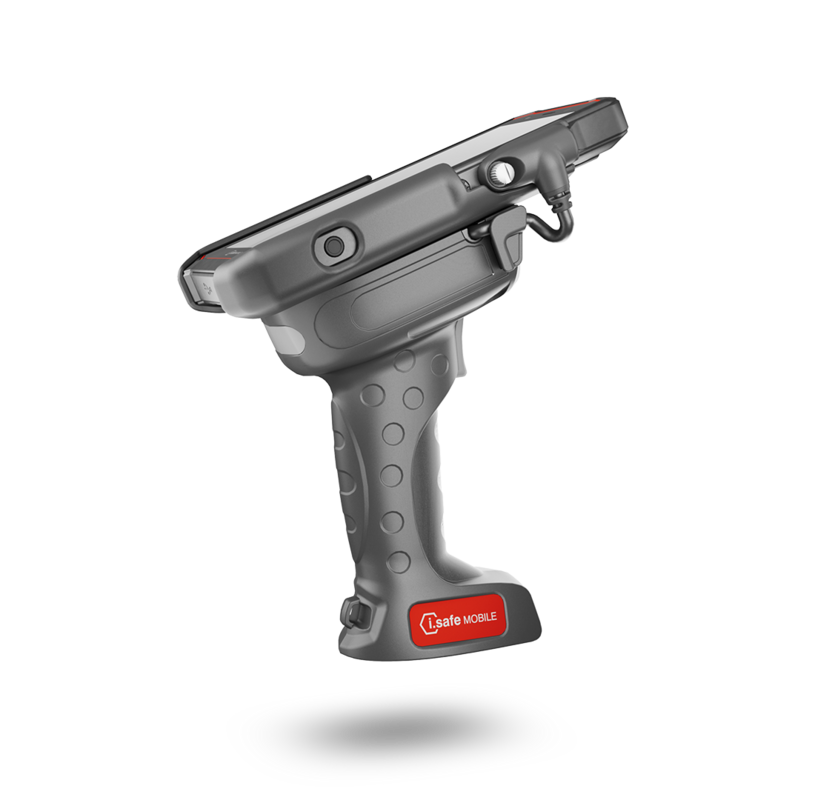

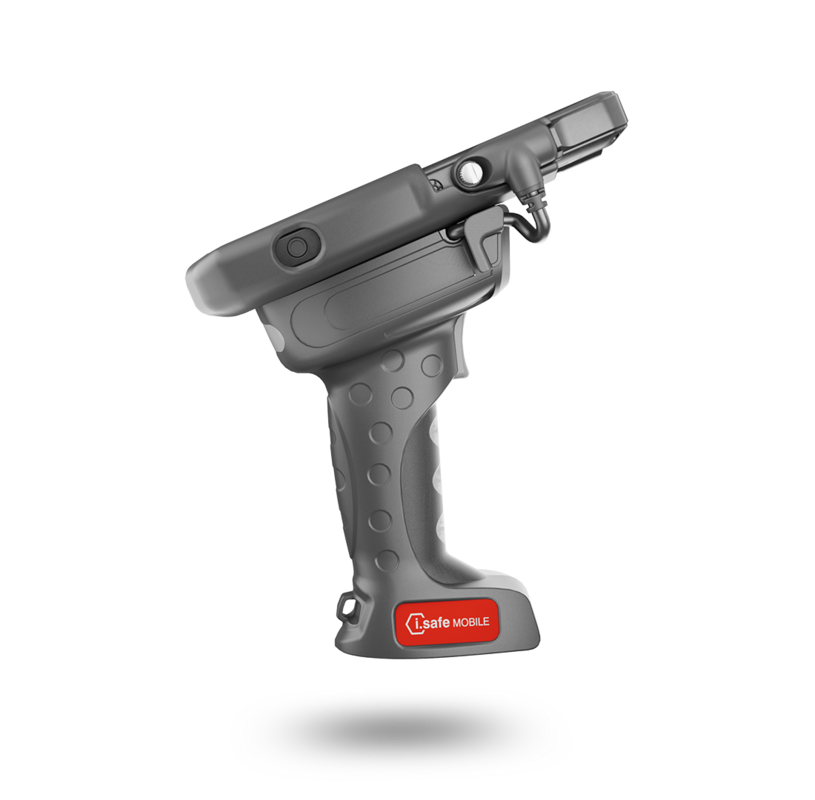

The innovative combination of IS-TH2ER.1 and the IS540.1 5G smartphone is approved for safe and uncomplicated use in Zone 1/21 hazardous industrial areas. With the Zebra SE55 scan engine and IntelliFocus™ technology, the scanner with new green aiming device enables an impressive reading range of up to 12 metres and the fast and reliable capture of 1D and 2D barcodes - even under difficult conditions such as dirty or damaged codes.
Advantages
- The IS-TH2ER.1 enables scans over up to 12 metres, ideal for applications in high-bay warehouses and large production areas.
- PRZM Intelligent Imaging technology and the green aimer, optimises barcode scanning even in difficult environment.
- Direct data transfer via multifunctional (ISM) interface
- Direct interface connection with the device, no Bluetooth® necessary
- Power supply via the connected device, therefore no battery necessary
Technical features
| Scan type options | ER (extended range) |
|---|---|
| Scan Engine | Zebra SE 55 |
| Working Range | ~5,6 cm bis ~12 m |
| Dimensions | Size: 192,3 x 95,84 x 146 mm Weight: 370 g |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
| Sensor resolution | 2688 x 1520 pixel |
Further features
Power supply over the connected mobile device
Barcode scanner
Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
Approvals
ATEX (Europe)
approved
approved
II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db
II 2D Ex ib op is IIIC T135°C Db
IECEx (International)
approved
approved
Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
Ex ib op is IIIC T135°C Db
NEC500 (North America)
applied for
applied for
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
Contents
Included
- Trigger Handle
- Safety Instructions
- Lanyard
- Screwdriver
