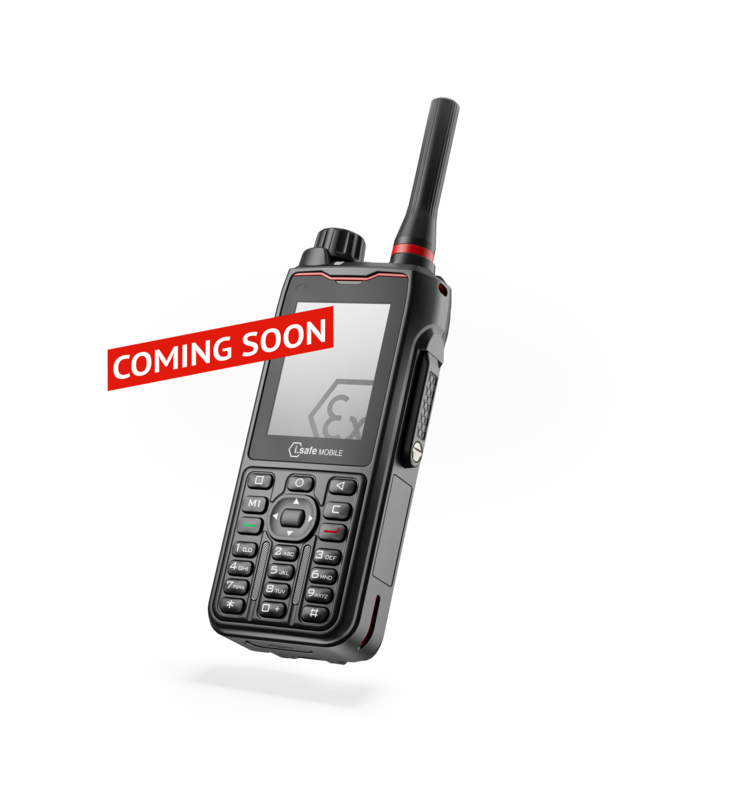

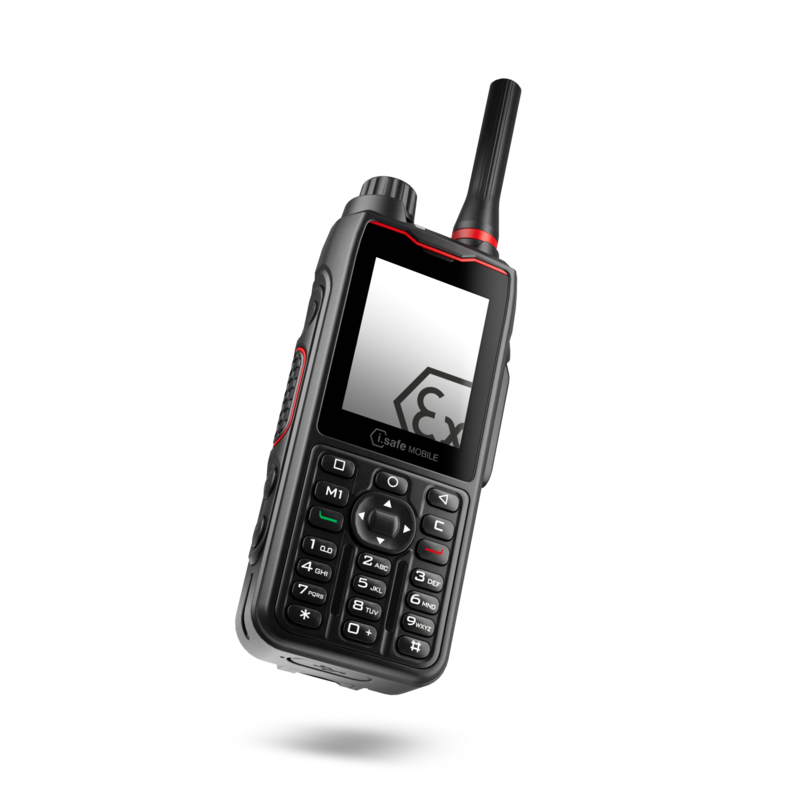

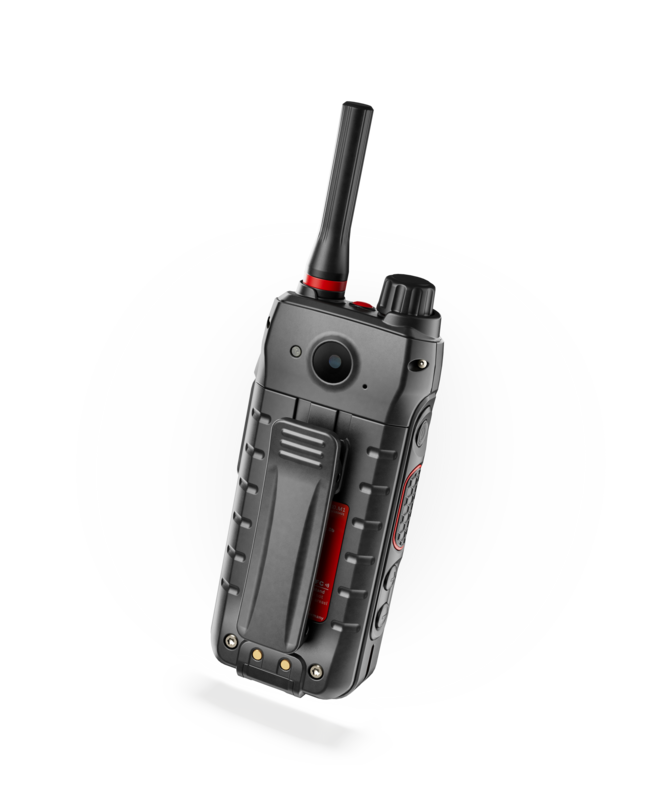

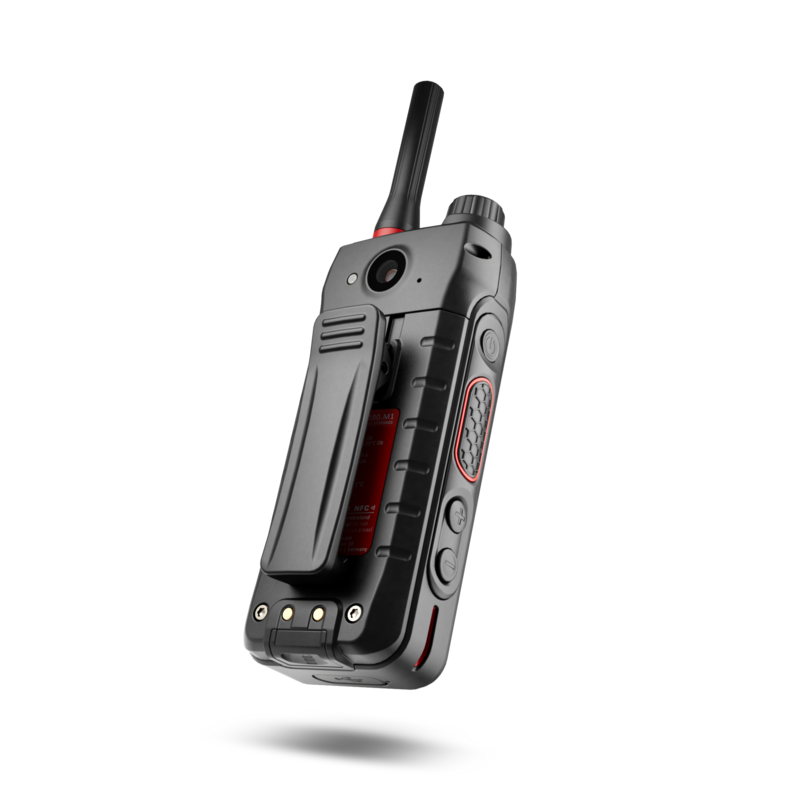

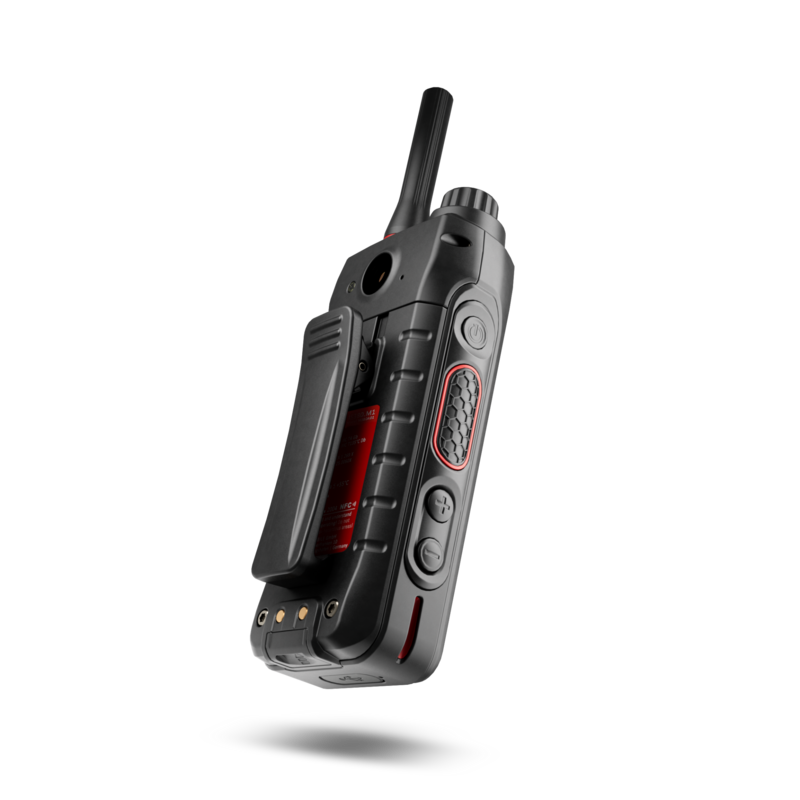

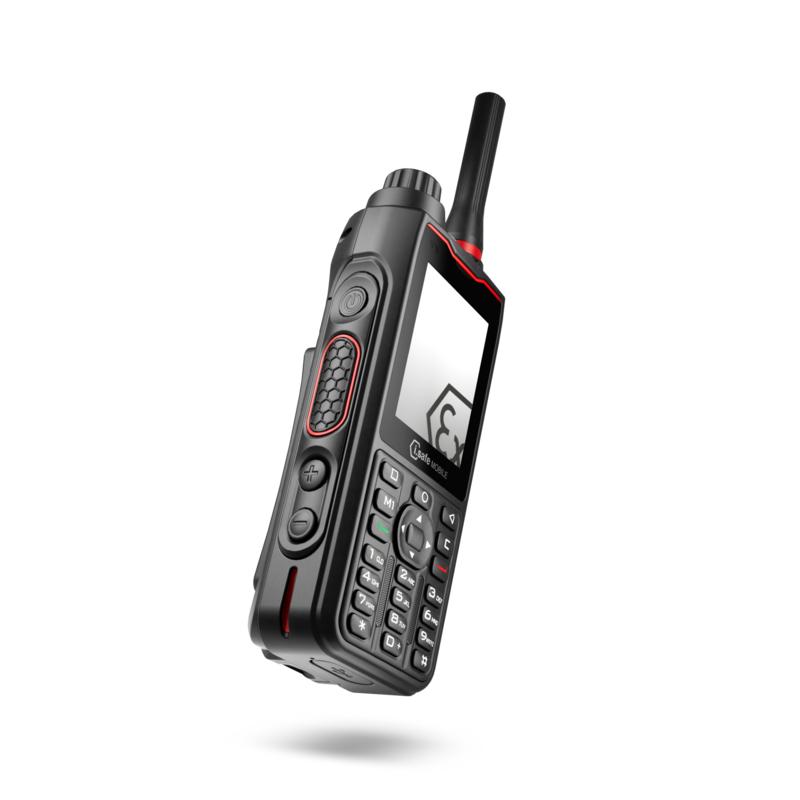

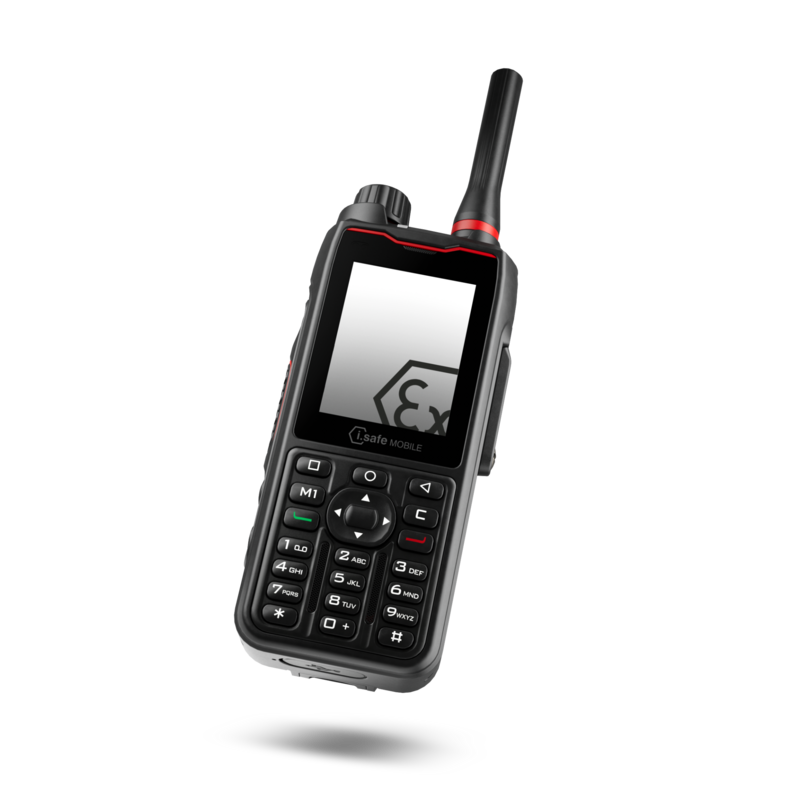

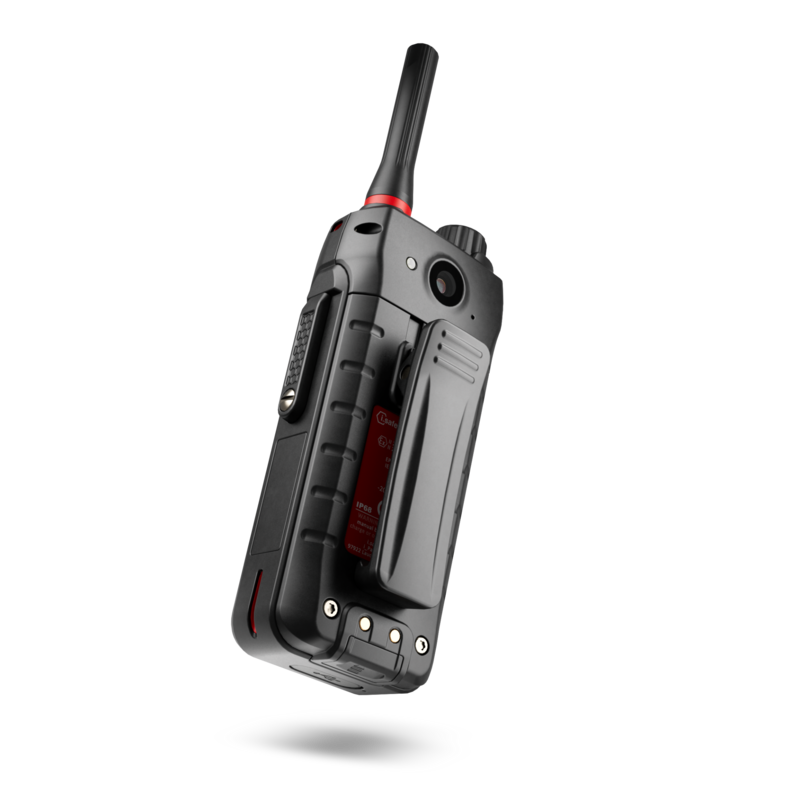

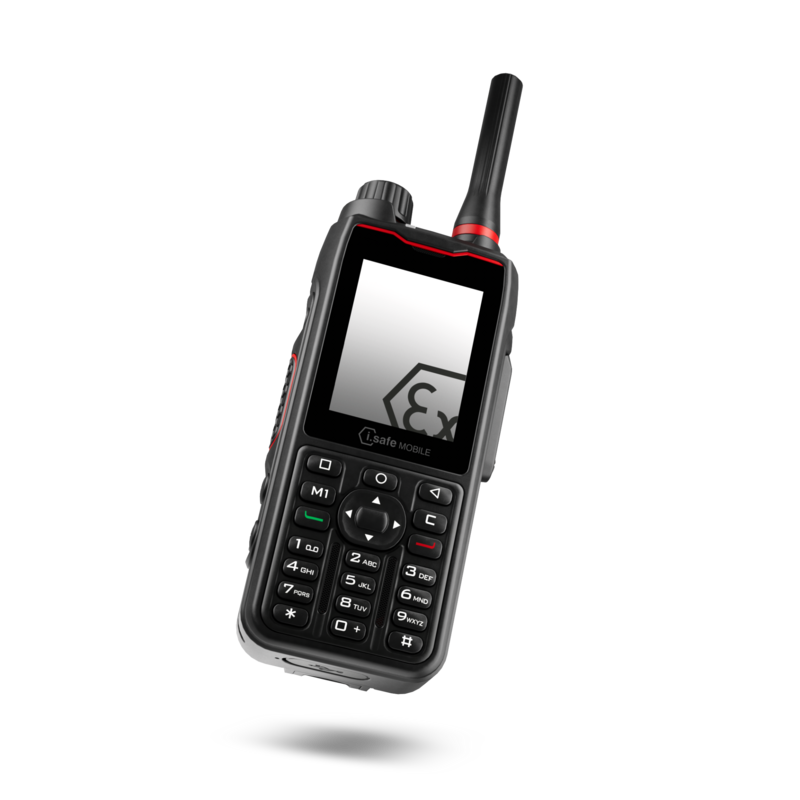

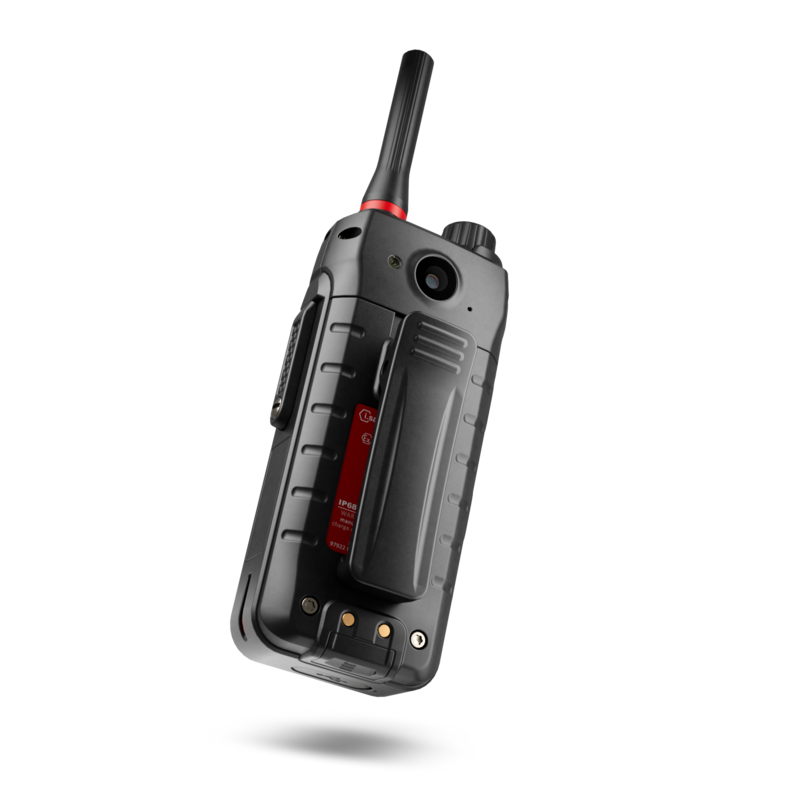

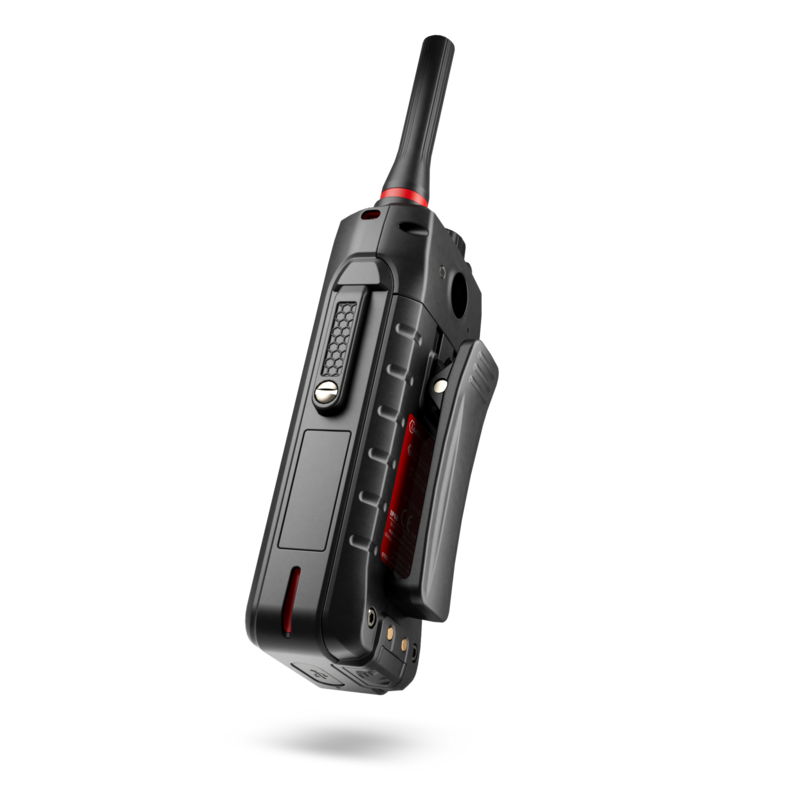

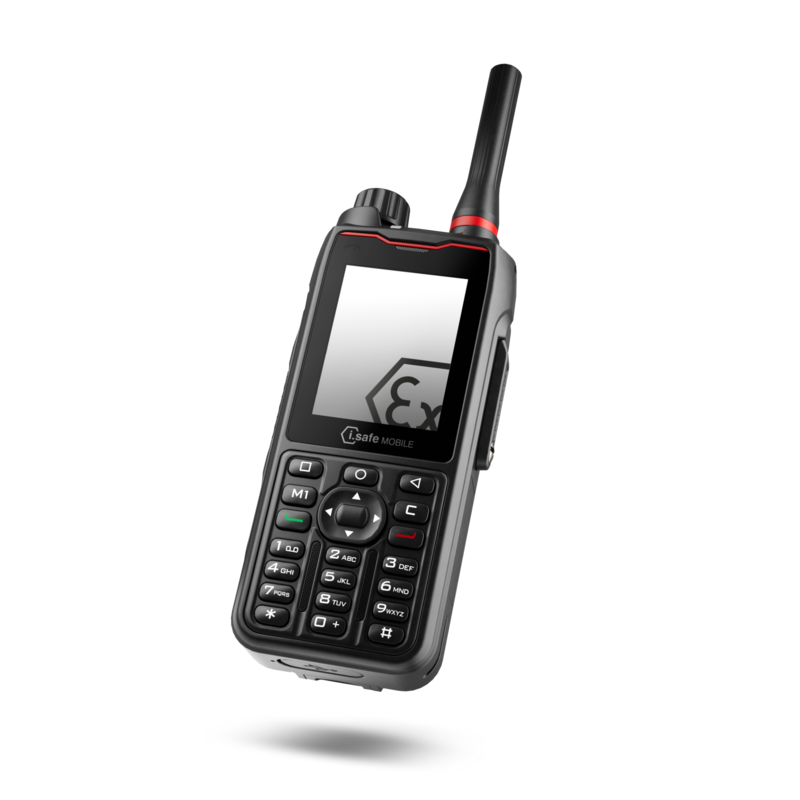

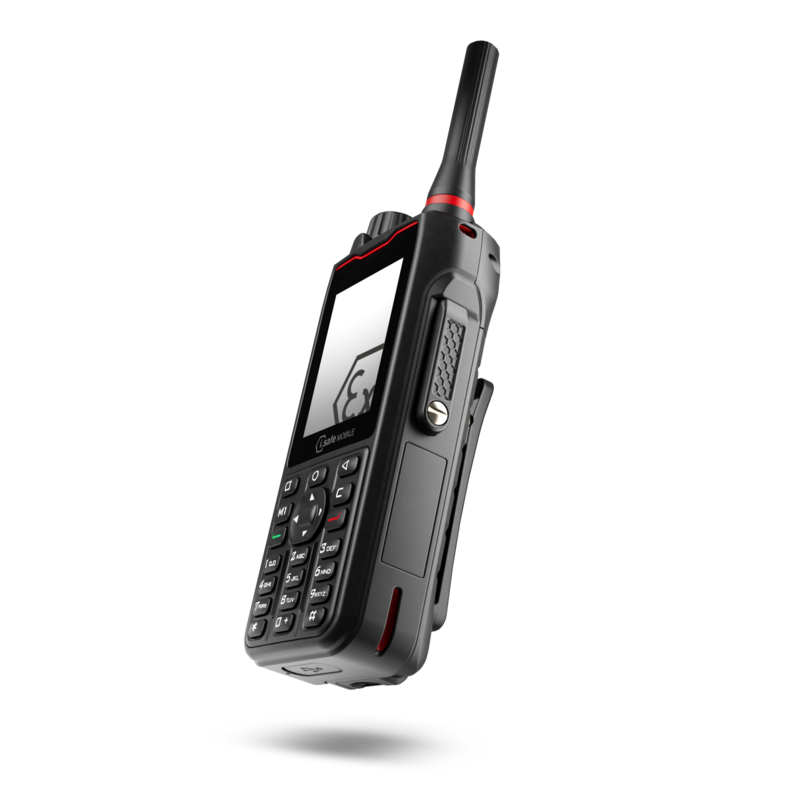

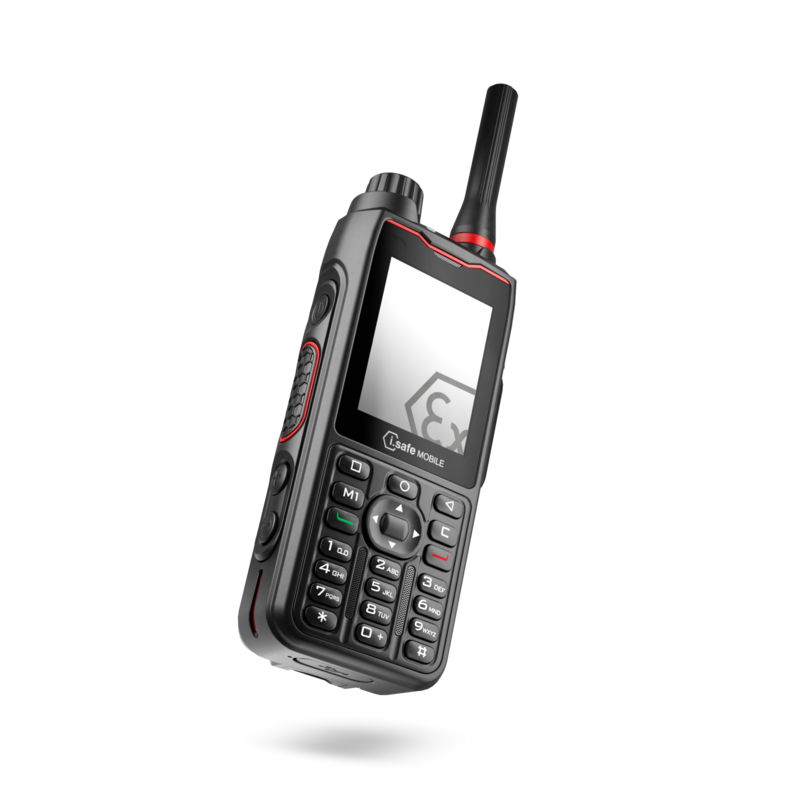

IS380.M1

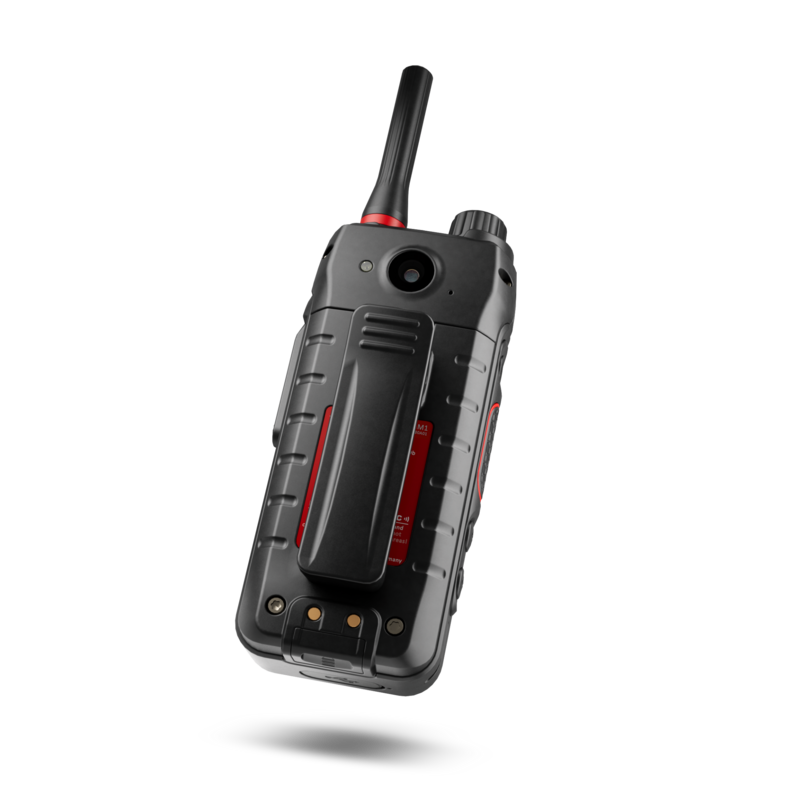

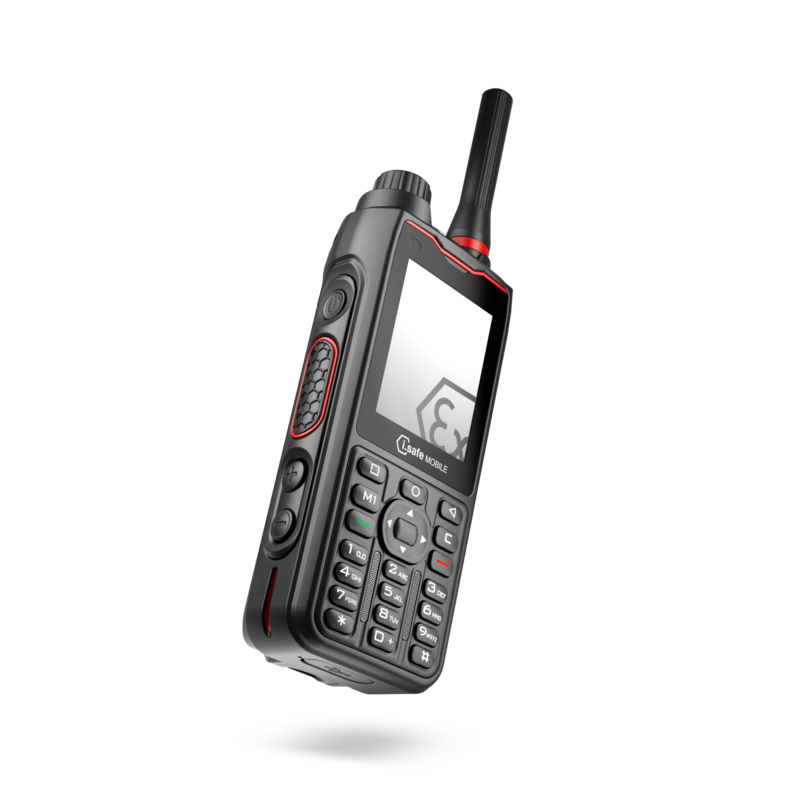

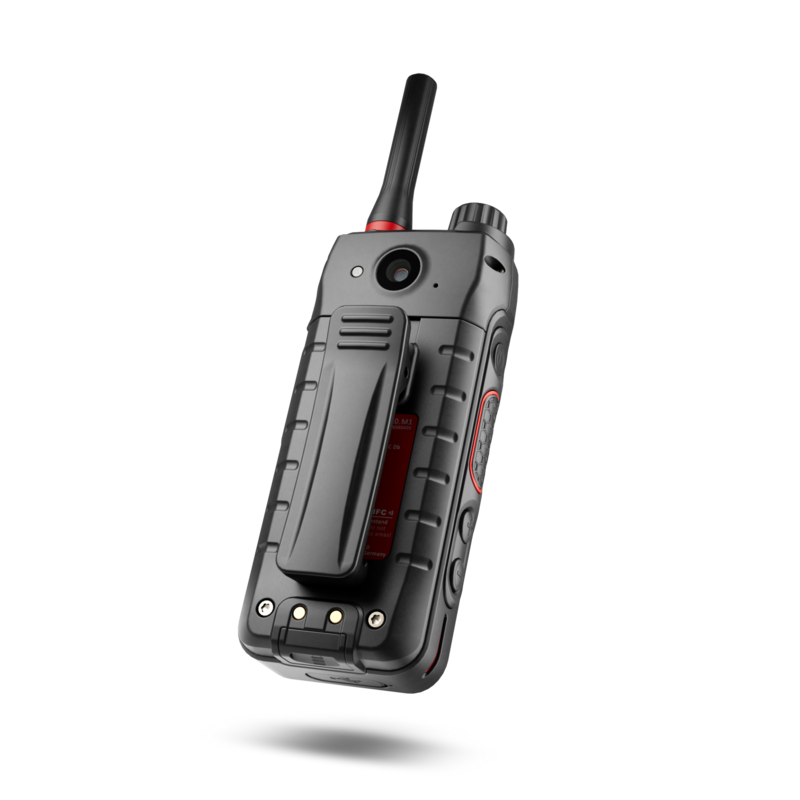

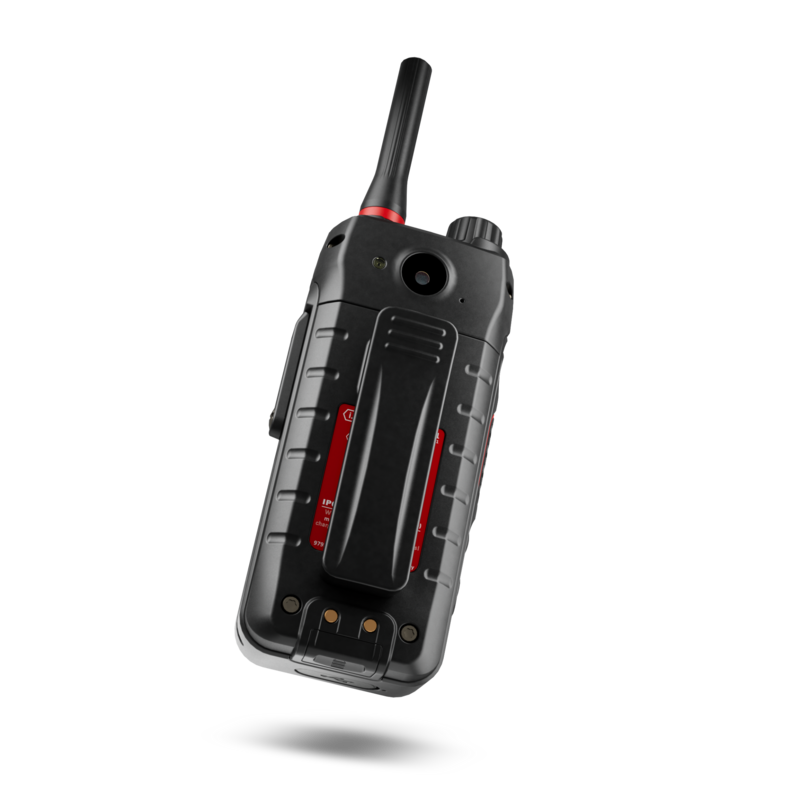

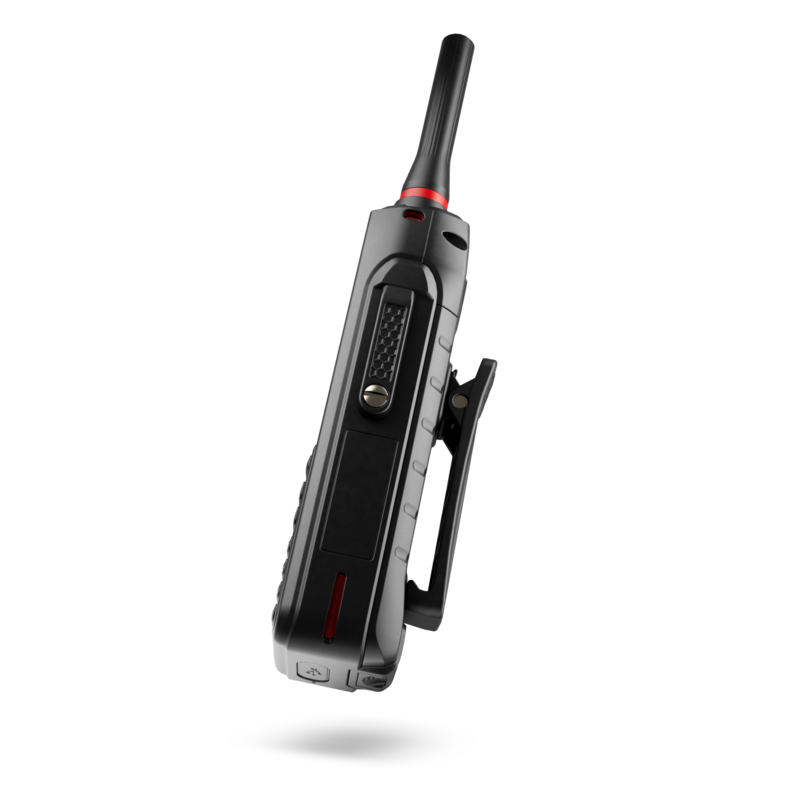

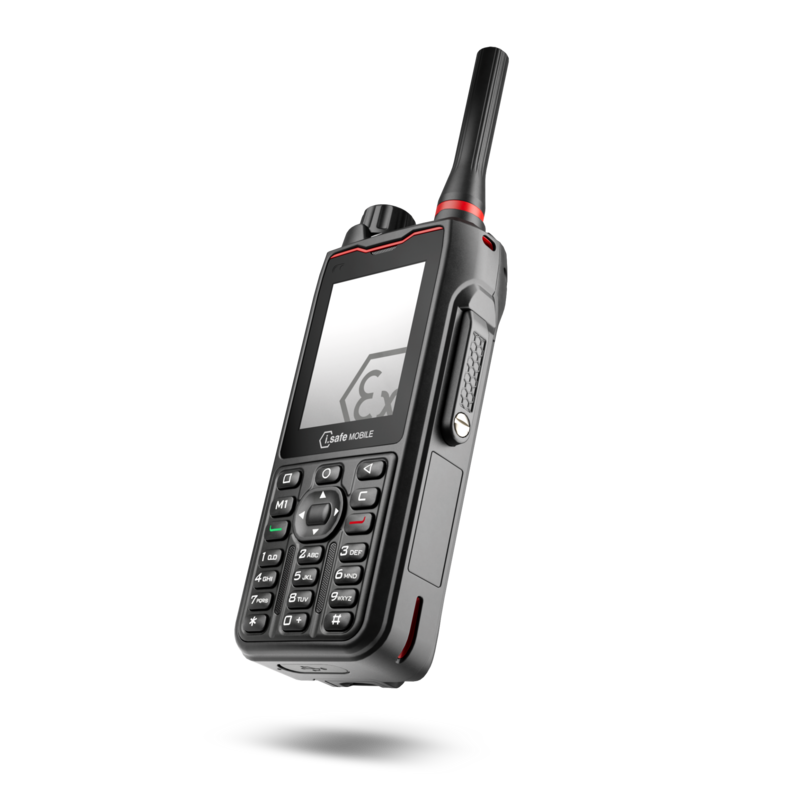

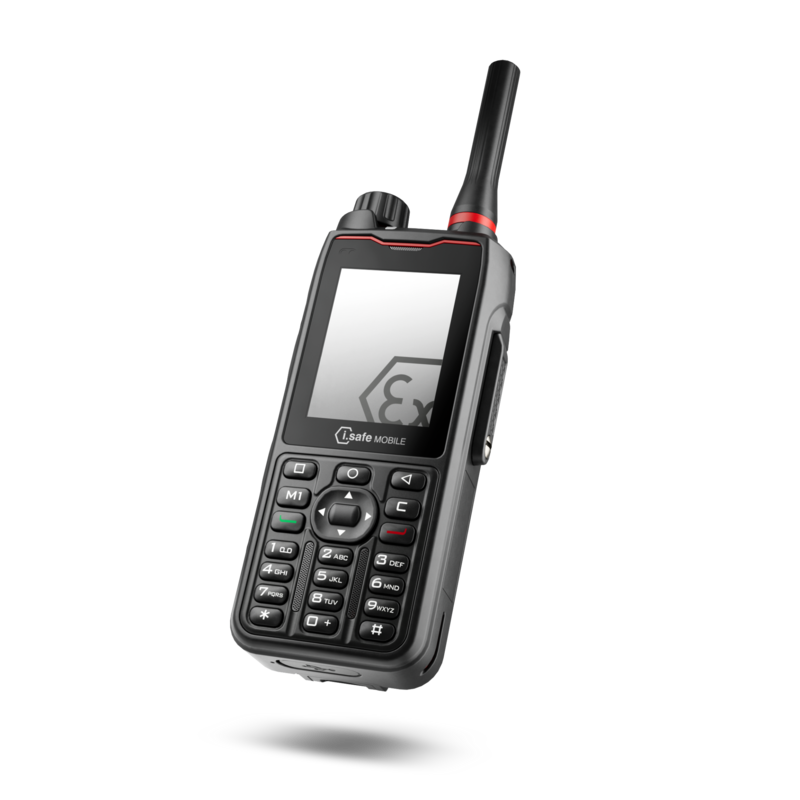

The cost-effective 4G radio seamlessly bridges the gap between traditional radio communication and modern mobile networks. It runs on the i.safe MOBILE operating system ISM-OS 16 (based on Android™). The IS380.M1 combines LTE-based communication with the operating concept of a traditional two-way radio. With compatible applications and network infrastructure, the device offers functions such as Push-to-Talk over Cellular and Mission Critical Push-to-Talk in addition to conventional telephony mode. The 4G radio features a familiar radio design with a large side-mounted PTT button, rotary switch for channel selection or volume control, front-facing large and amplified loudspeaker, 13-pin ISM audio interface, and replaceable battery. The i.safe MOBILE App World comes pre-installed on the device.
Advantages
- Android-based 4G radio - combines telephony and push-to-talk (PTT) in one handy device
- Familiar two-way radio design - enables easy transition from classic radios to the IS380.M1

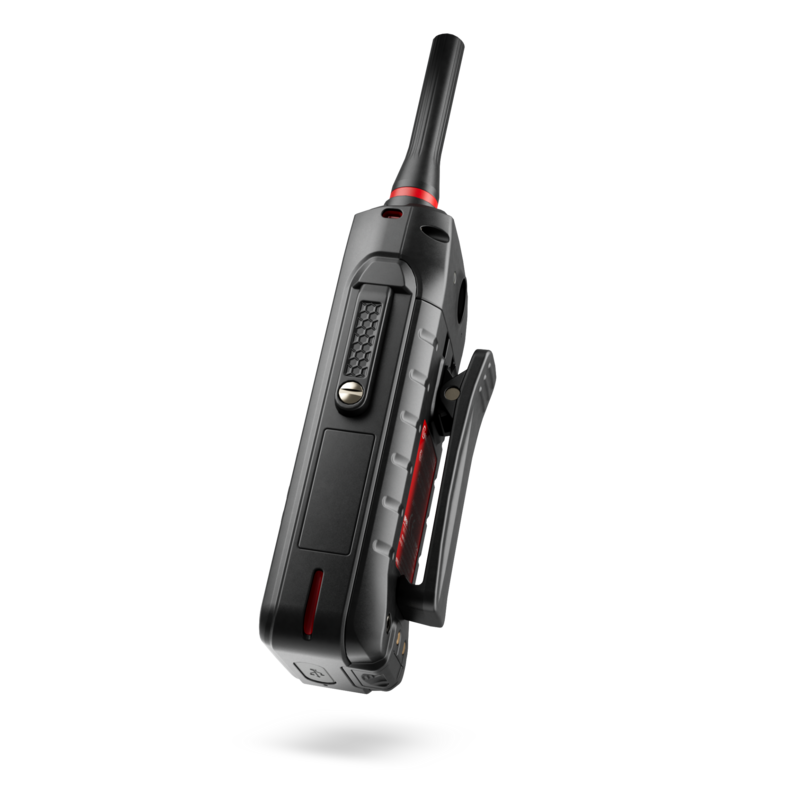

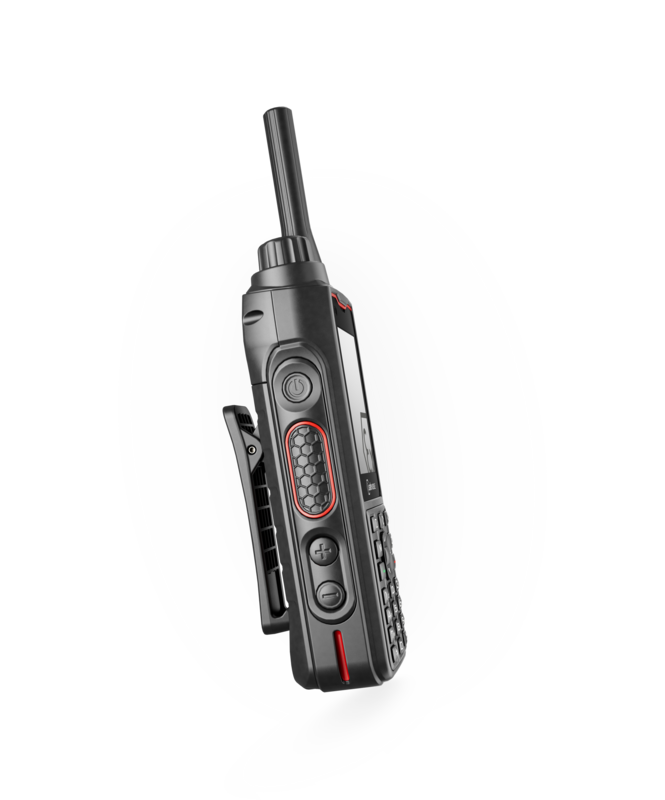

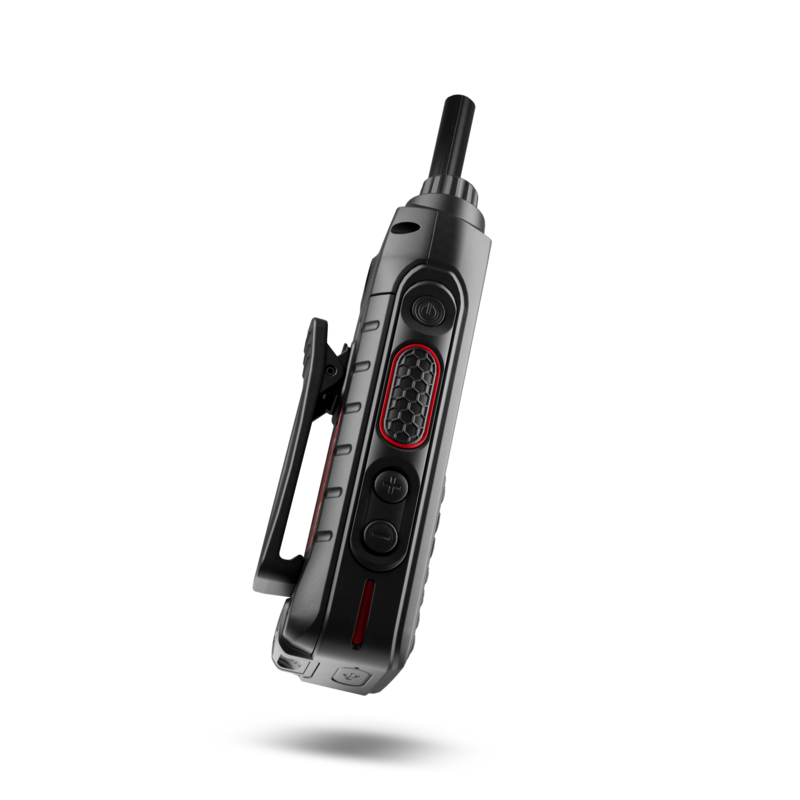

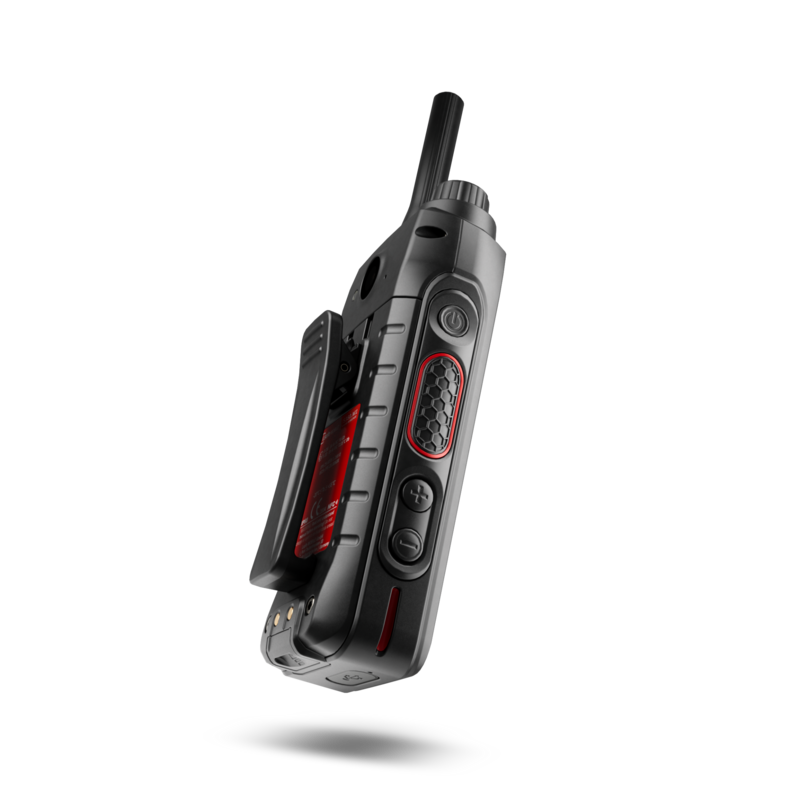

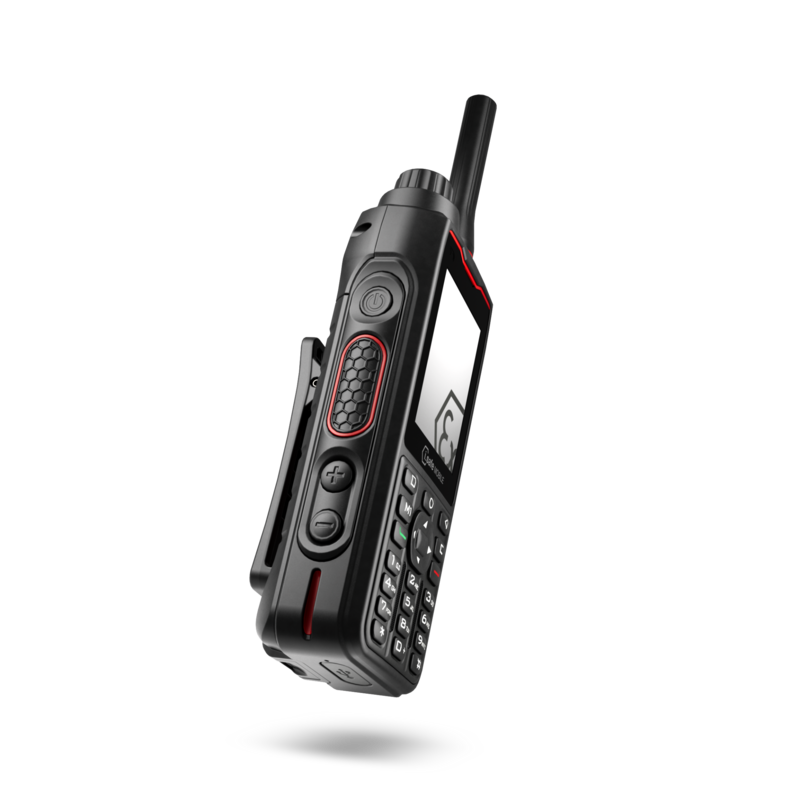

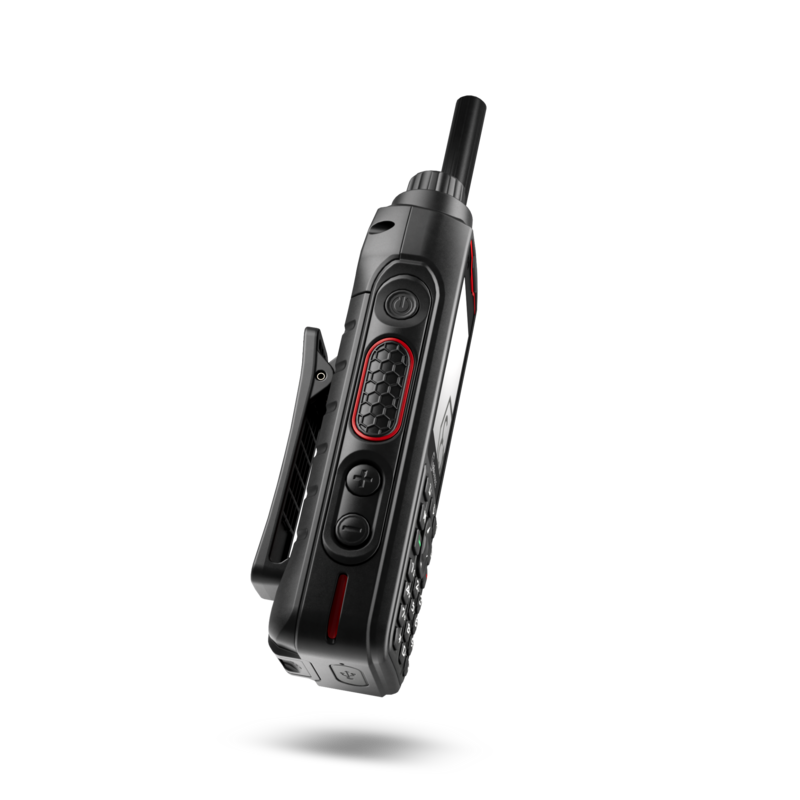

- Large side button for PTT - perfect feel and ease of use

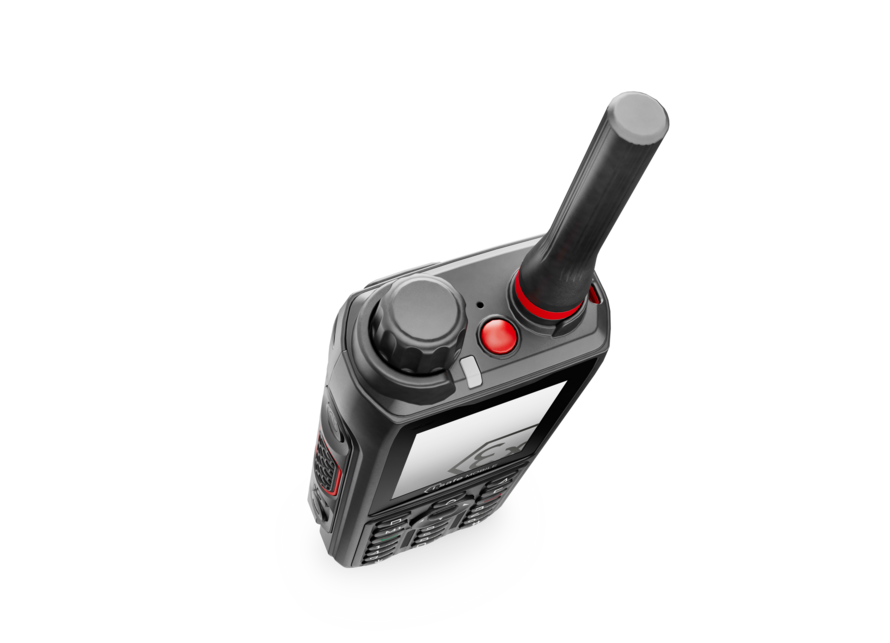

- Rotary switch for channel selection or volume control - enables quick and safe handling
- Front-faced, large & amplified loudspeaker - improves speech intelligibility, especially in noisy environments
- 13-pin ISM audio interface - supports various professional accessories like headsets and other audio accessories for noisy environments
- Replaceable battery - enables continuous operation readiness
- System integrated i.safe MOBILE App World - enables the use of certain applications for PTT & LWP
Technical features
| Operating system | ISM-OS 16 |
|---|---|
| Processor | Qualcomm® Snapdragon 662 Octa Core |
| Memory | 8 GB RAM | 64 GB internal memory |
| Frequencies |
2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28A/B28B/B29/B30/B71 4G LTE-TDD: B38/B34/B39/B40/B41 |
| Dimensions | Size: 138 x 60 x 32 mm | Weight: 359 g |
| Display | 2,4" (6,096 cm) Corning® Gorilla® Glass V3 |

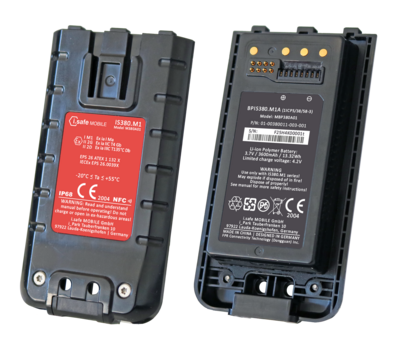

| Battery | 3600 mAh | replaceable |
| Camera | 13 MP AF rear |
| Connectivity |
Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h Bluetooth® 5.1 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
| Types of protection | IP68 dust-/waterproof | MIL-STD 810H | Usable from -20 °C to +55 °C |
Further features
Function key red (function key assignable for different 3rd party application; e.g. loneworker protection)
Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
Dual-SIM (Nano-SIM + eSIM)

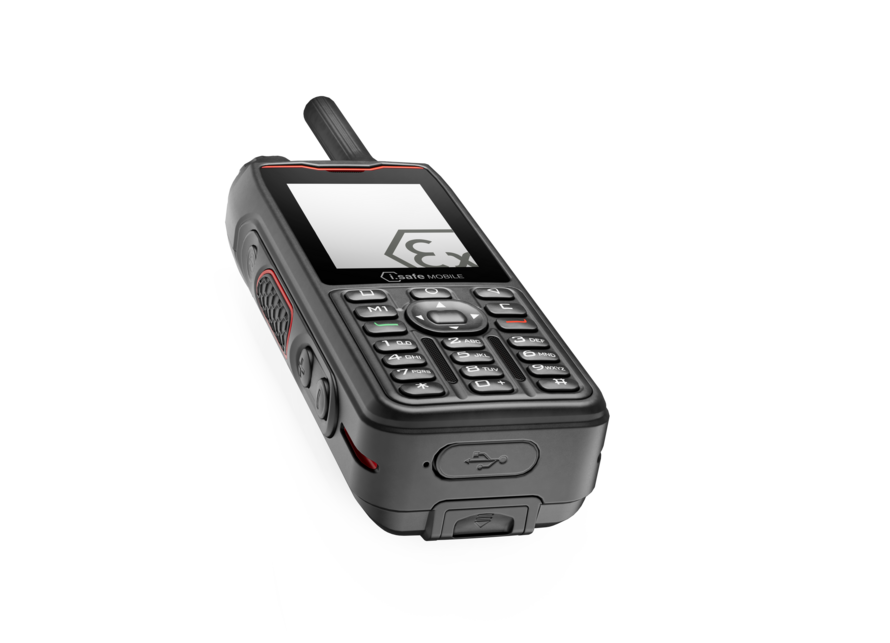

USB-C, Desktop Charger, Multi Charger
Approvals
approved
I M1 Ex ia I Ma
II 2G Ex ia IIC T4 Gb
II 2G Ex ia IIIC T135°C Db
approved
Ex ia I Ma
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
Contents
- 4G Radio
- Battery
- USB-C Cable
- Power supply unit universal
- Antenna + colour coding set
- Belt Clip
- Screwdriver
- Display Protection Foil
- Safety Instructions
