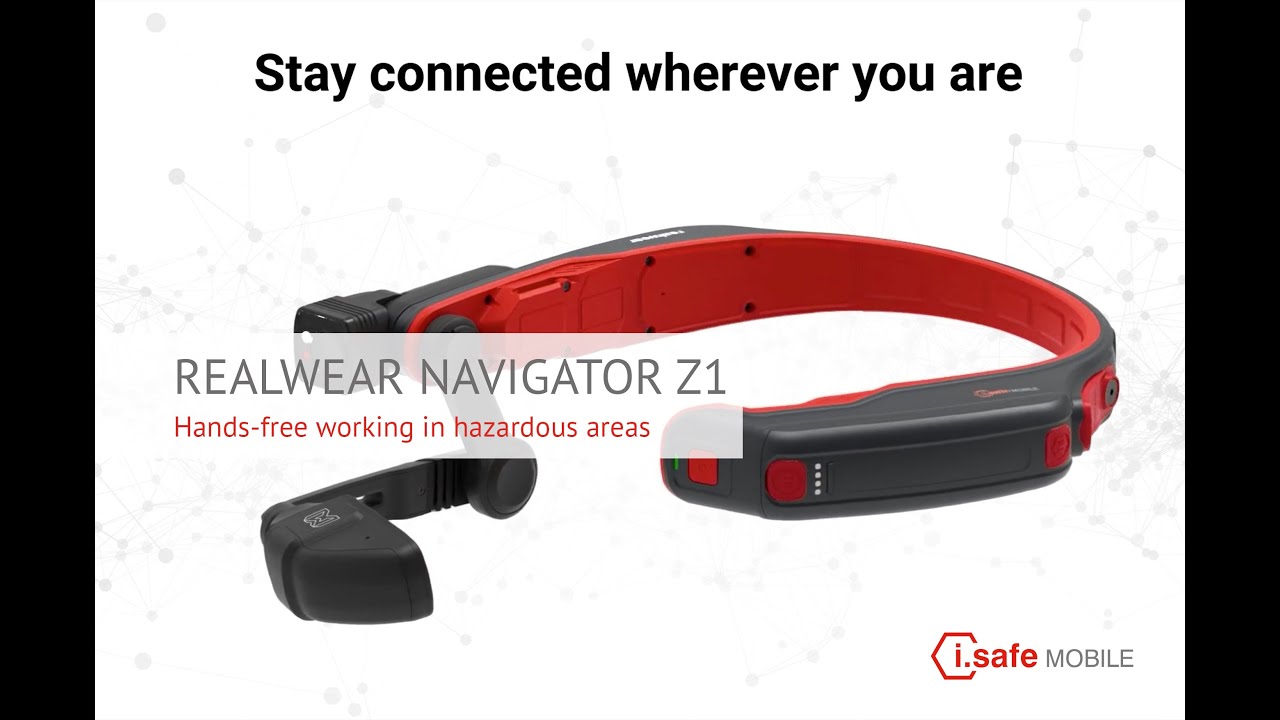

REALWEAR NAVIGATOR Z1
The world's most advanced intrinsically safe head-mounted wearable with intuitive voice control for completely hands-free operation during remote training and support, field service management tasks and site inspections, suitable for noisy environments of up to 100 dBA. The Android™-based smart glasses are equipped with a powerful chipset with AI engine, a high-resolution display, a 48 MP visual camera and a Teledyne FLIR Thermal Camera Module. The Thermal Camera Module is compatible with the FLIR Thermal Suite for viewing radiometric photos, with temperature readings built-in to the image.
Advantages
- Digital microphones with active noise cancellation for noisy work environments
- Clear, well arranged operation through high-resolution microdisplay
- Powerful 48 MP camera with outstanding recording quality for optimum documentation in both still and moving images
- Teledyne FLIR Thermal Camera Module for radiometric photos, built-in to the image.
Technical features
| Dimensions | Weight: 383 g |
|---|---|
| Sampling rate | 8,7 Hz |
| Anschlussmöglichkeiten (generierung) | 3,5 mm Kophöreranschluss USB Typ C |
| Connection options (headphones, USB, accessories, ...) | USB Typ C |
| Battery | 2550 mAh, 3,7 V replaceable |
| Operating system | Android™ 12 (AOSP) + WearHF™ hands-free interface |
| Camera | 48 MP AF front |
| Processor | Qualcomm® QCS6490 |
| Types of protection | IP66 MIL-STD 810H Usable from -20 °C to +55 °C |
| Sensor type | FLIR Lepton® 3.5 |
| Field of view (DFOV) ° | 71 |
| Field of view (HFOV) ° | 57 |
| Memory | 8 GB RAM 128 GB internal memory |
| Spectral range | 8 - 14 |
| Temperature detection from (°C) | -10 |
| Temperature detection up to (°C) | 400 |
| Temperature accuracy | ±5 °C oder 5 % (typisch) ±10 °C oder 10 % (typisch) |
| Thermal resolution | 160 x 120 |
| Thermal Sensitivity | <50 mK |
| Connectivity | Bluetooth® 5.2 GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS |
| Video (pixel & bitrate) | 1080 p @ 60 fps |
Further features
Amplified loudspeaker
Available languages: German, English, French, Spanish, Italian, Portuguese, Chinese, Turkish, Czech, Dutch, Russian, Norwegian, Danish, Polish, Indonesian, Japanese, Korean, Thai
Approvals
ATEX (Europe)
approved
approved
I M1 Ex ia I Ma
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T200°C Db
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T200°C Db
IECEx (International)
approved
approved
Ex ia I Ma
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
UKEX (United Kingdom)
approved
approved
I M1 Ex ia I Ma
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T200°C Db
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T200°C Db
QPS (Northern America)
approved
approved
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T200 °C
Class III
Class II Div. 1 Groups E, F, G, T200 °C
Class III
IA (South Africa)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
Ex ib IIIC T200°C Db
INMETRO (Brasil)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
Ex ib IIIC T200°C Db
PCEC (China)
approved
approved
Ex ib II C T4 Gb
Ex ib IIIC T200°C Db
Ex ib IIIC T200°C Db
TIIS (Japan)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T200°C Db
Ex ib IIIC T200°C Db
KCs (South Korea)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIC T200°C Db
Ex ib IIC T200°C Db
Contents
Included
- REALWEAR NAVIGATOR Z1
- Battery
- i.safe PROTECTOR 2.0
- Carrying Case
- Tri-Band Strap REALWEAR NAVIGATOR Z1
- Screwdriver
- Safety Instructions
