Smartphone industry

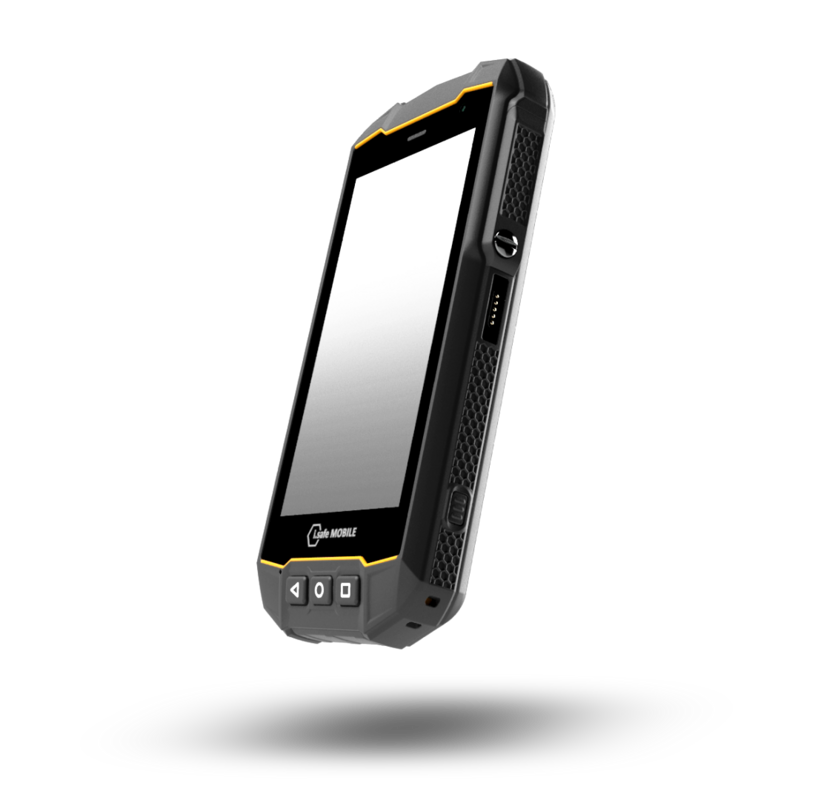

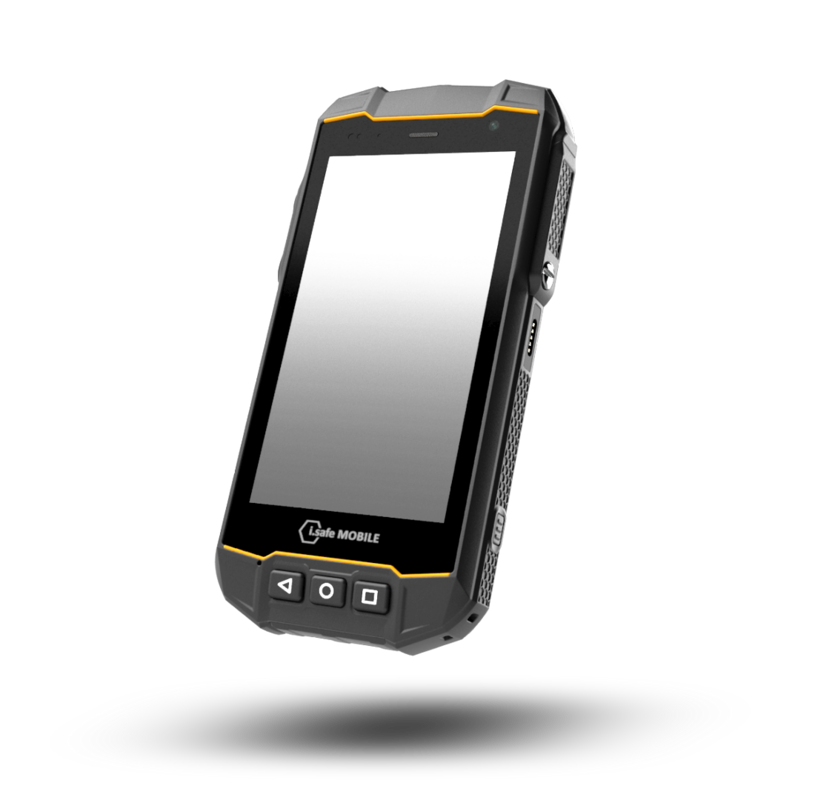

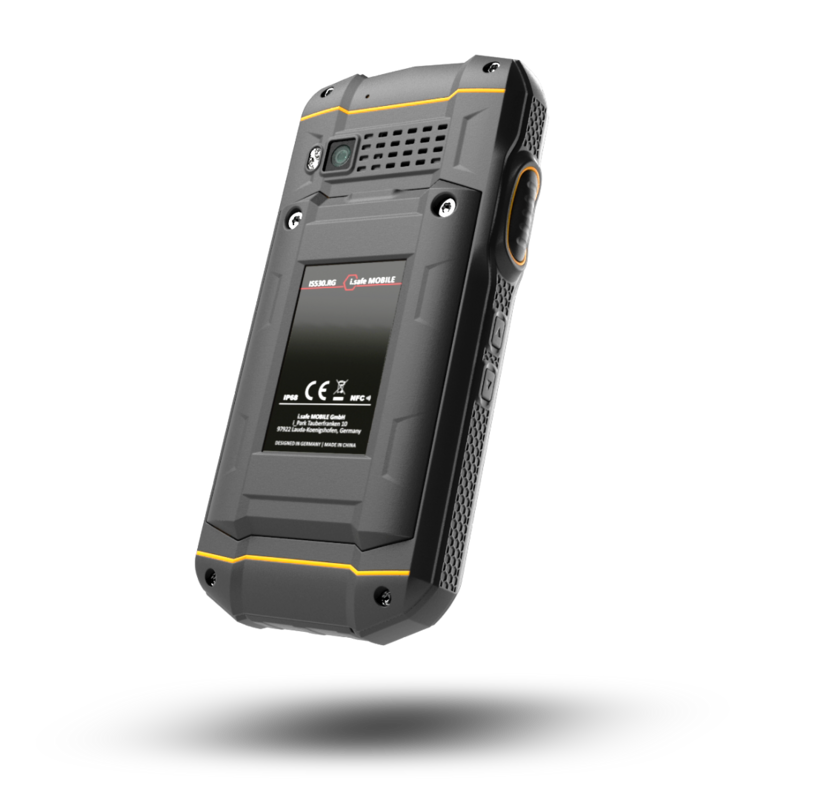

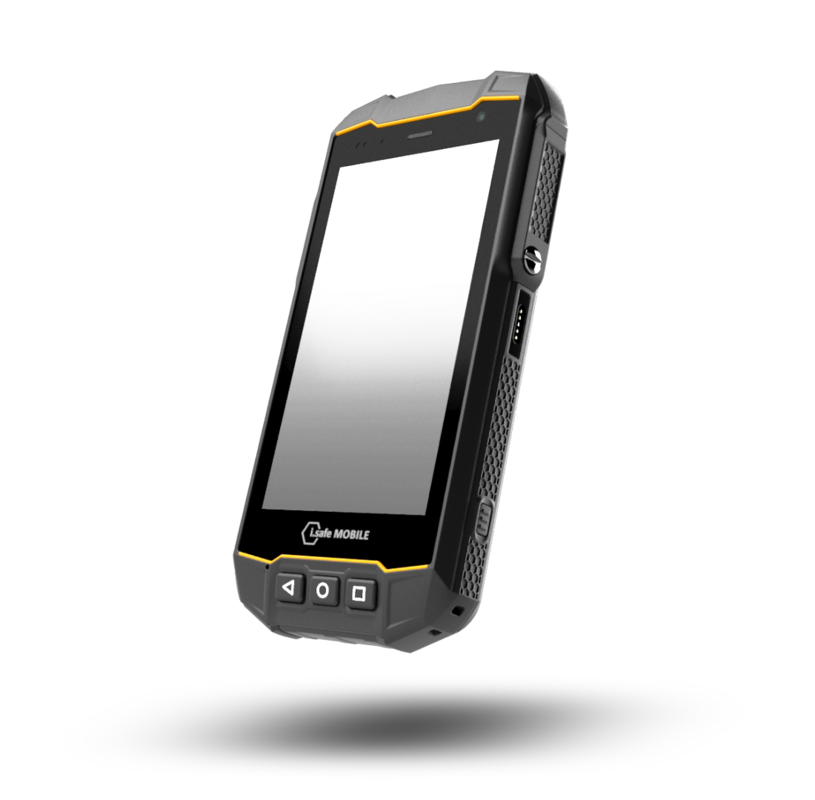

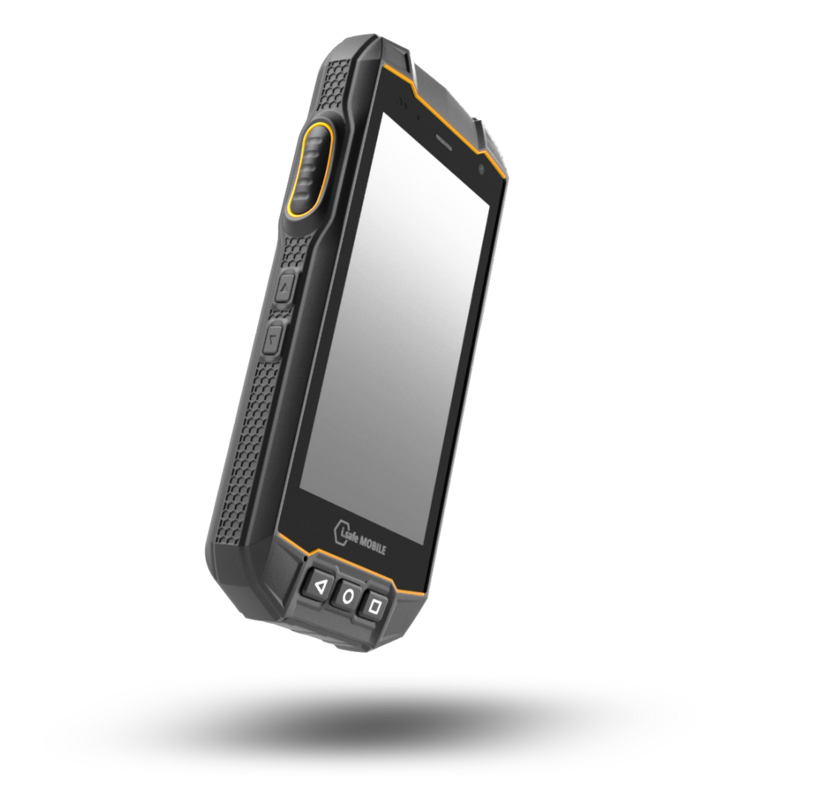

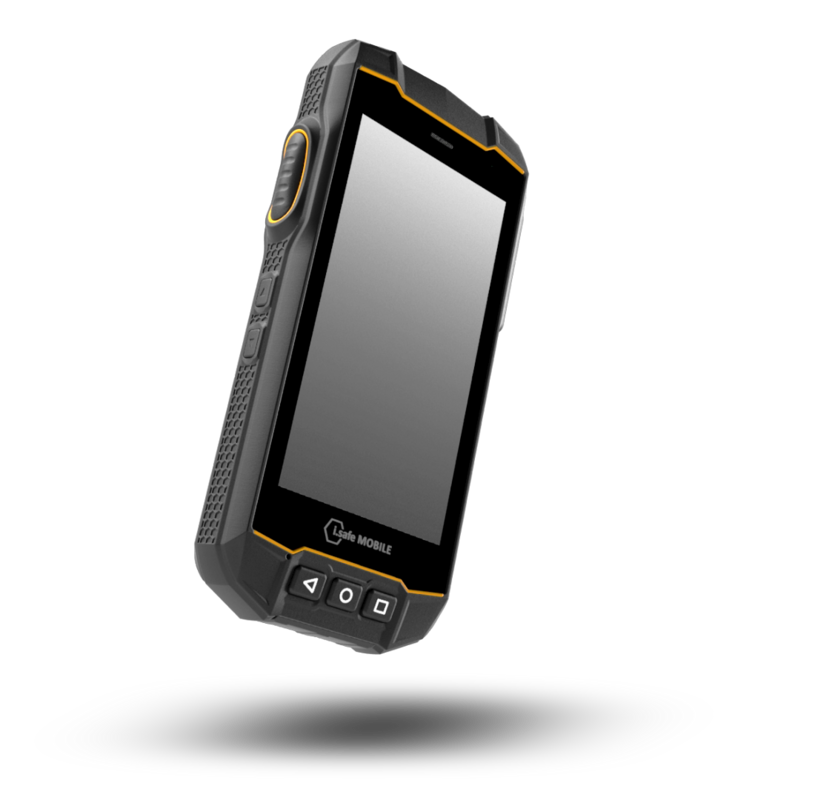

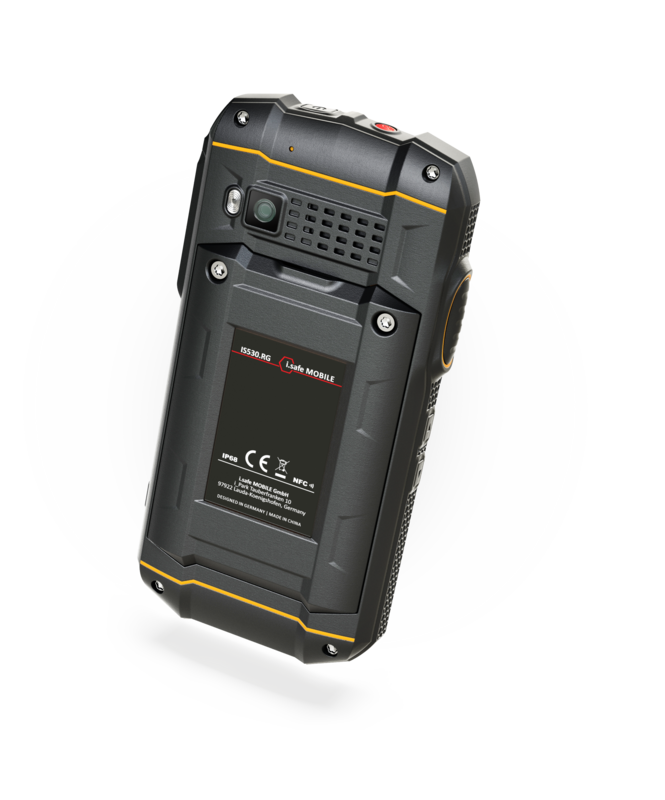

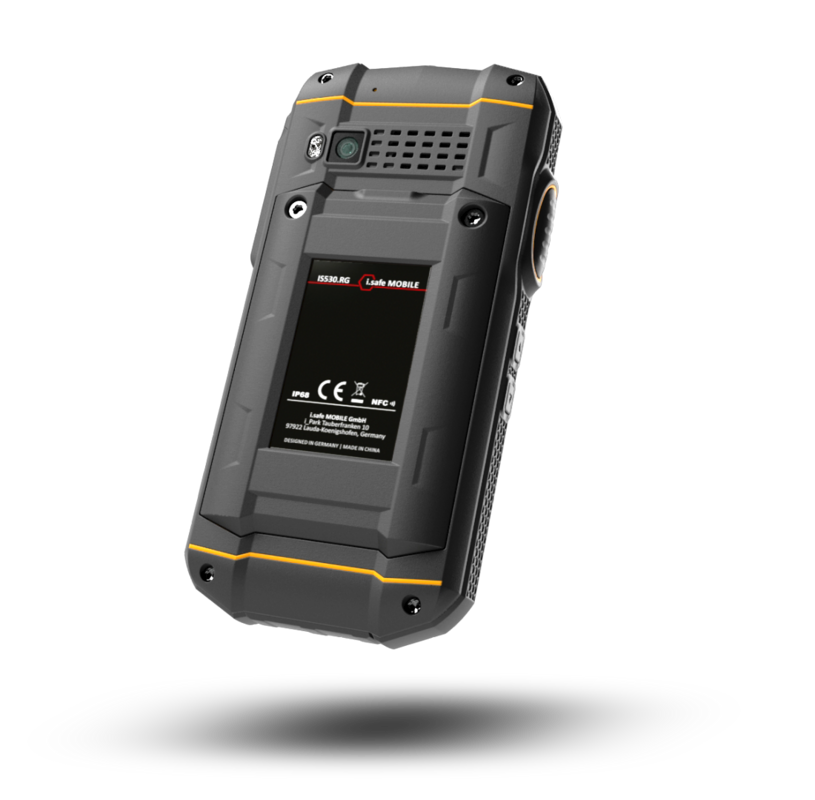

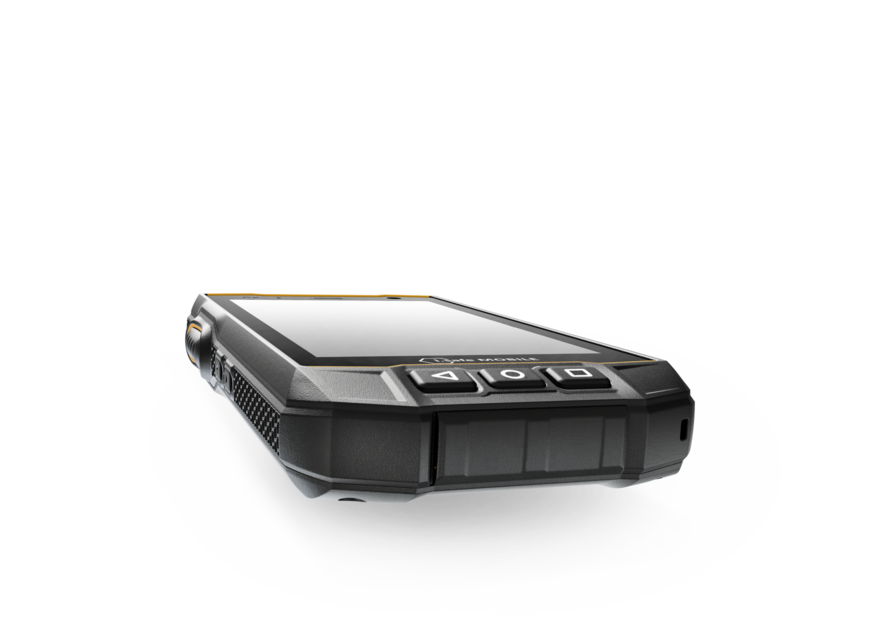

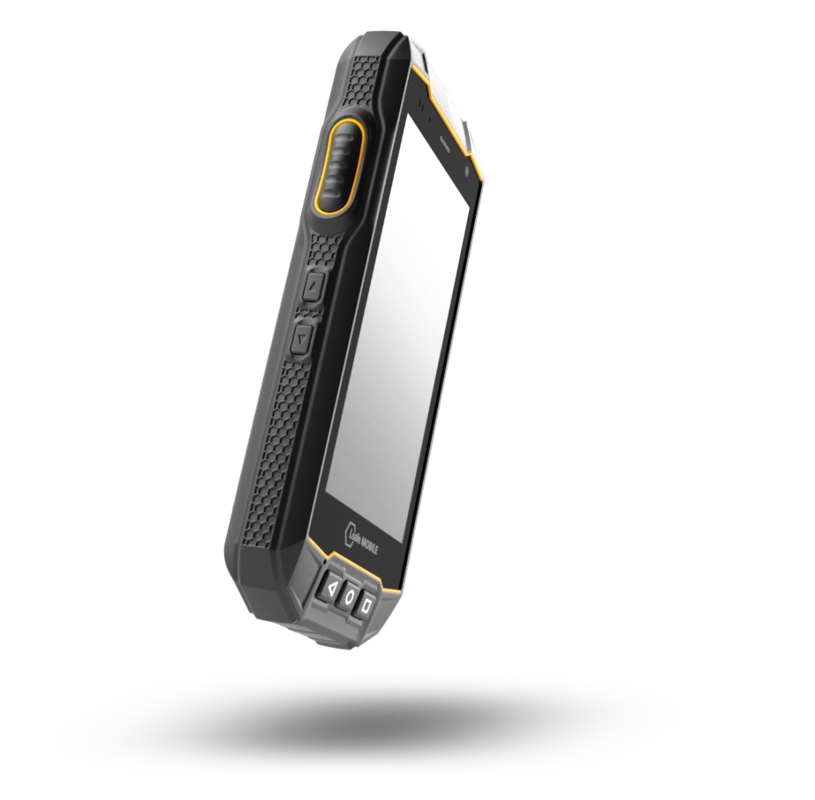

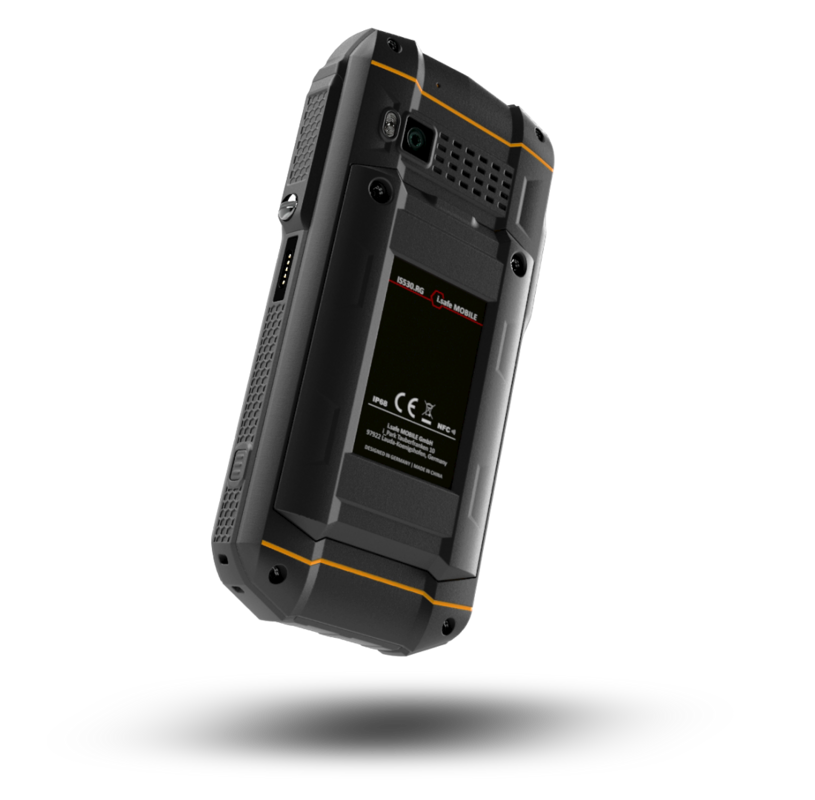

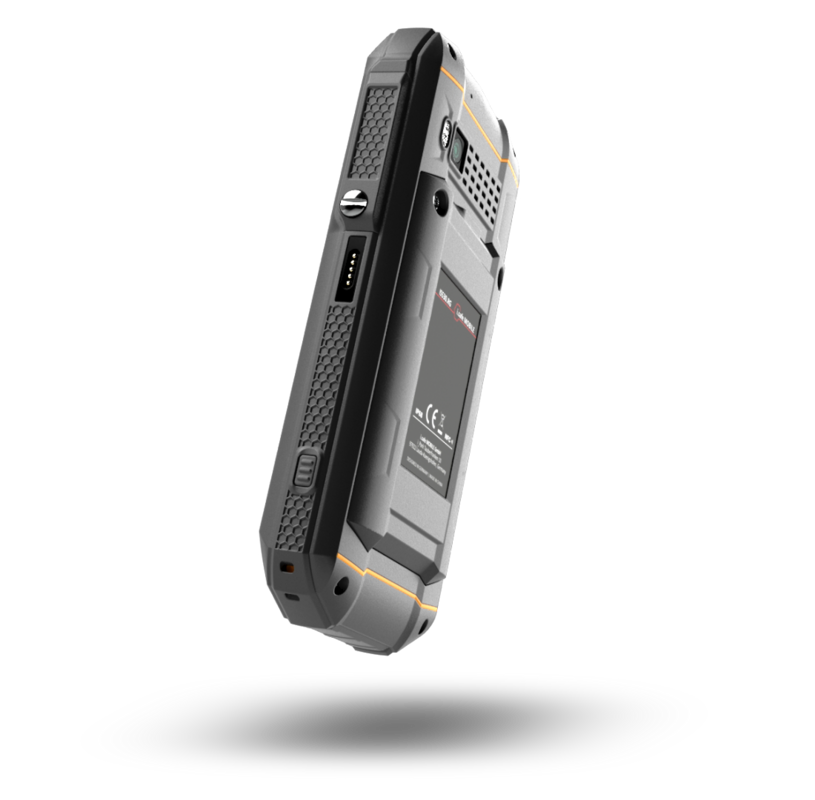

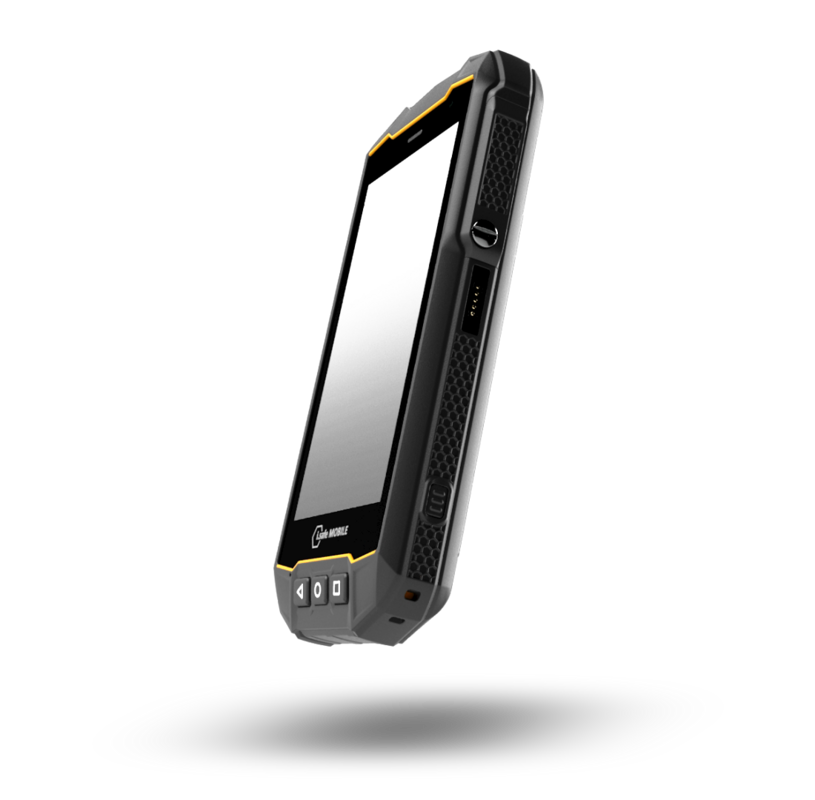

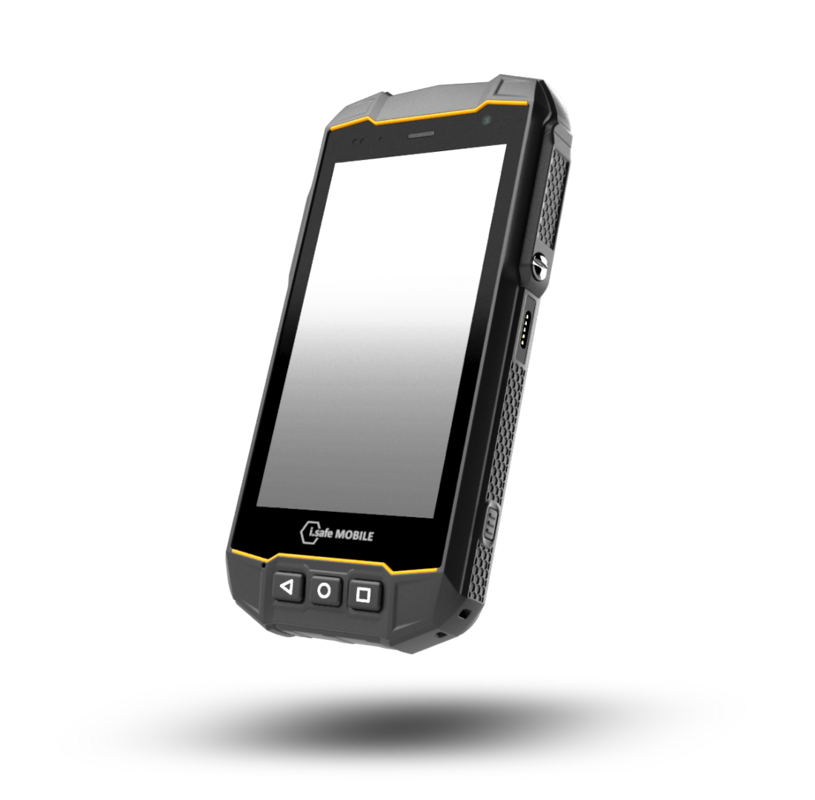

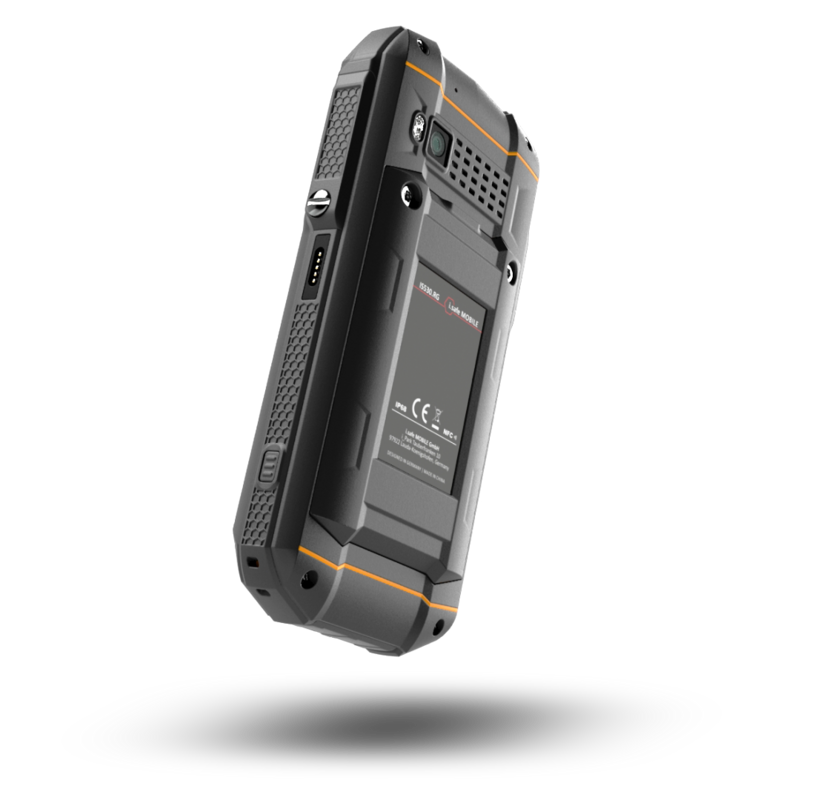

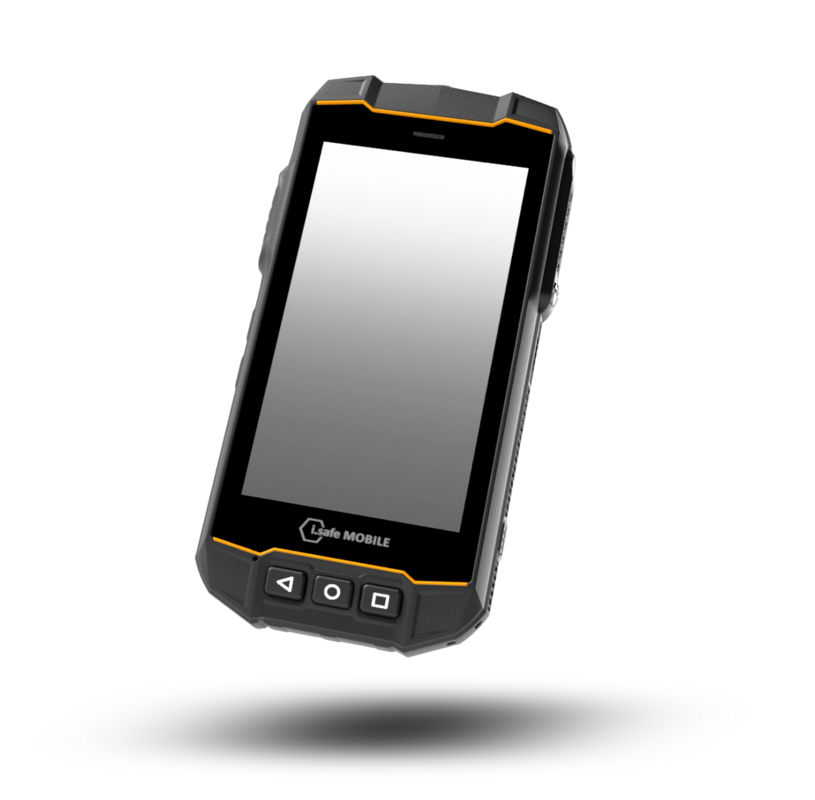

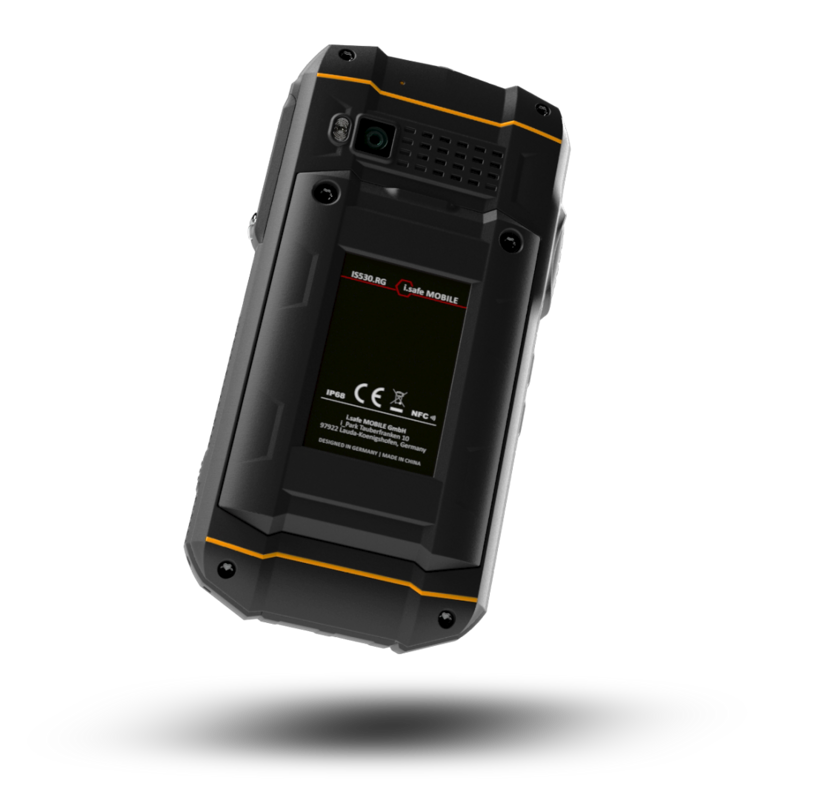

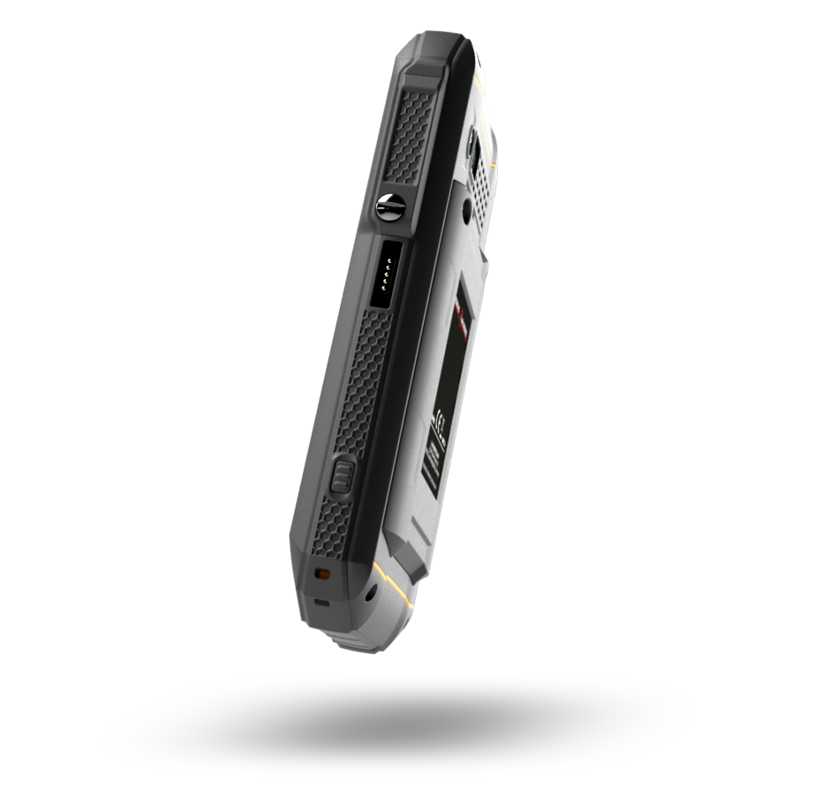

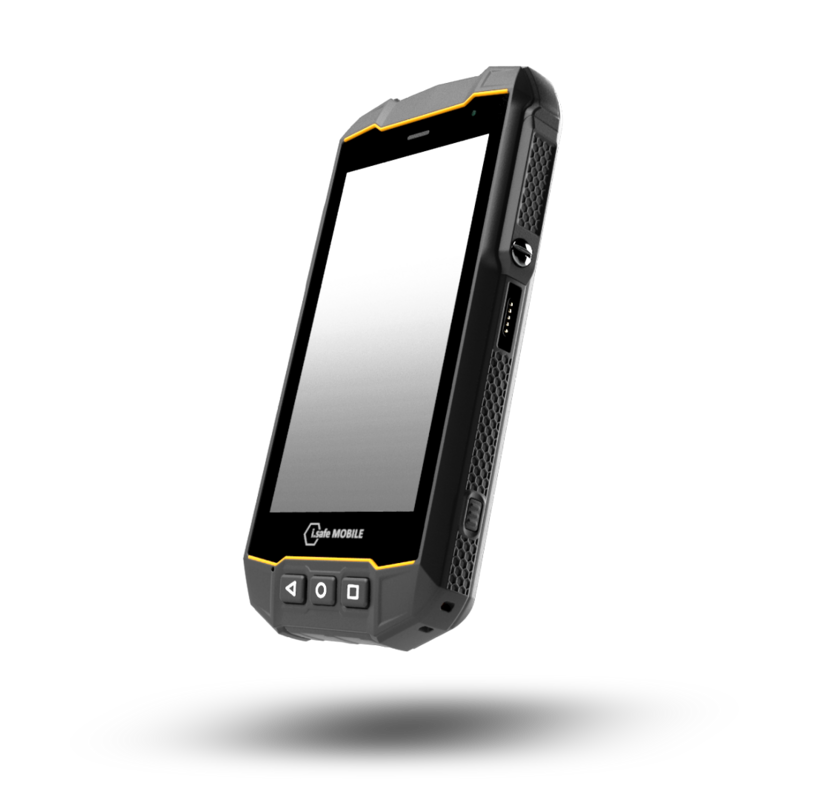

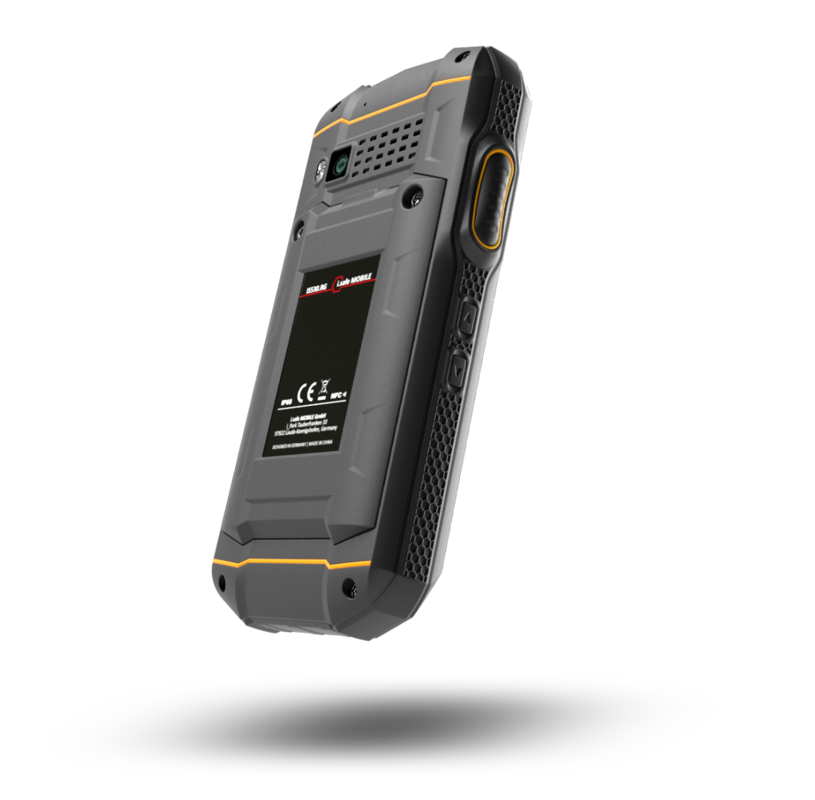

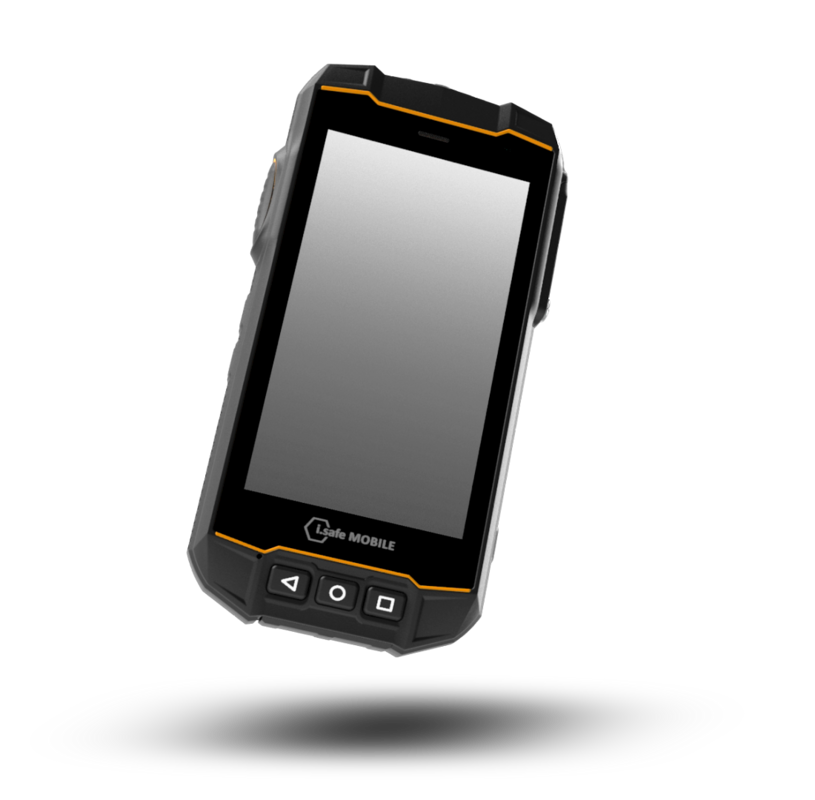

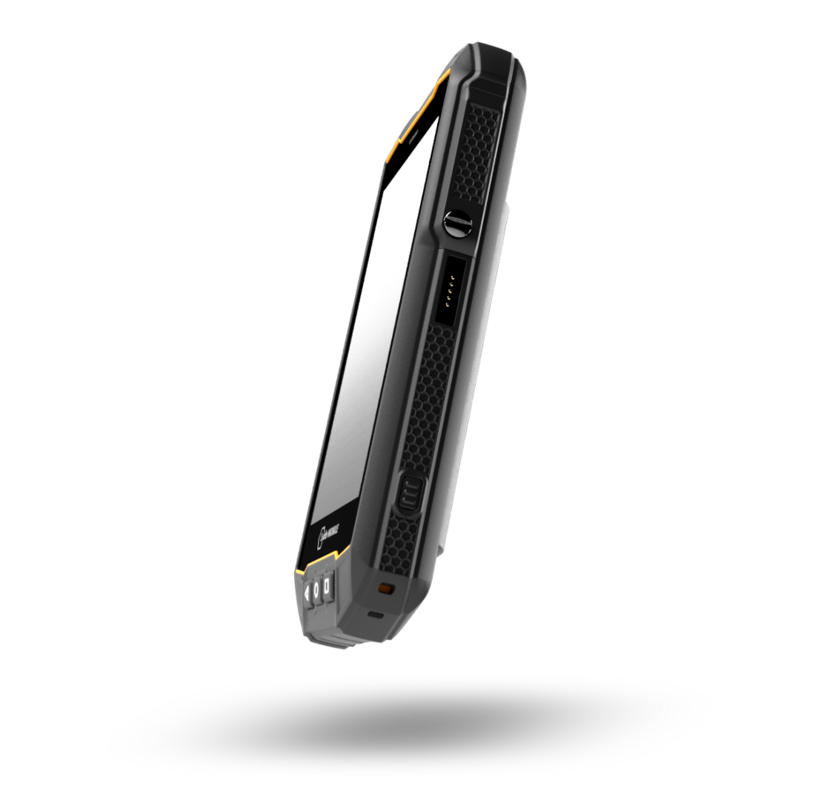

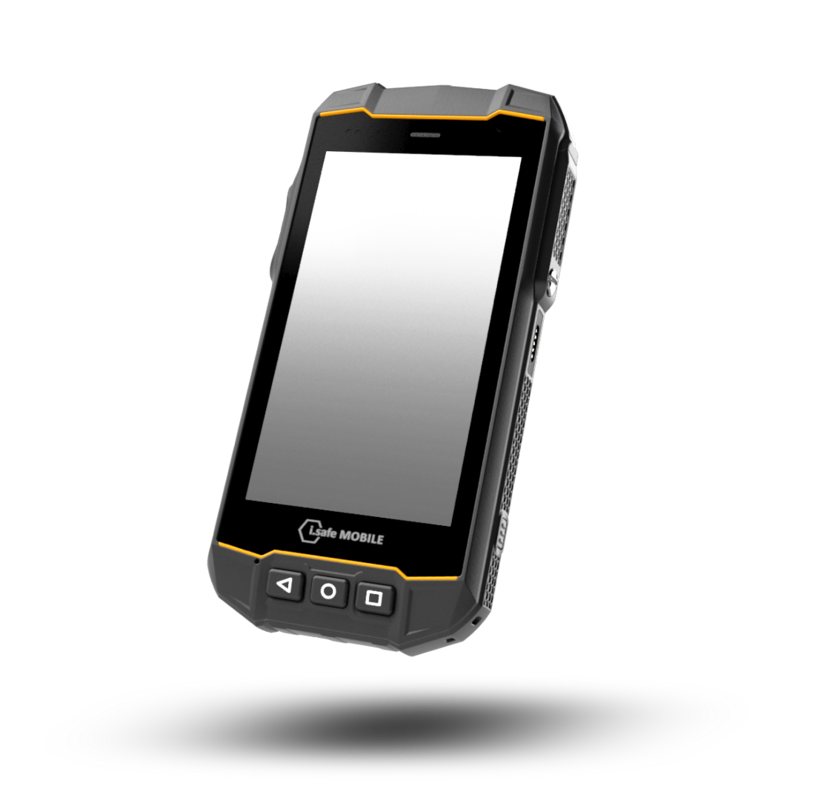

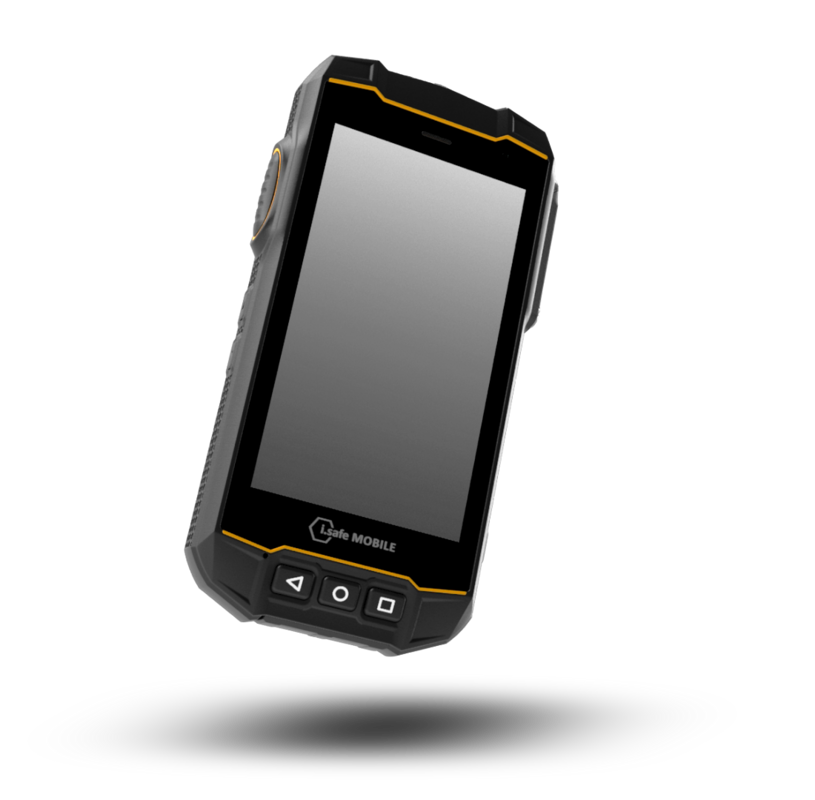

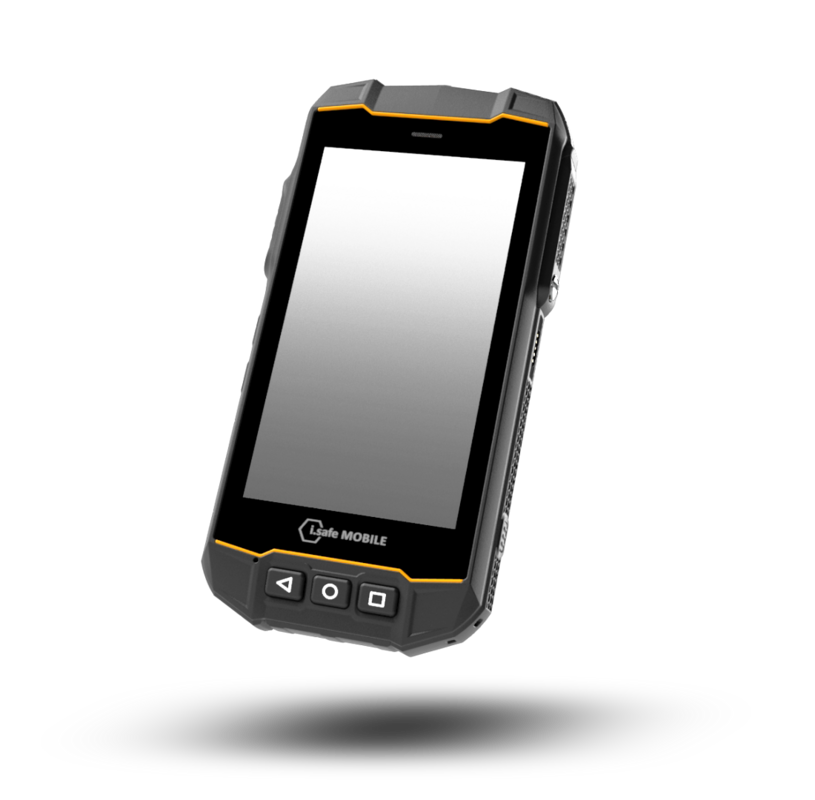

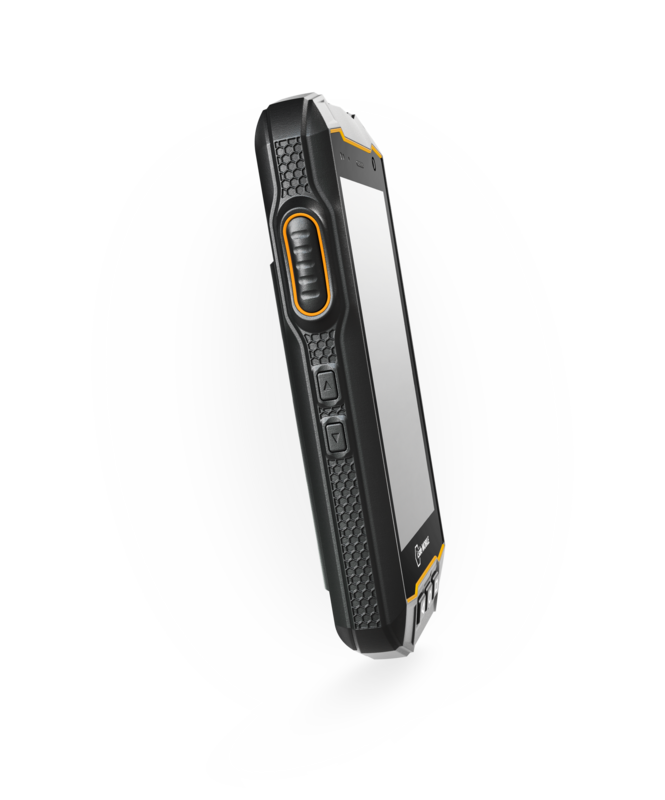

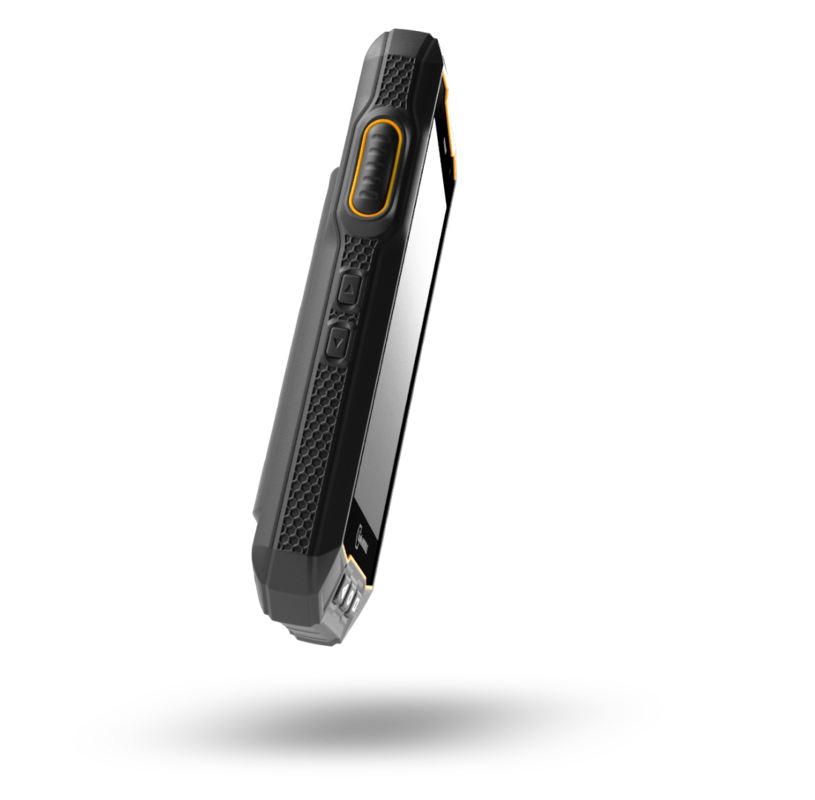

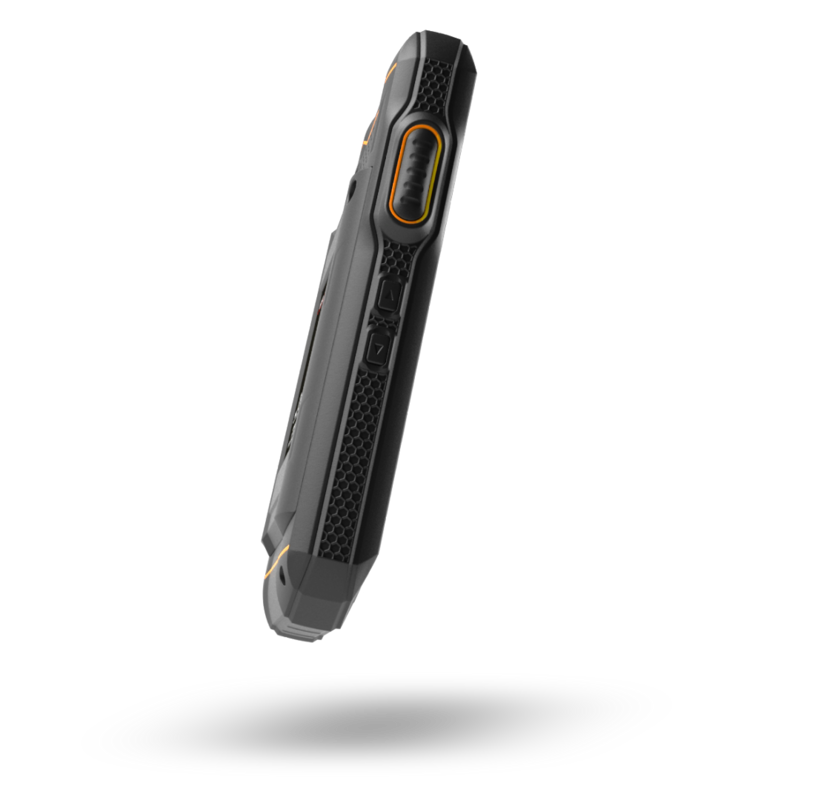

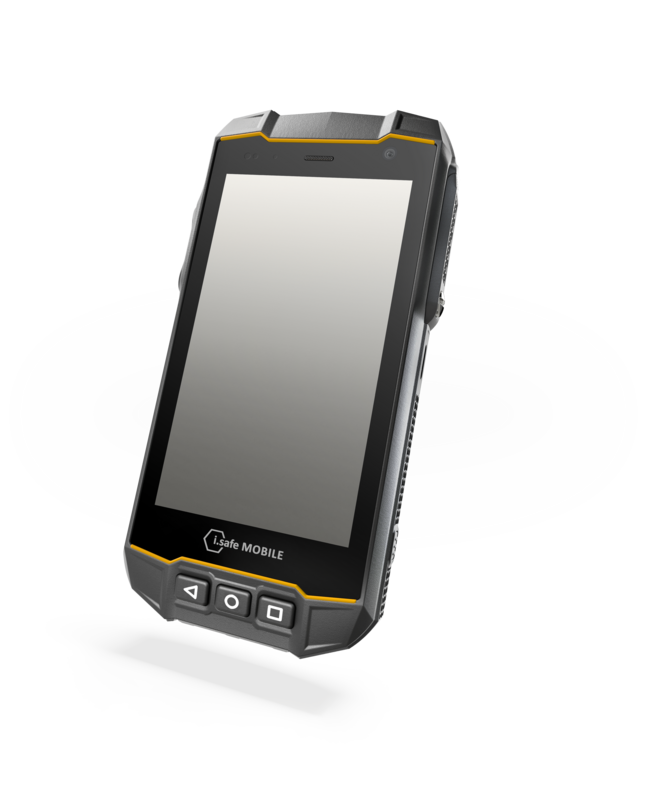

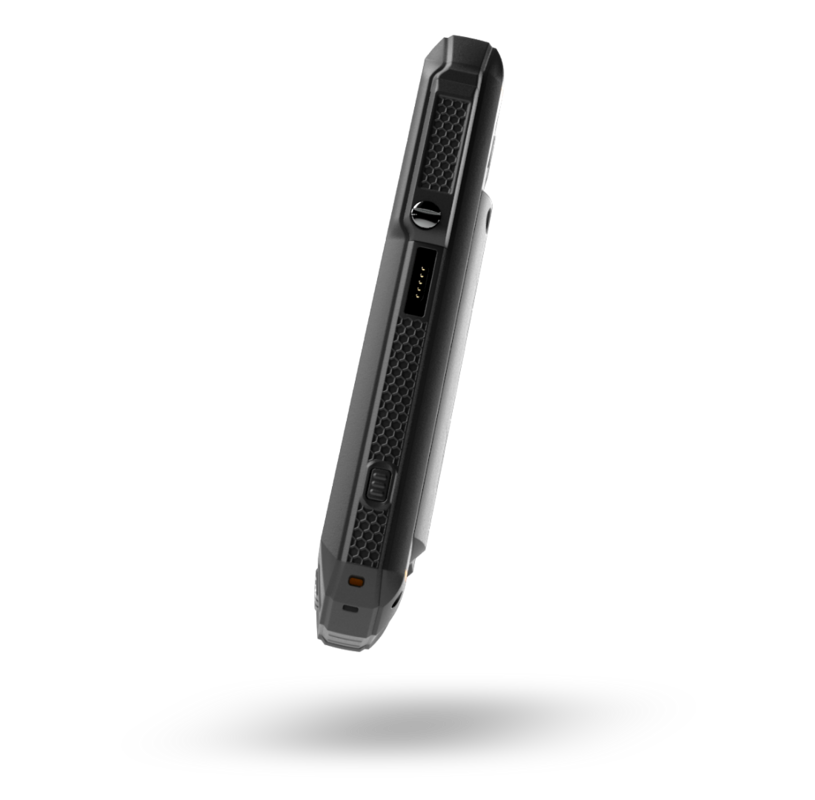

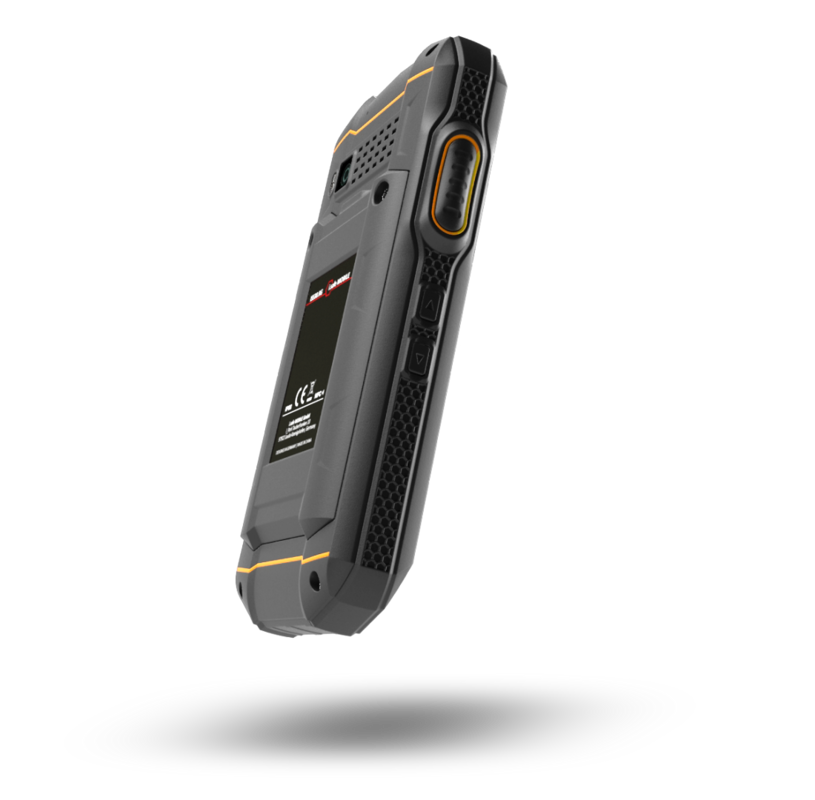

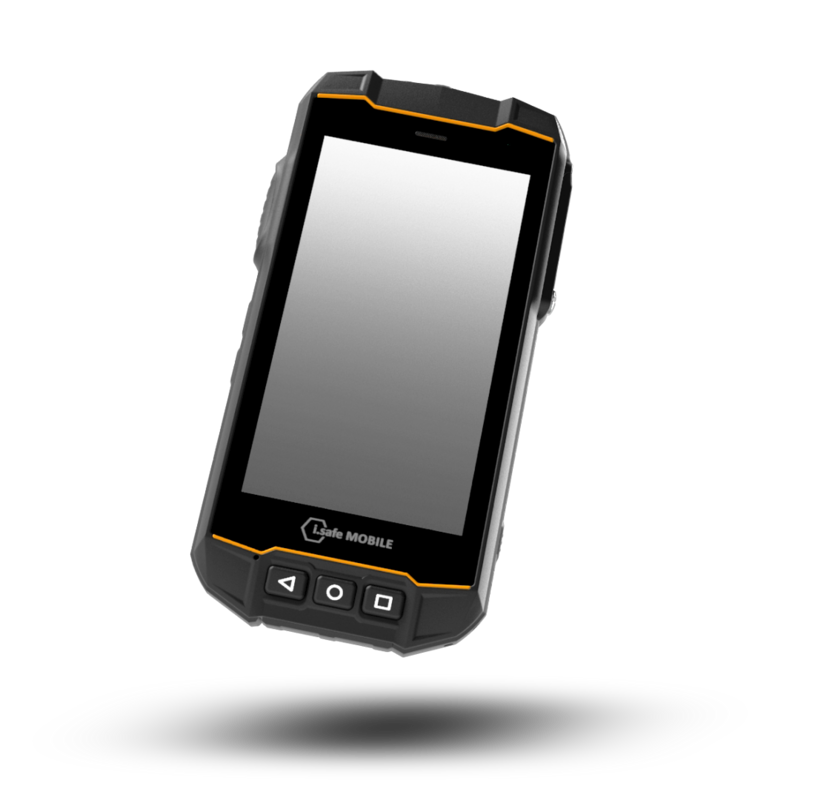

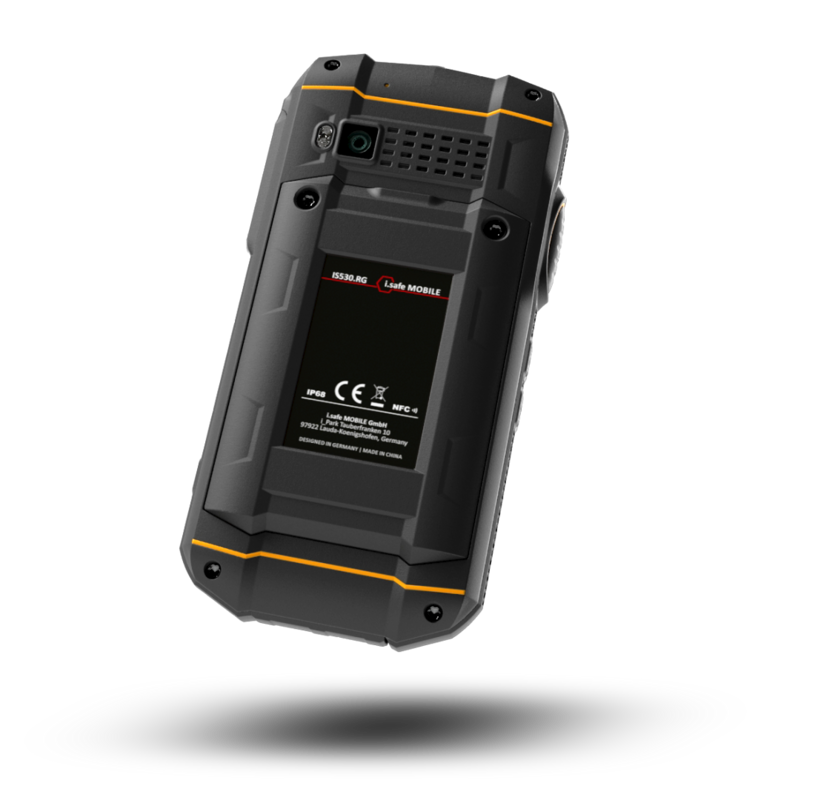

IS530.RG

The powerful industrial smartphone for robust industrial use can be used in a variety of ways thanks to the ISM interface. Additional modules such as an RSM, Push-to-talk headsets or the professional IS-TH1 barcode scanner make the IS530.RG a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.

Mini Picture
Mini Picture

Advantages

  • Android™ 13
  • Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
  • Android Enterprise Recommended
  • Zero-touch capable
  • MDM compatible

Technical features

Operating systemAndroid™ 13
ProcessorQualcomm® Snapdragon SDM660 Octa Core
Memory4 GB RAM
64 GB internal memory
microSD to 128 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
4G LTE-TDD: B38/B39/B40/B41
4G LTE-TD: B34/B39
DimensionsSize: 155,3 x 76,7 x 25 mm
Weight: 325,0 g
Display4,5" (11,43 cm) Corning® Gorilla® Glass V3
usable with gloves
Battery3600 mAh, 3,8 V
replaceable
Camera13 MP AF rear
5 MP FF front
ConnectivityWi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot
Bluetooth® 5
GPS, A-GPS, Glonass, Beidou
Near Field Communication
Types of protectionIP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +60 °C

Further features

Multifunctional ISM interface
Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

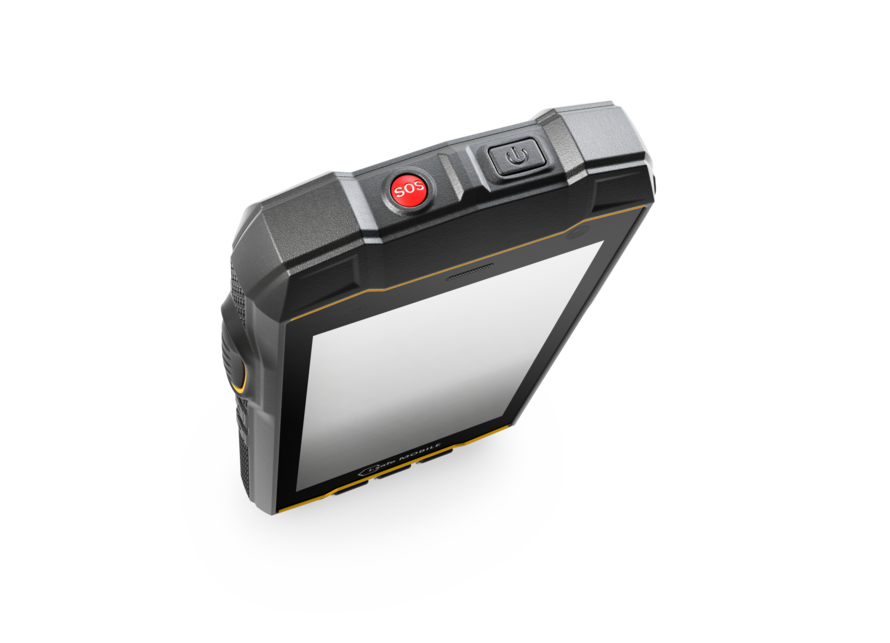

SOS-Taste
SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)
PTT-Taste (Push to Talk)
Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)
Verstärkter Lautsprecher
Amplified loudspeaker
Sensors
Accelerometer, Gyroscope, Magnetic, Proximity sensors
SIM cart
Dual-Micro-SIM
Ladeoptionen (Desktopcharger, Magnetic)
USB-C, Magnetic charger port, Desktop Charger, Multi Charger
Download datatsheet | pdf ▪ 1 MB

Contents

Included
  • Smartphone
  • Battery
  • Power Adapter universal
  • USB-C Cable
  • Magnetic Charger Cable
  • Screwdriver
  • Display Protection Foil
  • Display cleaning cloth
  • Safety Instructions
  • Quick Start Manual
package IS530.RG
APPROVED ACCESSORIES FOR IS530.RG
Batteries
BPIS530.RG Battery
BPIS530.RG Battery
IS530.RG Li-ion battery 3600 mAh, Typ BPIS530.RGA, Size: 86,3 x 54,6 x 14,5 mm (L x W x H)
IS530 Desk Charger
Charging systems
IS-DC530.1 Desktop Charger Set
IS530 Desk Charger
IS-DC530.1 Desktop Charger Set
Desktop charger for IS520.1, IS520.2 and IS530.1, IS530.M1, IS530.2, IS530.RG with a second charging slot for spare battery, Size: 88 x 78 x 44 mm (L x W x H)
IS-DC530.1 Desktop Charger Set
Quick Start Manual IS-DC530.1
pdf
530 KB
Download
Charging systems
IS-MC530.1 Multi Charger Set
IS-MC530.1 Multi Charger Set
Multi charger for six devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7 . Size: 595 x 113 x 77 mm (L x W x H). Compatible for IS530.1, IS530.M1, IS530.2, IS530.RG and IS520.1, IS520.2.
IS-MC530.1 Multi Charger Set
Quick Start Manual IS-MC530.1
pdf
720 KB
Download
Headset IS-HS1.1
Headsets
IS-HS1.1 Headset Set
Headset IS-HS1.1
IS-HS1.1 Headset Set
13-PIN Headset suitable for the devices IS330.x and IS530.x.
IS-HS1.1 Headset Set
Operating Manual/Safety Instructions IS-HS1.1
pdf
370 KB
Download

Acoustic Tube IS-HSx.x
Acoustic Tube IS-HSx.x
Acoustic Tube for replacement when the headset is worn out. Suitable for IS-HS1.1 (13-pin), IS-HS2A.1 (16-pin), and IS-HS3A.1 (8-pin) Packaging unit 10 pieces.
Carrying systems
Belt Clip IS530.x/IS520.x
Belt Clip IS530.x/IS520.x
Plastic black, for a quick and safe attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS520.1, IS520.2.
Belt Clip IS530.x/IS520.x
Product information Belt Clip
pdf
165 KB
Download
Leather Cases
Leather Case black IS530.x/IS520.x
Leather Case black IS530.x/IS520.x
Made of high quality leather, black. With locking clip for quick attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS520.1, IS520.2.
Leather Cases
Leather Case yellow IS530.x/IS520.x
Leather Case yellow IS530.x/IS520.x
Made of high quality leather, yellow. With locking clip for quick attachment to the belt. Suitable for the devices IS530.1, IS530.M1, IS530.2, IS530.RG and IS520.1, IS520.2.
Leather Cases
Armholder for Leather Case IS530.x/IS520.x
Armholder for Leather Case IS530.x/IS520.x
The Armholder made of antistatic Cordura® offers safe carrying of smartphones and mobile phones on the arm. These can be firmly fixed by means of the clip and press stud of the matching leather pouch.
Leather Cases
Leather Case black with Armholder Set IS530.x
Leather Case black with Armholder Set IS530.x
Set with Leather Case made of high quality leather, black and arm holder made of hard-wearing, antistatic and impregnated Cordura®.
Leather Cases
Leather Case yellow with Armholder Set IS530.x
Leather Case yellow with Armholder Set IS530.x
Set with Leather Case made of high quality leather, yellow and Armholder made of hard-wearing, antistatic and impregnated Cordura®.
Leather Cases
Leather Case universal IS530.x/IS880.2
Leather Case universal IS530.x/IS880.2
Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS540.x/IS880.2.
Leather Cases
Leather Belt Loop for Leather Case
Leather Belt Loop for Leather Case
For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.
Handschlaufe lanyard
Carrying systems
Lanyard/Hand Strap Set
Handschlaufe lanyard
Lanyard/Hand Strap Set
The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.
IS-Stylus
Others
IS-Stylus Set
IS-Stylus
IS-Stylus Set
Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
Display protection foil i.safe MOBILE IS520 IS530
Display protection foils
Display Protection Foil IS530.x/IS520.x (10 pcs)
Display protection foil i.safe MOBILE IS520 IS530
Display Protection Foil IS530.x/IS520.x (10 pcs)
Rugged plastic foil for an extended protection of the display. Suitable for the devices IS520.1, IS520.2 as well IS530.1, IS530.M1, IS530.2 and IS530.RG.
Display protection foils
PanzerGlass™ IS530.x/IS520.x
PanzerGlass™ IS530.x/IS520.x
PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS520.1, IS520.2 as well IS530.1, IS530.M1, IS530.2 and IS530.RG.
Service
Warranty extension
Warranty extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Warranty extension
Product information warranty extension
English
pdf
211 KB
Download

DOWNLOADS

Datasheet IS530.RG
English
pdf
1 MB
Download
Operating Manual IS530.RG
pdf
3 MB
Download
Safety Instructions IS530.RG
pdf
1 MB
Download
Quick Start Manual IS530.RG
pdf
2 MB
Download
FCC Statement IS530.x
pdf
162 KB
Download
IC Statement IS530.x
pdf
82 KB
Download
Quick Start Manual IS-DC530.1
pdf
530 KB
Download
Quick Start Manual IS-MC530.1
pdf
720 KB
Download
DoC IS530.RG
pdf
241 KB
Download
DoC IS-DC530.1
pdf
237 KB
Download
DoC IS-MC530.1
pdf
237 KB
Download
