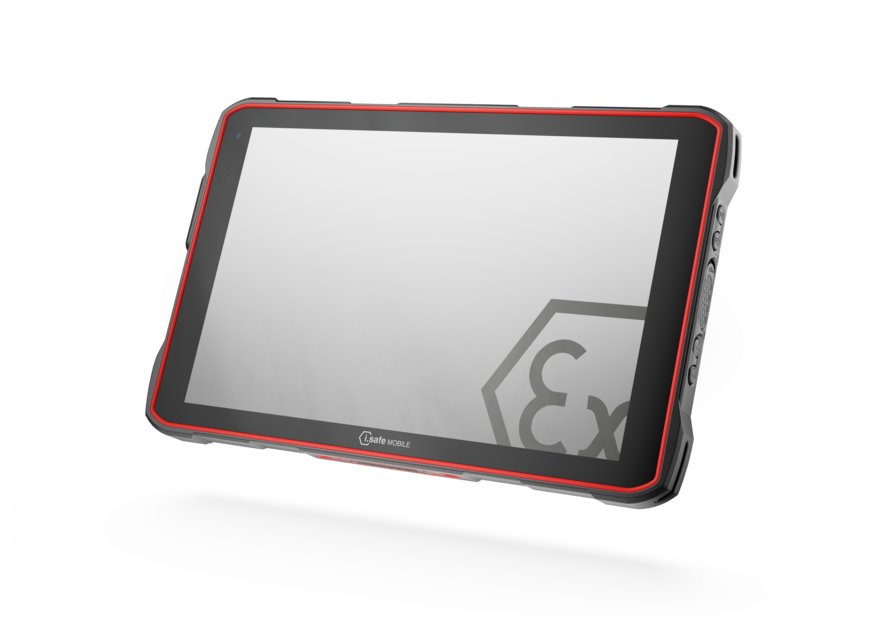

Tablet Zone 1/21
IS945.1
The 10.1-inch 5G Windows tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimised chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.
Advantages
- Windows operating system
- Processor with long-term support: Qualcomm® QCM6490 Octa Core
- Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 128 GB
- Clear 10.1" display with Corning® Gorilla® Glass 3rd generation
- Replaceable, powerful battery
- Camera on the front and back
- Wireless communications such as Wi-Fi® , Bluetooth®, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
- Programmable red key (e.g. for lone worker protection/SOS)
- Additional programmable side buttons (assignable via "Button App")
- Mounting VESA 100
- Amplified loudspeaker for noisy work environments
- Type of protection: IP68 waterproof/dustproof
- MIL-STD-810H
- Can be used from -20 °C to +55 °C
Technical features
| Operating system | Windows 11 IoT Enterprise |
|---|---|
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 8 GB RAM 128 GB internal memory microSD to 128 GB |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Dimensions | Size: 266,17 x 168,46 x 19,82 mm Weight: 1059 g |
| Display | 10,1" (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves |
| Battery | 8160 mAh, 3,7 V replaceable |
| Camera | 12 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H |
Further features
Amplified loudspeaker
Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
Dual-SIM (Nano-SIM + eSIM)
USB-C, Docking Station
Approvals
ATEX (Europe)
approved
approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
II 2D Ex ib IIIC T135°C Db
IECEx (International)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
NEC500 (North America)
applied for
applied for
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135 °C
Class III
Class II Div. 1 Groups E, F, G, T135 °C
Class III
IA (South Africa)
approved
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex ib IIIC T135°C Db
Contents
Included
- Tablet
- Battery
- Hand Strap
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Display Protection Foil
- Screwdriver
- Safety Instructions
Approved Accessories for IS945.1
