    Smartphone Zone 2/22

    IS540.2

    The 5G smartphone with a clear 6-inch full HD display is equipped with a high-end chipset, supports a wide range of frequency bands and offers the highest image quality through the 48 MP main camera. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. The 16-pin ISM interface provides a secure connection for approved accessories.

    ⭠ 360° ⭢

    Advantages

    • Amplified loudspeaker for noisy work environments
    • Replaceable 4400 mAh battery
    • Programmable side key (e.g. for PoC/PTT)
    • Programmable red key (e.g. for lone worker protection/SOS)

    TECHNICAL FEATURES

    Operating systemAndroid™ 12
    ProcessorQualcomm® QCM6490 Octa Core
    Memory8 GB RAM
    128 GB internal memory
    microSD to 128 GB
    Frequencies2G GSM 850/900/1800/1900 MHz
    3G WCDMA B1/2/4/5/8
    4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71
    4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
    5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
    DimensionsSize: 180,0 x 84,9 x 20,6 mm
    Weight: 422,0 g
    Display6,0" (15,24 cm) Corning® Gorilla® Glass V3
    usable with gloves
    Battery4400 mAh, 3,7 V
    replaceable
    Camera48 MP AF rear
    5 MP FF front
    ConnectivityWi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
    Bluetooth® 5.2
    GPS, A-GPS, Glonass, Beidou, Galileo
    Near Field Communication
    Types of protectionIP68 dust-/waterproof
    MIL-STD 810H
    Usable from -20 °C to +55 °C

    FURTHER FEATURES

    Multifunctional ISM interface
    Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
    Verstärkter Lautsprecher
    Amplified loudspeaker
    Sensors
    Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
    SIM cart
    Dual-SIM (Nano-SIM + eSIM)
    Ladeoptionen (Desktopcharger, Magnetic)
    USB-C, Desktop Charger, Multi Charger
    Download datatsheet | pdf ▪ 217 KB

    APPROVALS

    ATEX (Europe)
    ATEX (Europe)
    approved
    II 3G Ex ic IIC T4 Gc
    II 3D Ex ic IIIC T135°C Dc
    IECEx (International)
    IECEx (International)
    approved
    Ex ic IIC T4 Gc
    Ex ic IIIC T135°C Dc
    NEC500 (North America)
    NEC500 (North America)
    approved
    Class I Div. 2 Groups A, B, C, D, T4
    Class II Div. 2 Groups F, G, T4

    Class III Div. 2, T4
    KCs (South Korea)
    KCs (South Korea)
    approved
    Ex ic IIC T4
    TIIS (Japan)
    TIIS (Japan)
    approved
    Ex ic IIC T4 Gc
    Ex ic IIIC T135°C Dc
    PCEC (China)
    PCEC (China)
    approved
    Ex ic IIC T4 Gc
    Ex ic IIIC T135°C Dc

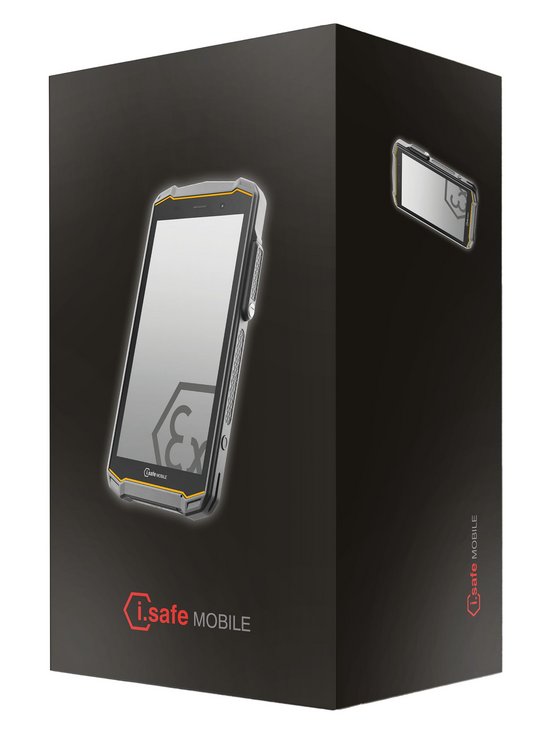

    CONTENTS

    Included
    • Smartphone
    • Battery
    • Power Adapter universal
    • Screwdriver
    • Safety Instructions
    • Quick Start Manual
    • Display Protection Foil
    • Display cleaning cloth
    APPROVED ACCESSORIES FOR IS540.2
    Batteries
    BPIS540.2A Battery
    Product details
    BPIS540.2A Battery
    IS540.2 Li-ion battery 4400 mAh, Type BPIS540.2A, Size: 103,5 x 75,0 x 14,0 mm (L x W x H)
    Charging systems
    IS-DC540.1 Desktop Charger Set
    Product details
    Downloads
    IS-DC540.1 Desktop Charger Set
    Desktop charger for the IS540.x devices with a second charging slot for spare battery. Size: 114 x 80 x 54 mm (L x W x H)
    IS-DC540.1 Desktop Charger Set
    Product information IS-DC540.1
    English
    pdf
    122 KB
    Download
    Operating Manual/Safety Instructions IS-DC540.1
    pdf
    2 MB
    Download

    IS-MC540.1 Multi Charger Set
    Product details
    Downloads
    IS-MC540.1 Multi Charger Set
    Multi charger for five devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7. Size: 595 x 113 x 90 mm (L x W x H). Compatible for IS540.1 and IS540.2.
    IS-MC540.1 Multi Charger Set
    Product information IS-MC540.1
    English
    pdf
    253 KB
    Download
    Operating Manual/Safety Instructions IS-MC540.x
    pdf
    2 MB
    Download
    Carrying systems
    Belt Clip IS540.x
    Product details
    Belt Clip IS540.x
    Plastic black, for a quick and safe attachment to the belt.
    Leather Cases
    Leather Case black IS540.x
    Product details
    Leather Case black IS540.x
    Made of high quality leather, black. With locking clip for quick attachment to the belt.
    Leather Cases
    Leather Case yellow IS540.x
    Product details
    Leather Case yellow IS540.x
    Made of high quality leather, yellow. With locking clip for quick attachment to the belt.
    Leather Cases
    Leather Belt Loop for Leather Case
    Product details
    Leather Belt Loop for Leather Case
    For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.
    Handschlaufe lanyard
    Carrying systems
    Lanyard/Hand Strap Set
    Product details
    Handschlaufe lanyard
    Lanyard/Hand Strap Set
    The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.
    IS-Stylus
    Others
    IS-Stylus Set
    Product details
    IS-Stylus
    IS-Stylus Set
    Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
    Display protection foils
    Display Protection Foil IS540.x (10 pcs)
    Product details
    Display Protection Foil IS540.x (10 pcs)
    Rugged plastic foil for an extended protection of the display.
    Service
    Warranty extension
    Product details
    Downloads
    Warranty extension
    With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
    Warranty extension
    Product information warranty extension
    English
    pdf
    211 KB
    Download
    Display protection foils
    PanzerGlass™ IS540.x
    Product details
    PanzerGlass™ IS540.x
    PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS540.1, IS540.2, IS540.M1.
