    Tablet Zone 2/22

    IS930.2

    The robust and powerful tablet of the Industry 4.0 generation is Android Enterprise Recommended and can be used immediately thanks to its zero-touch functionality, making it ideally suited for maintenance applications in the IoT environment. The 8-inch display, two freely programmable buttons, a long-life battery, a practical hand strap and a separate leather bag with a shoulder/belt or carry strap system are further highlights.

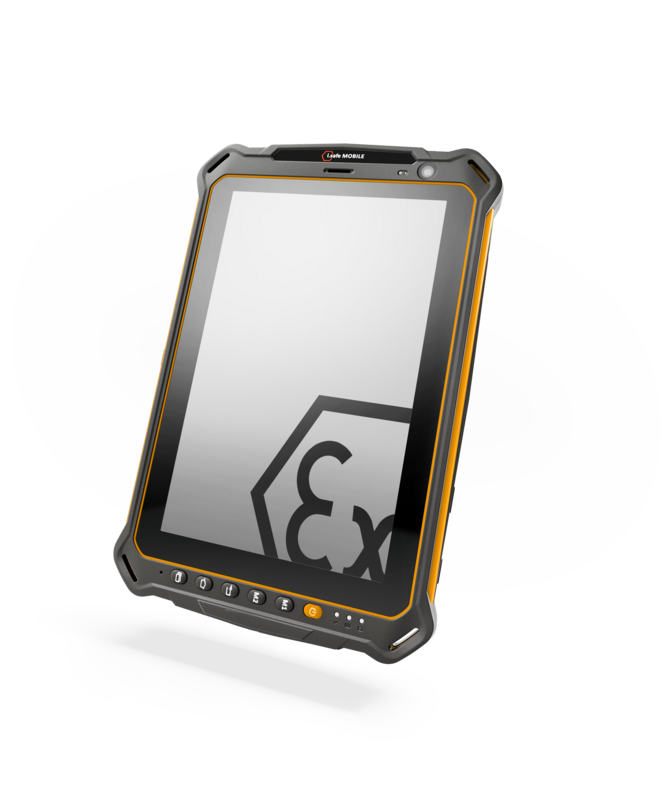

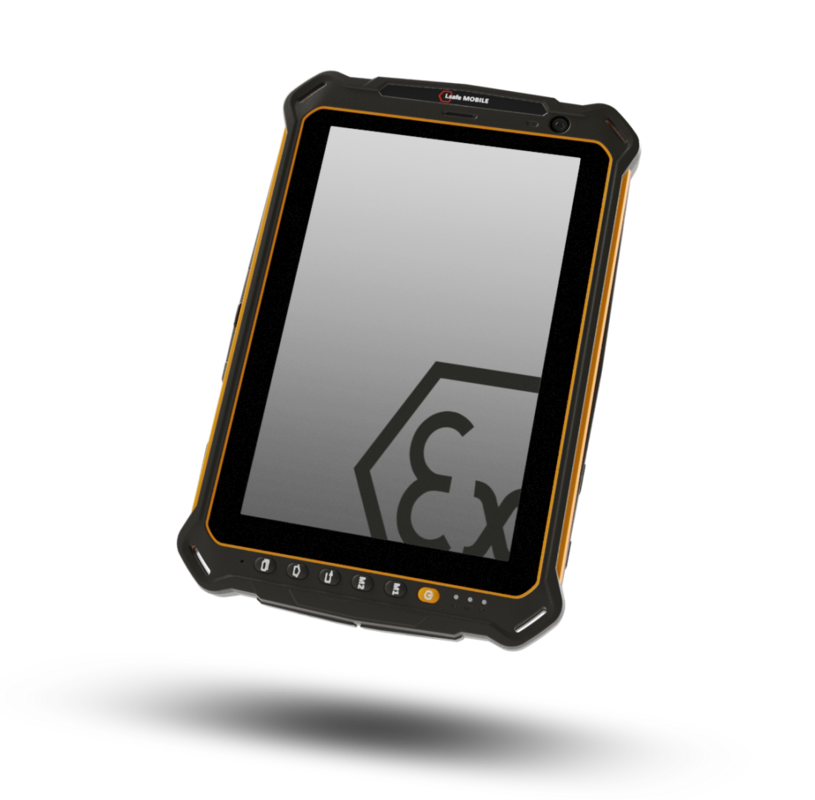

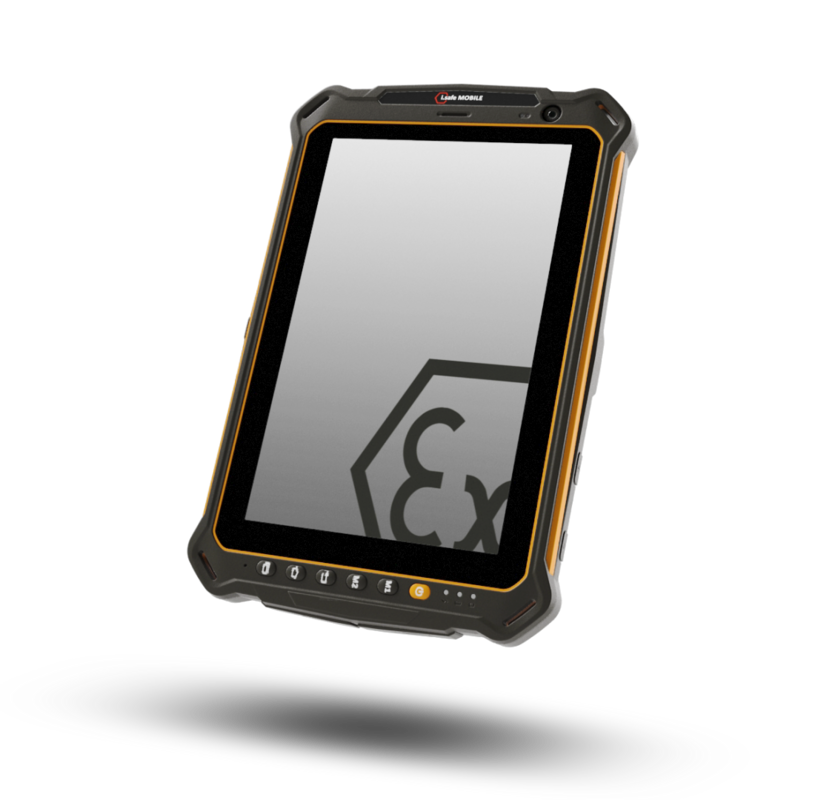

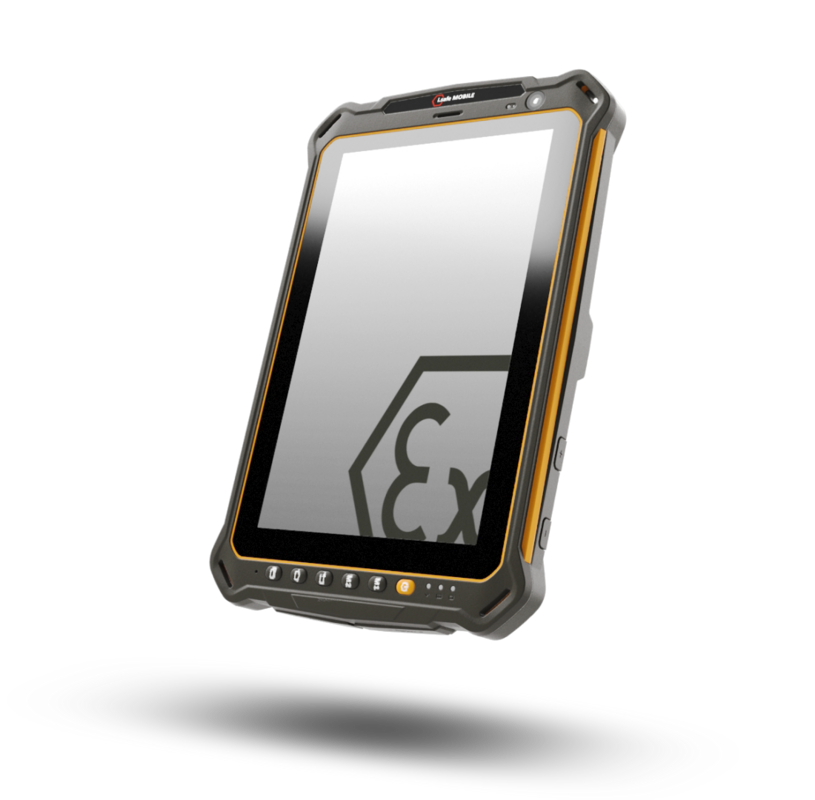

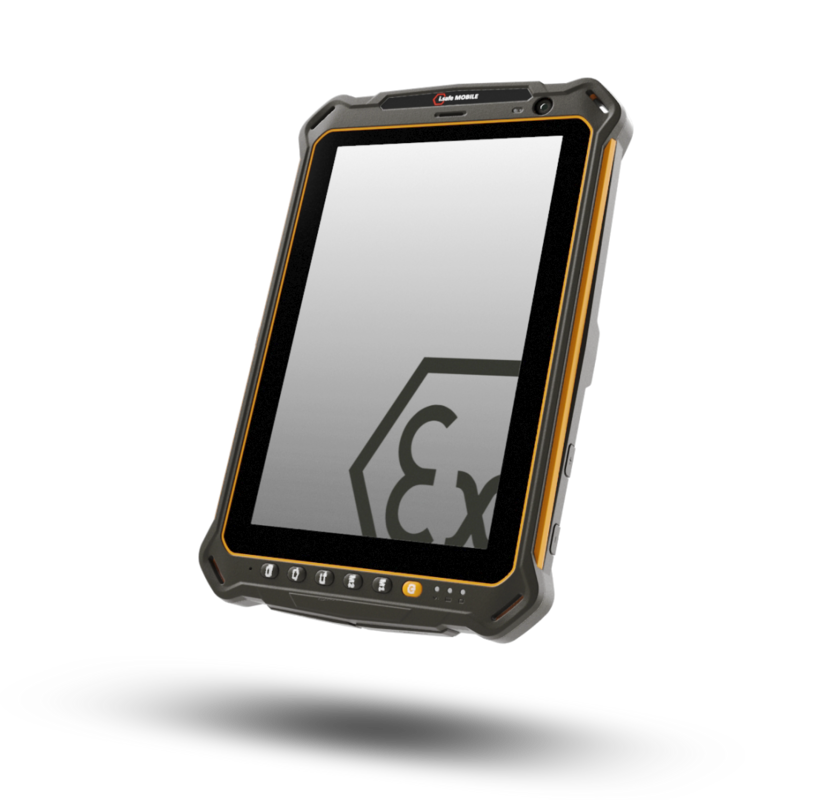

    frontview IS930.2

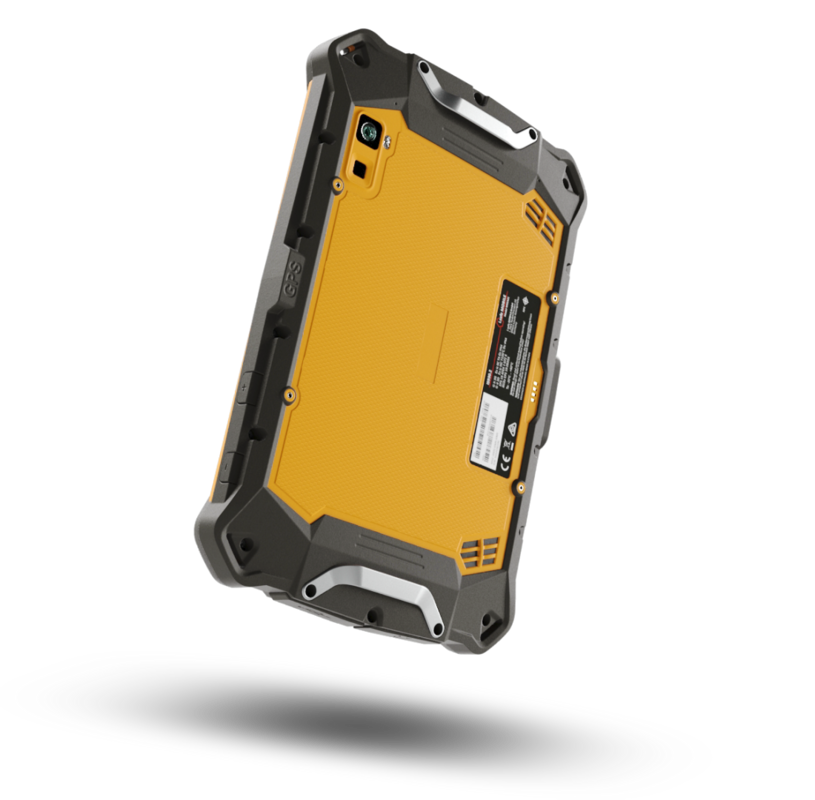

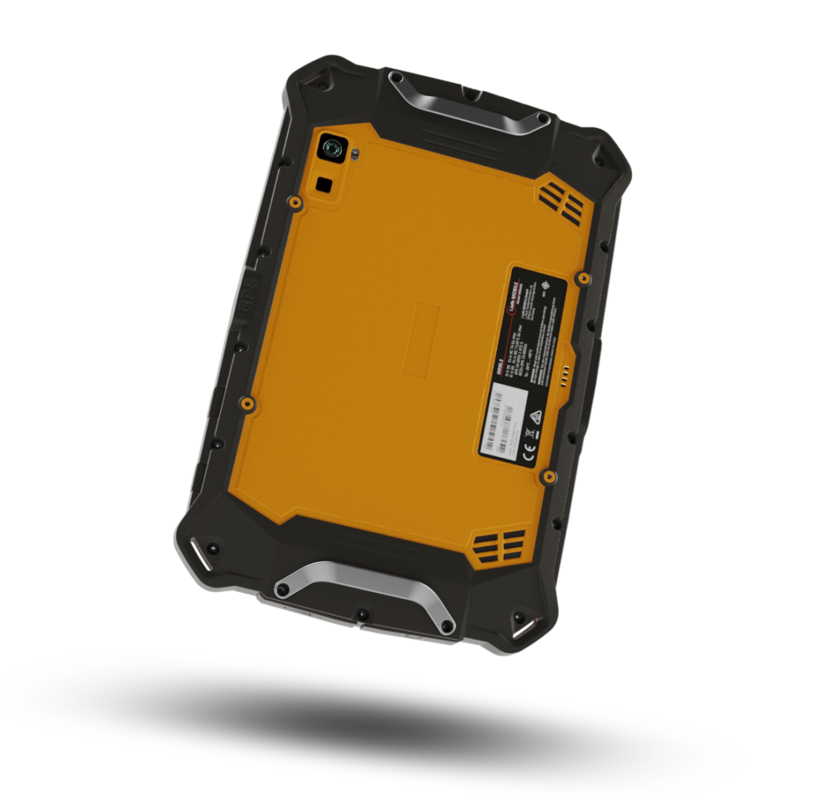

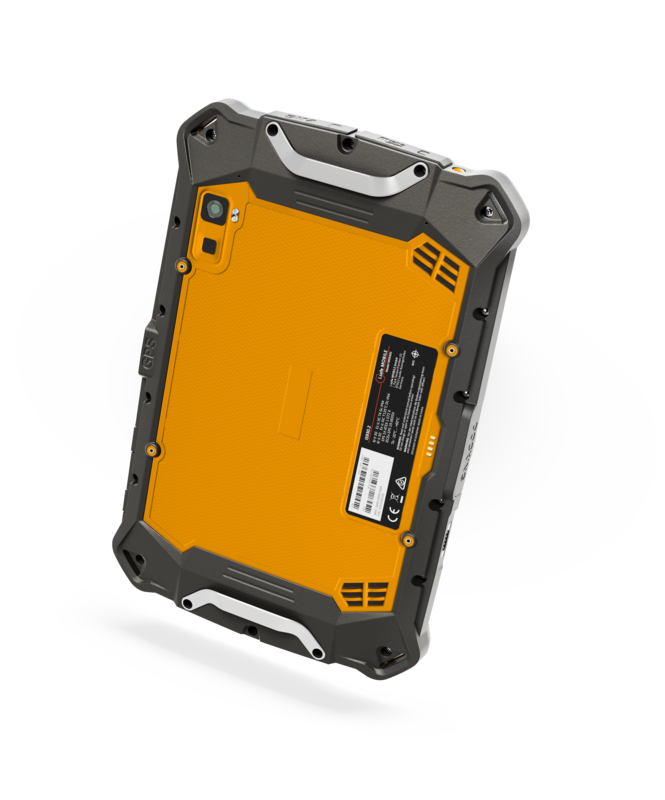

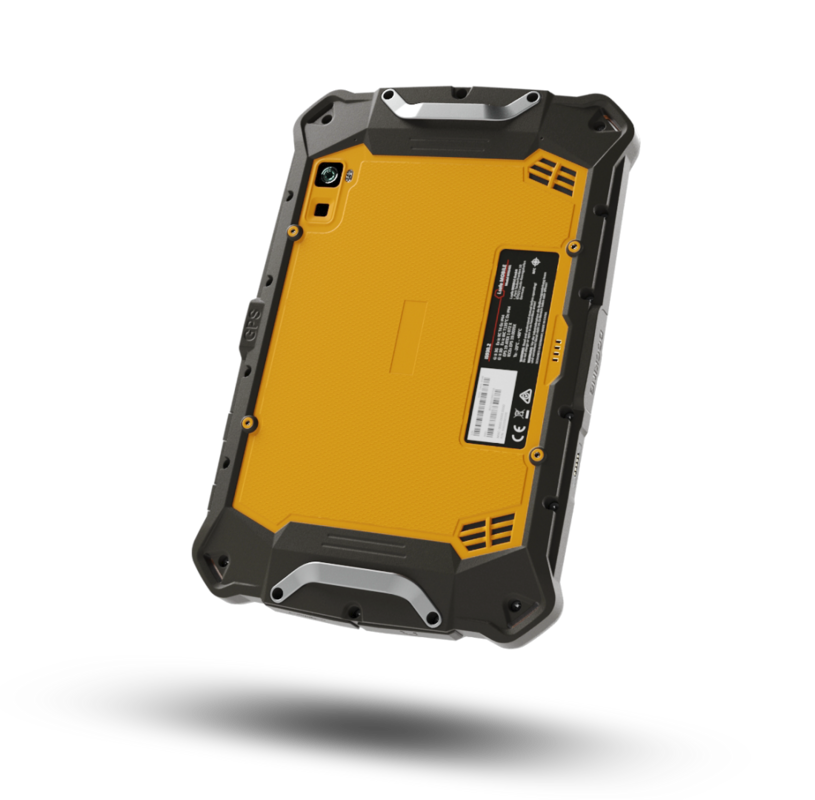

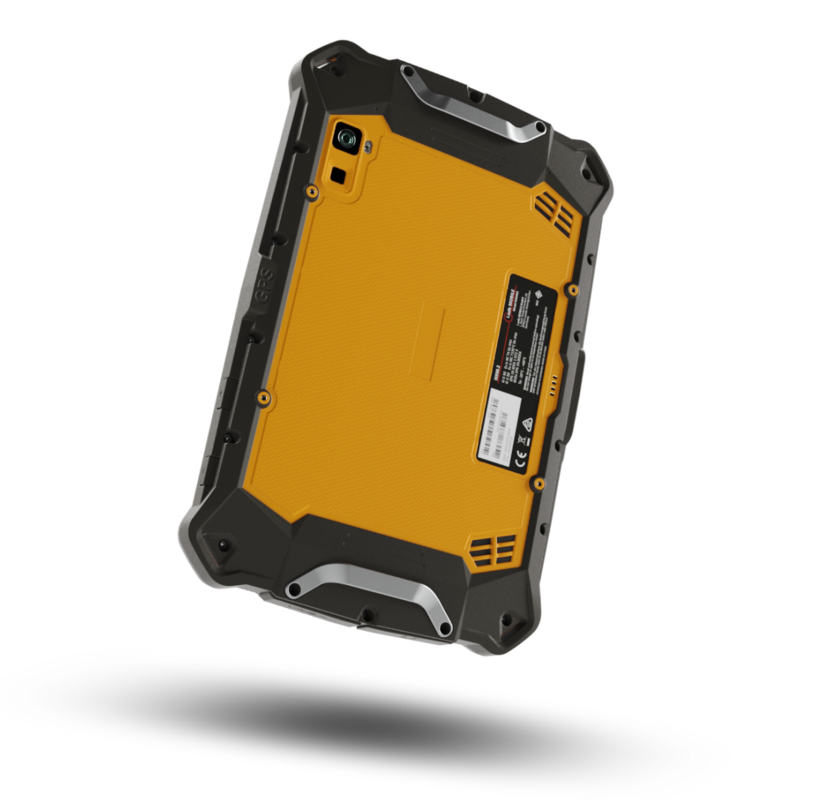

    backview IS930.2

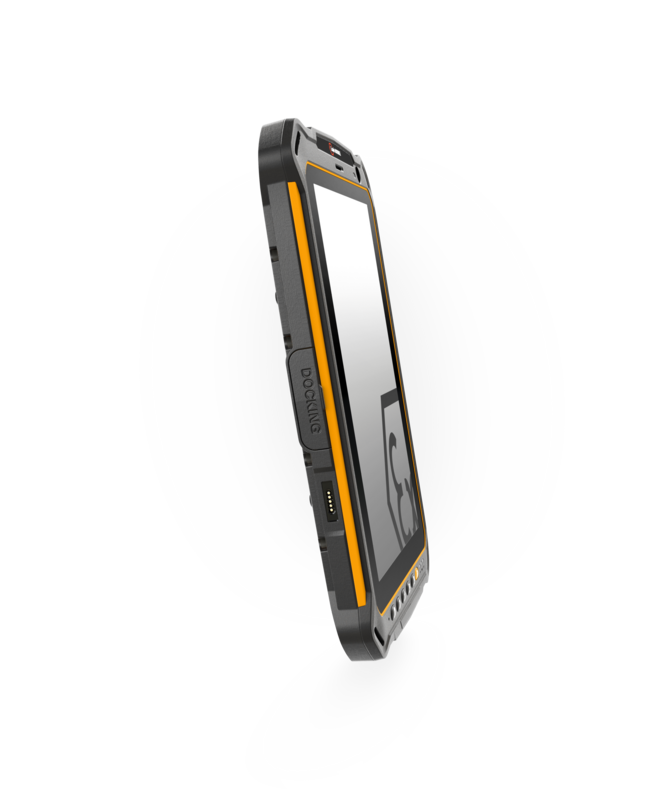

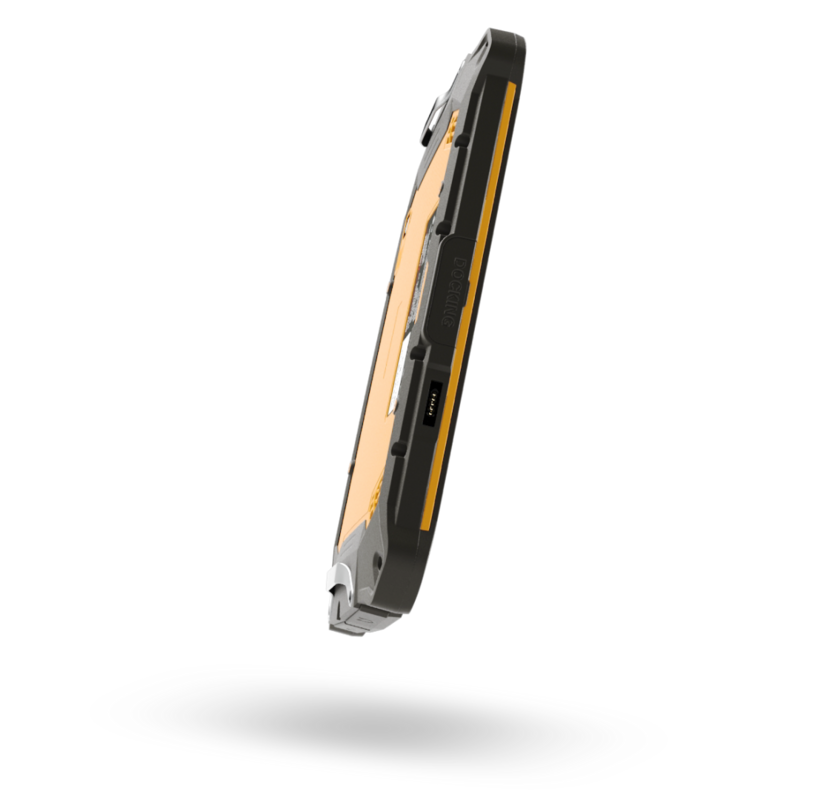

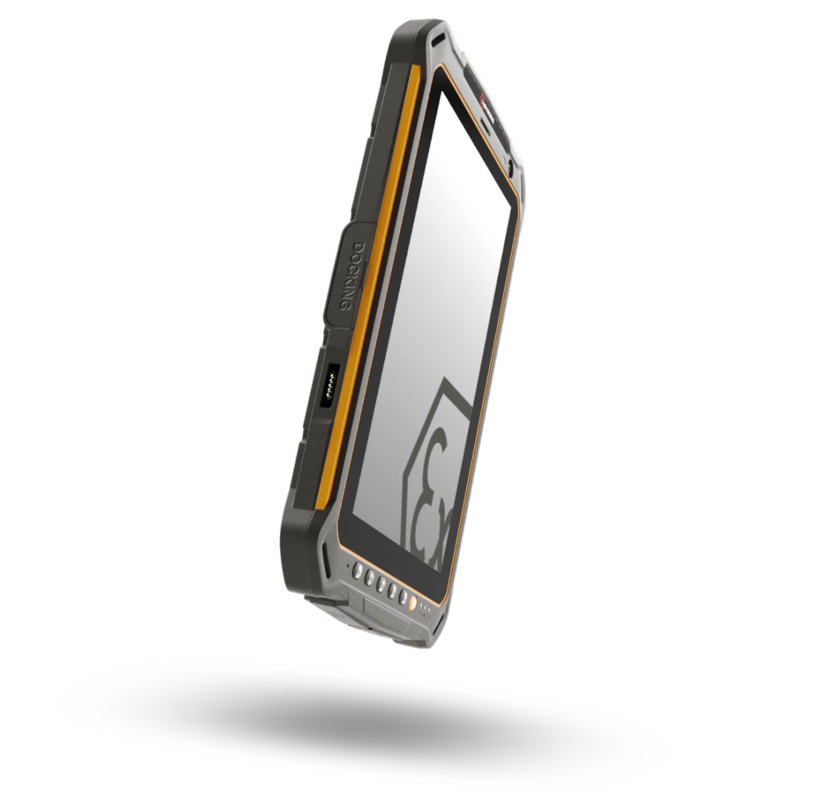

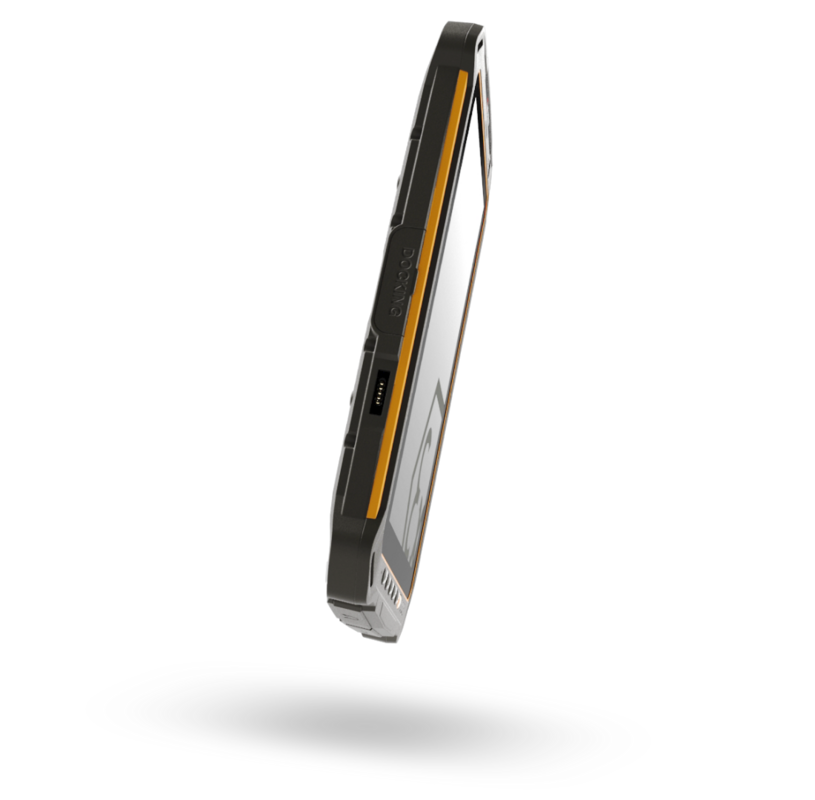

    sideview left IS930.2

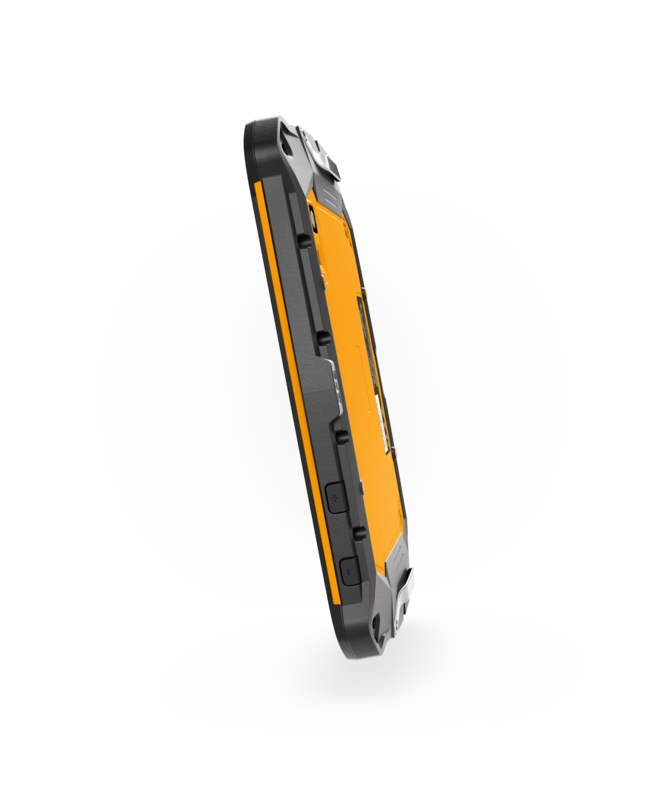

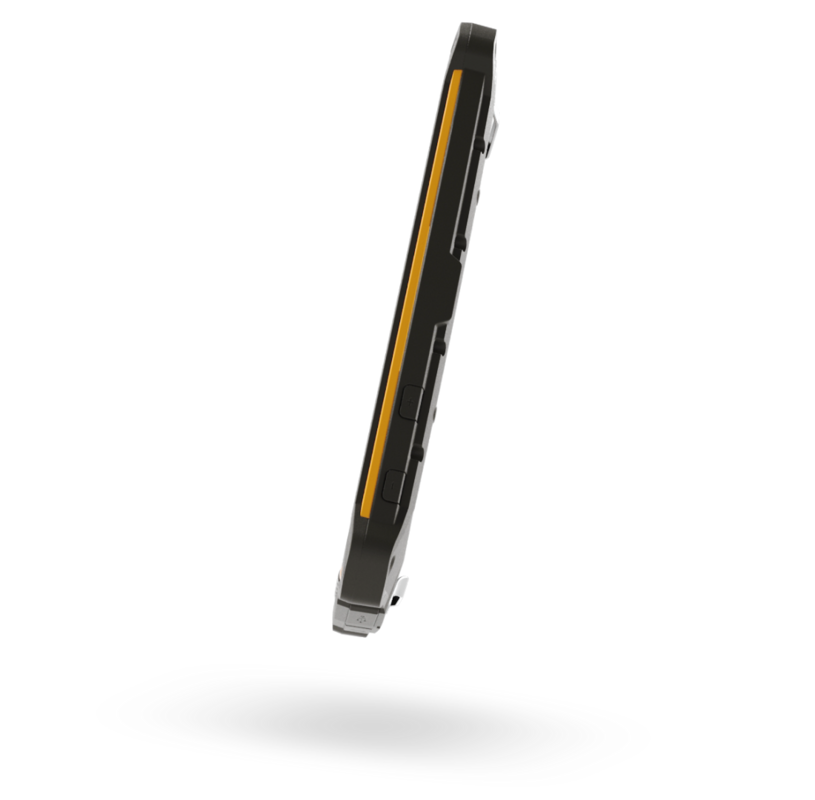

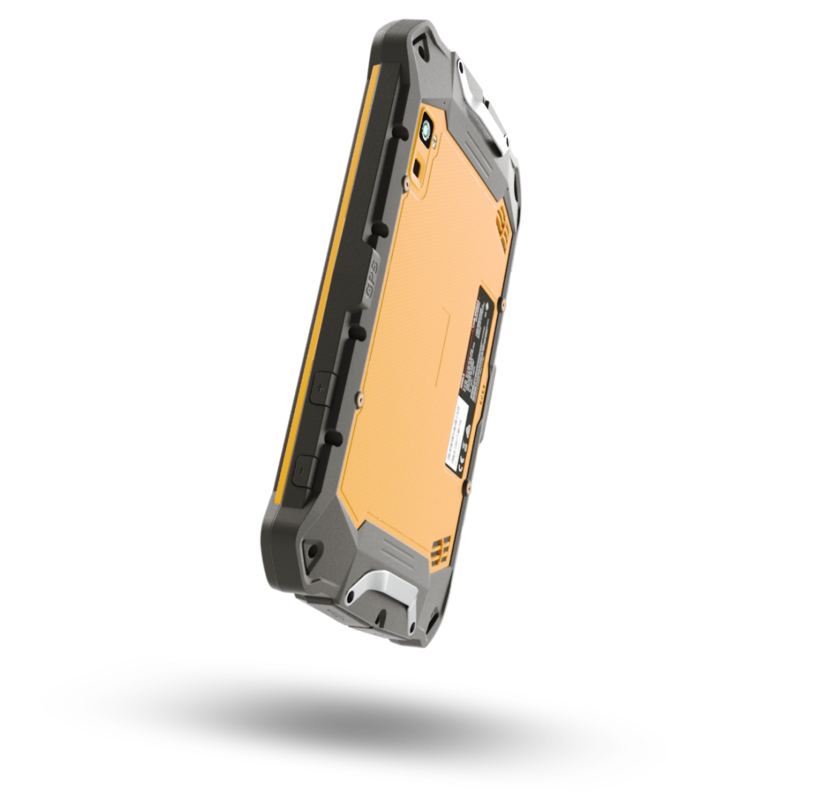

    sideview right IS930.2

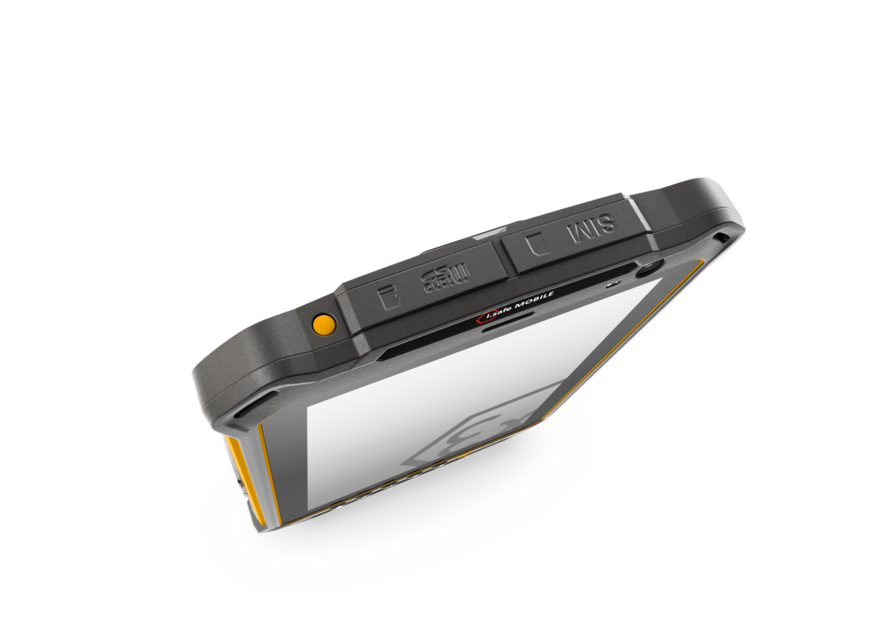

    topview IS930.2

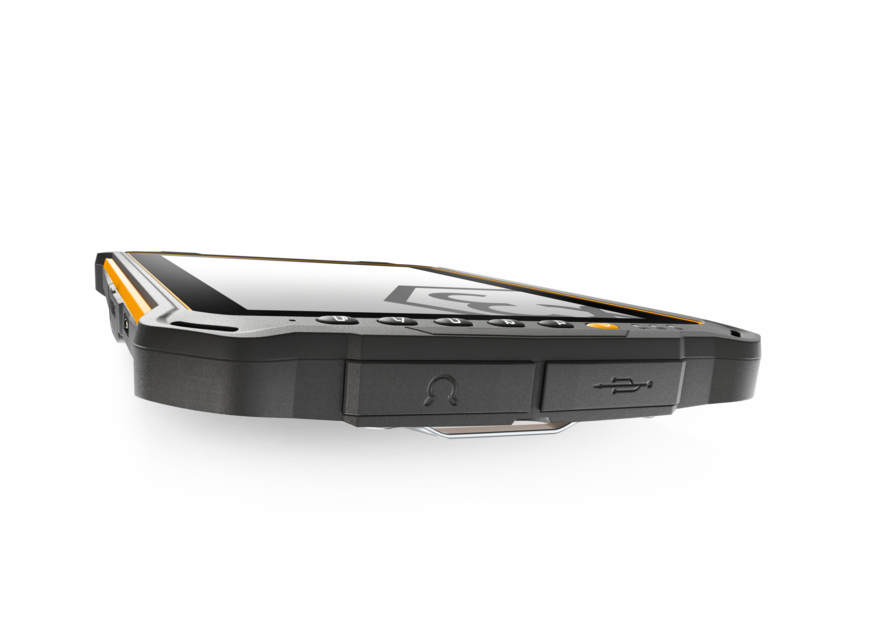

    bottomview IS930.2

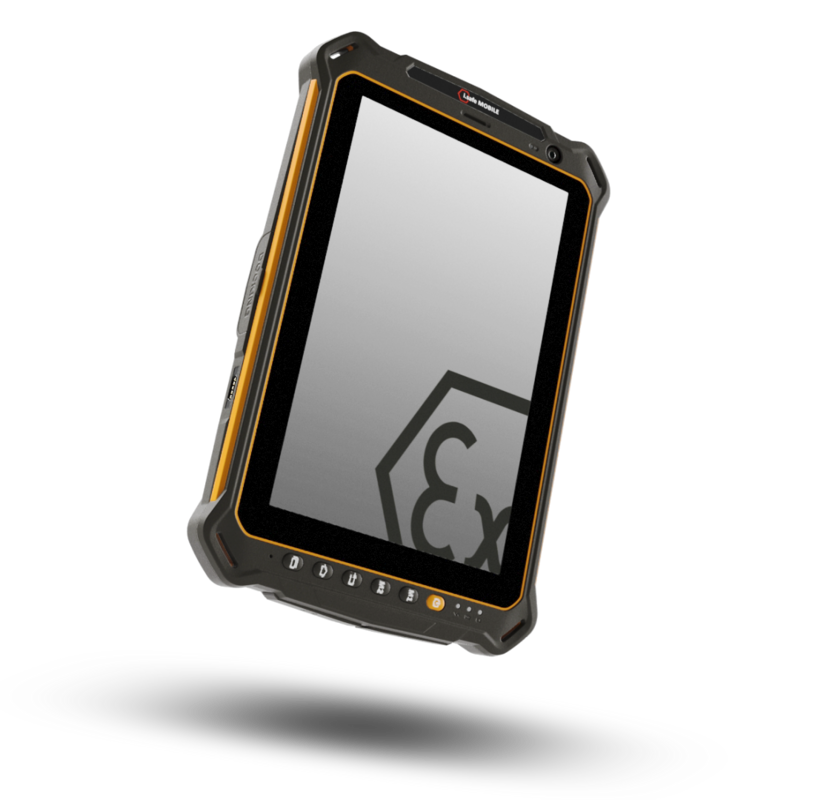

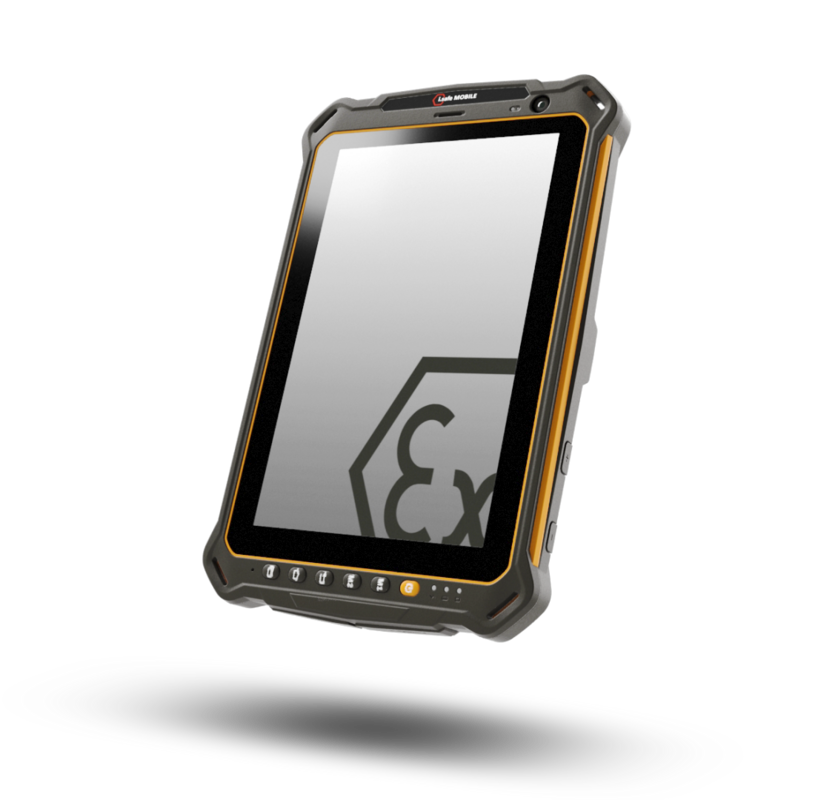

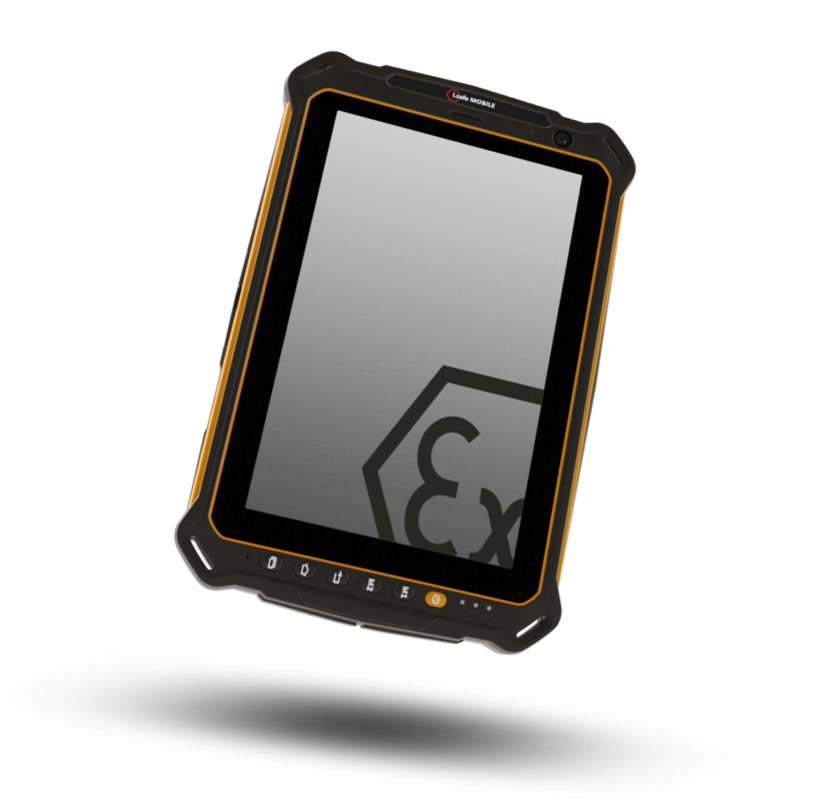

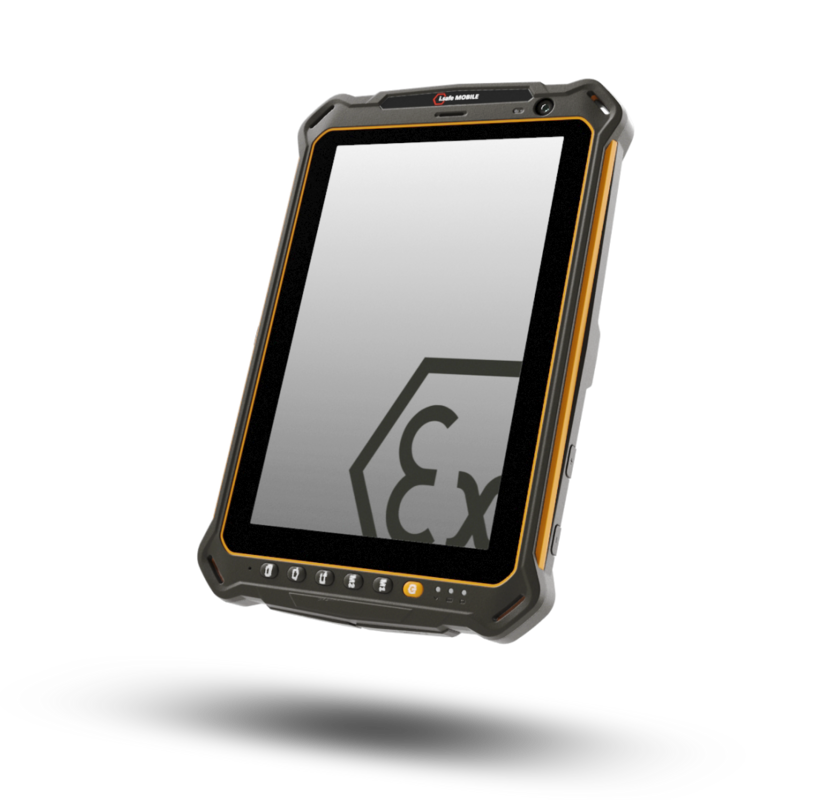

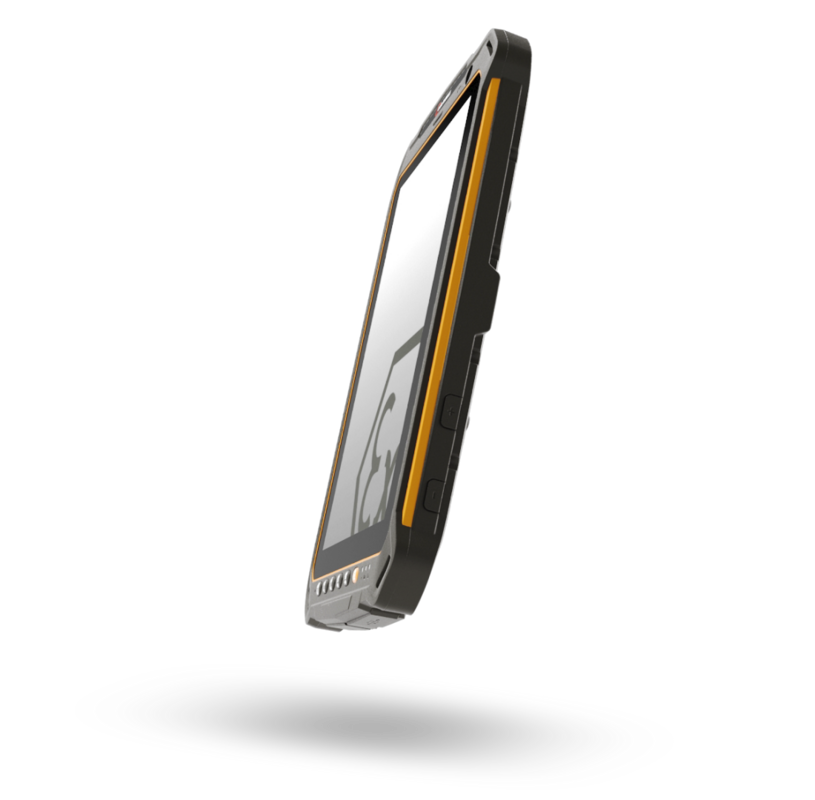

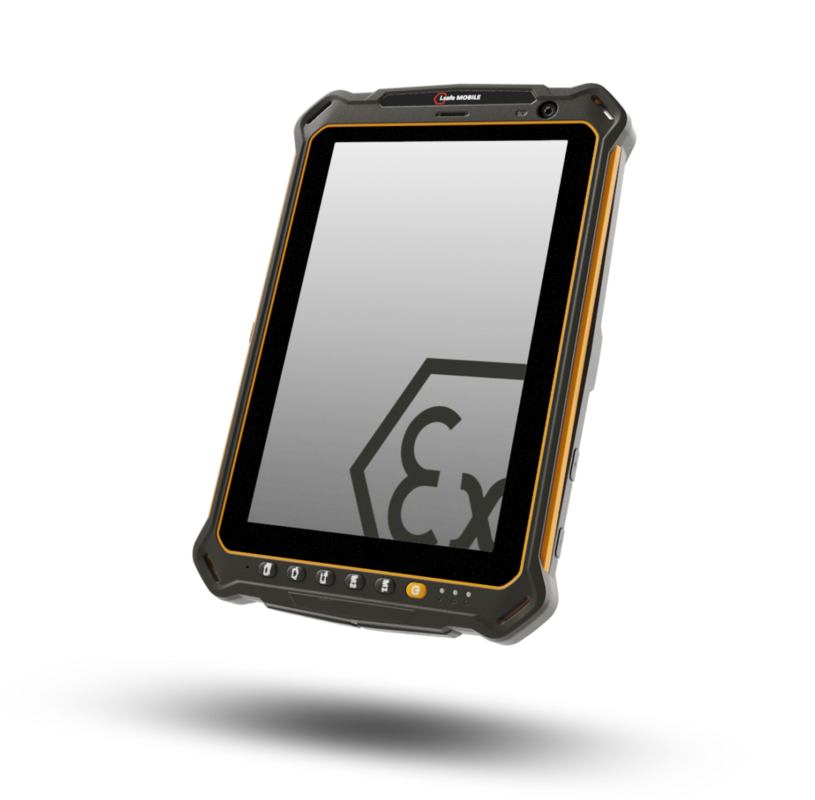

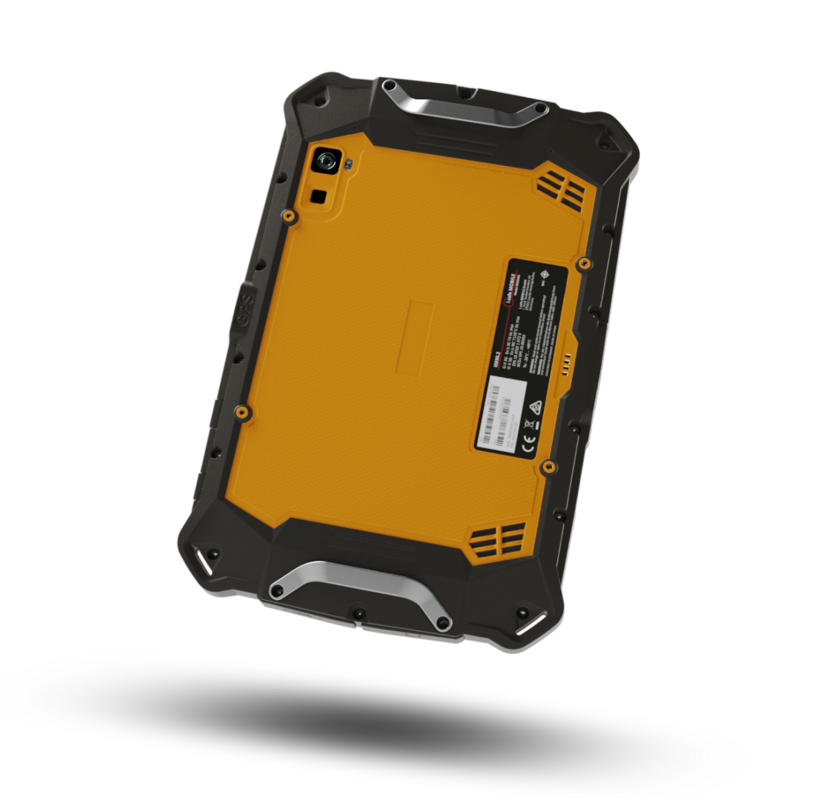

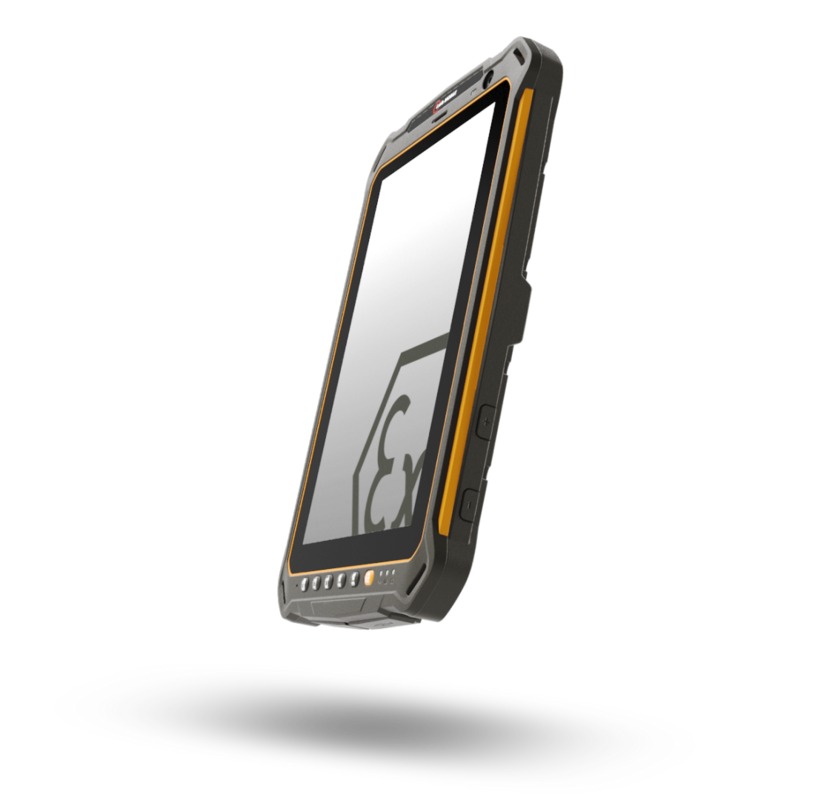

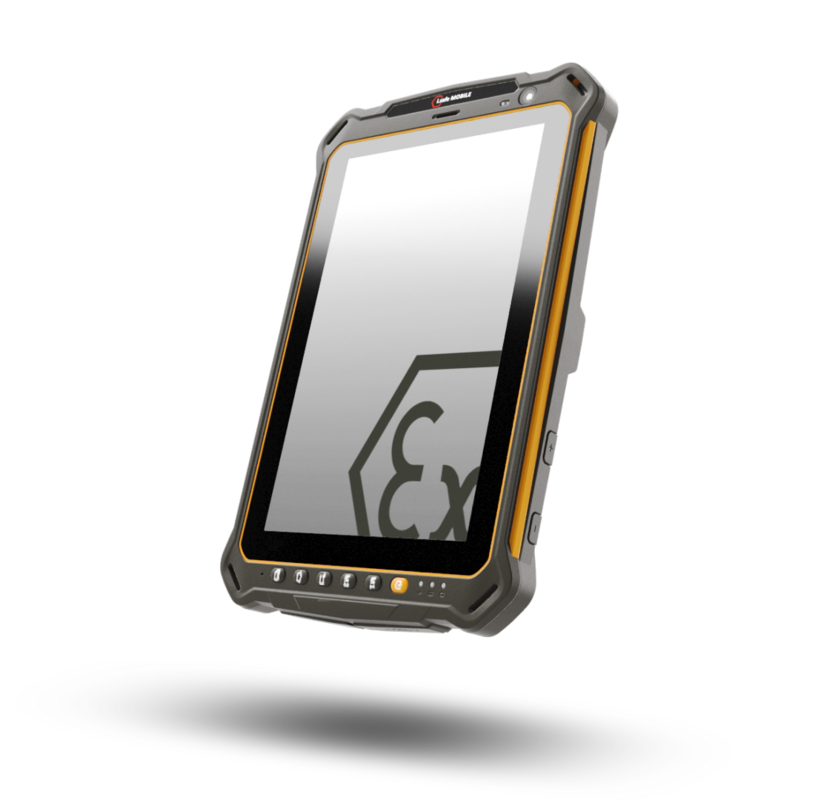

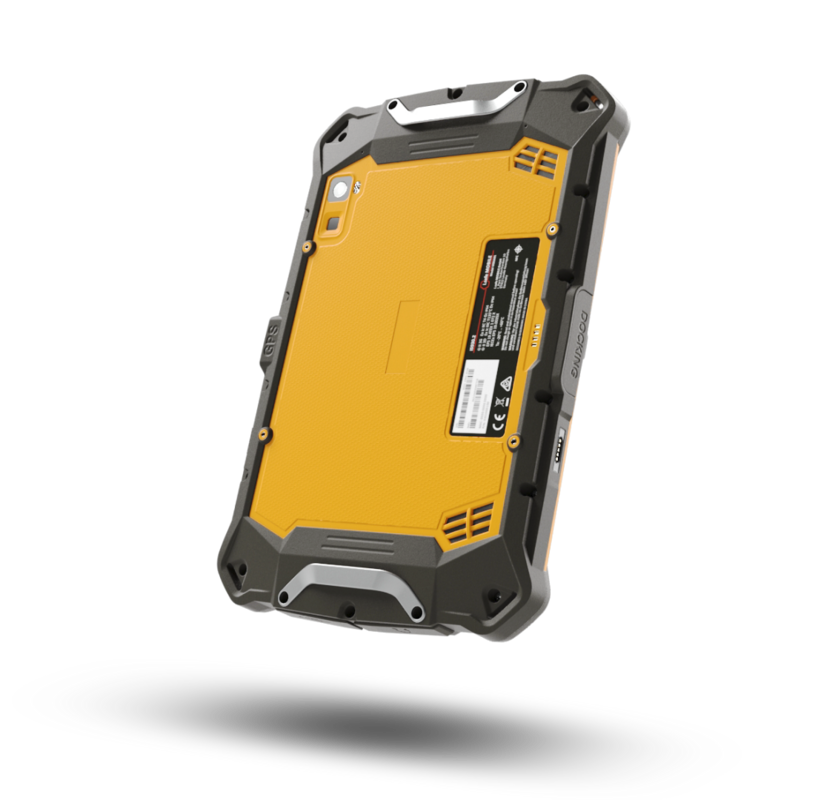

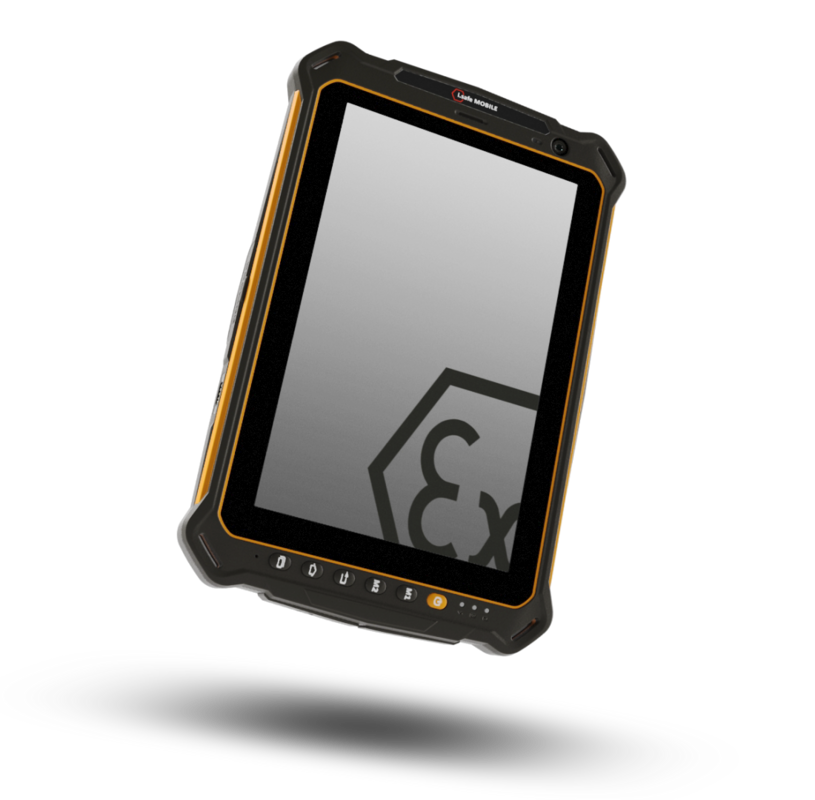

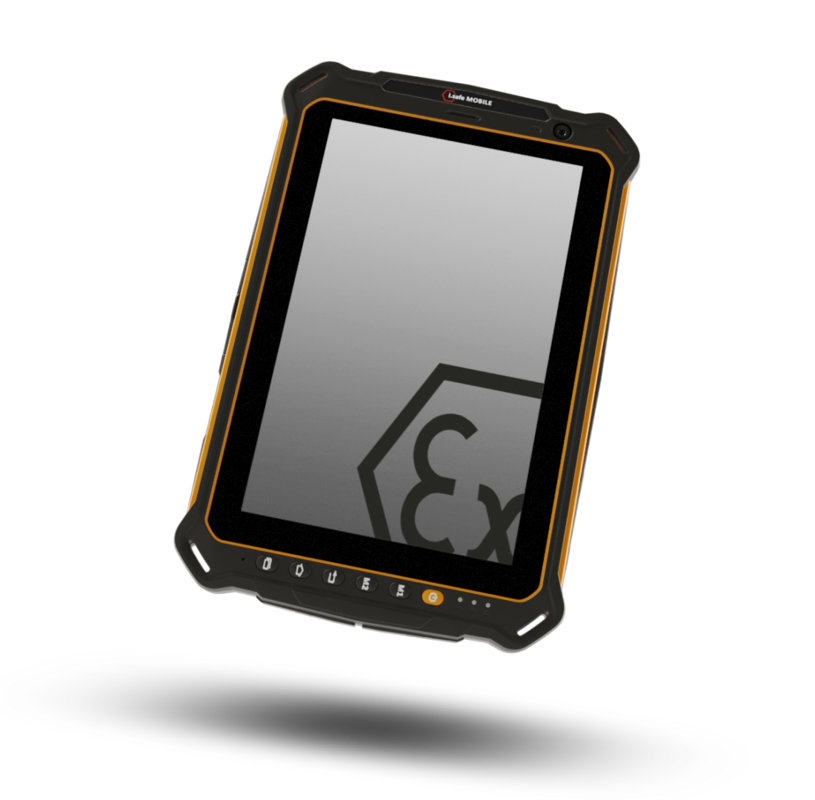

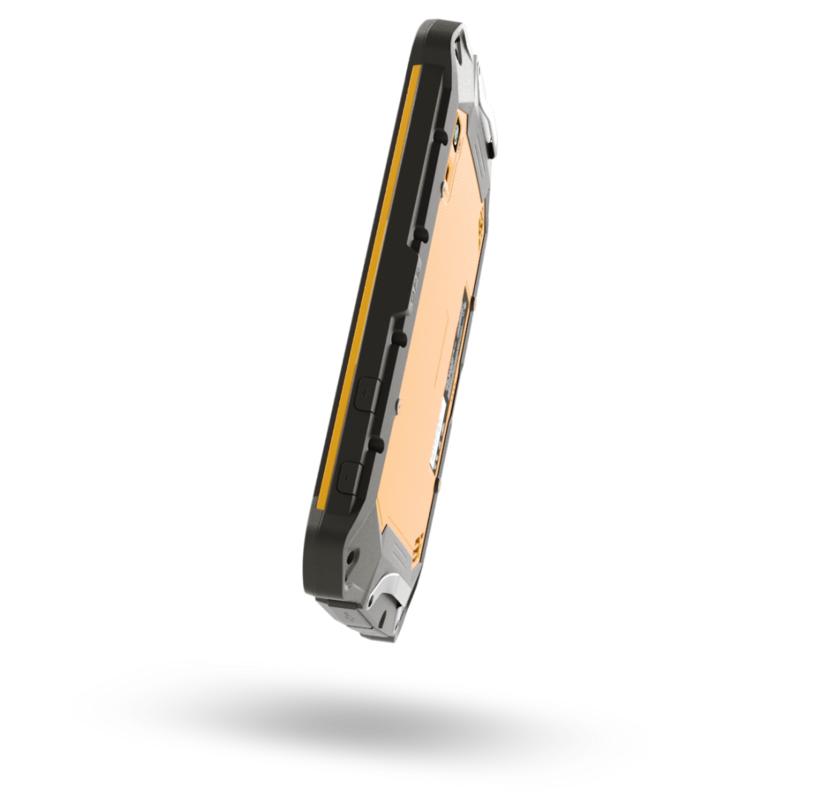

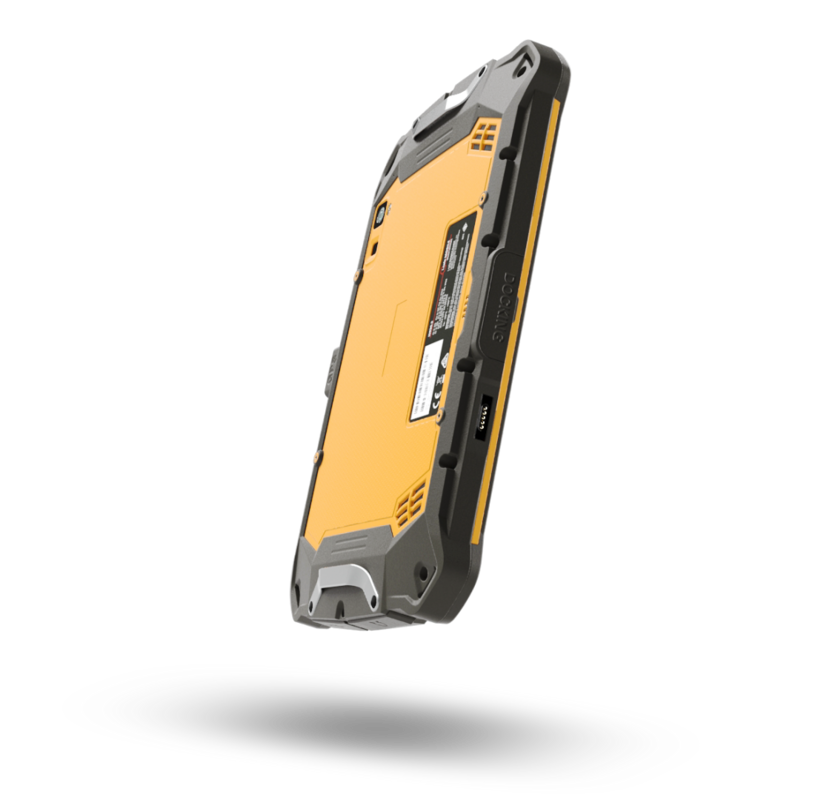

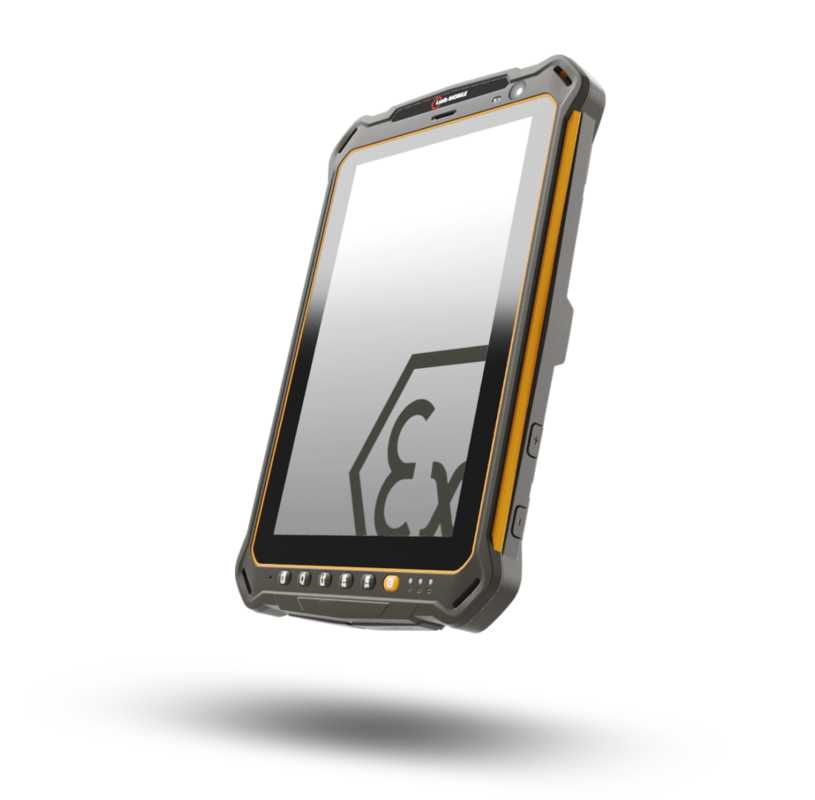

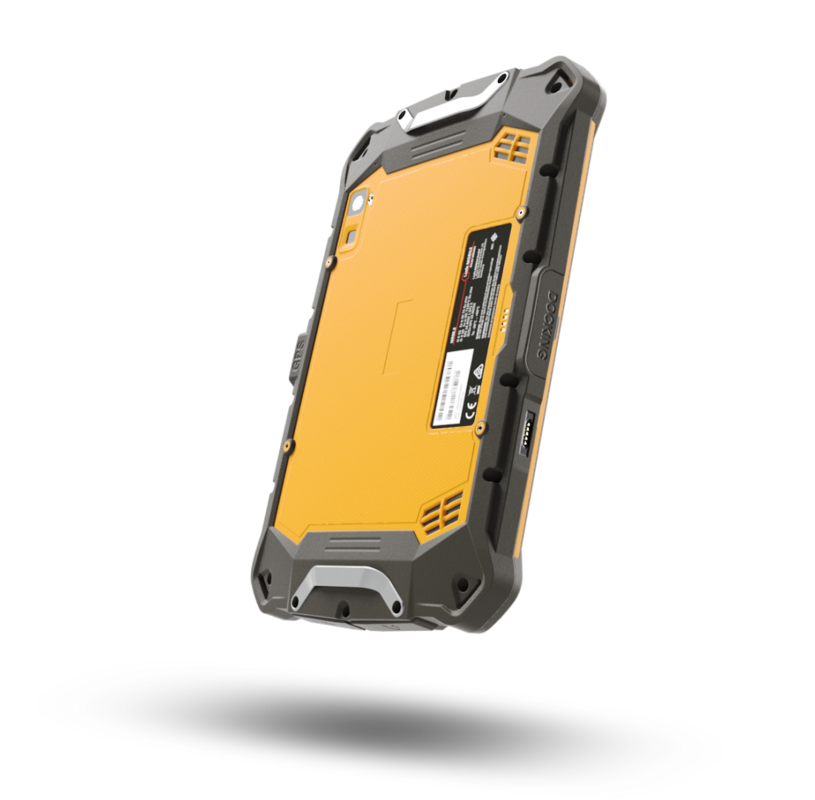

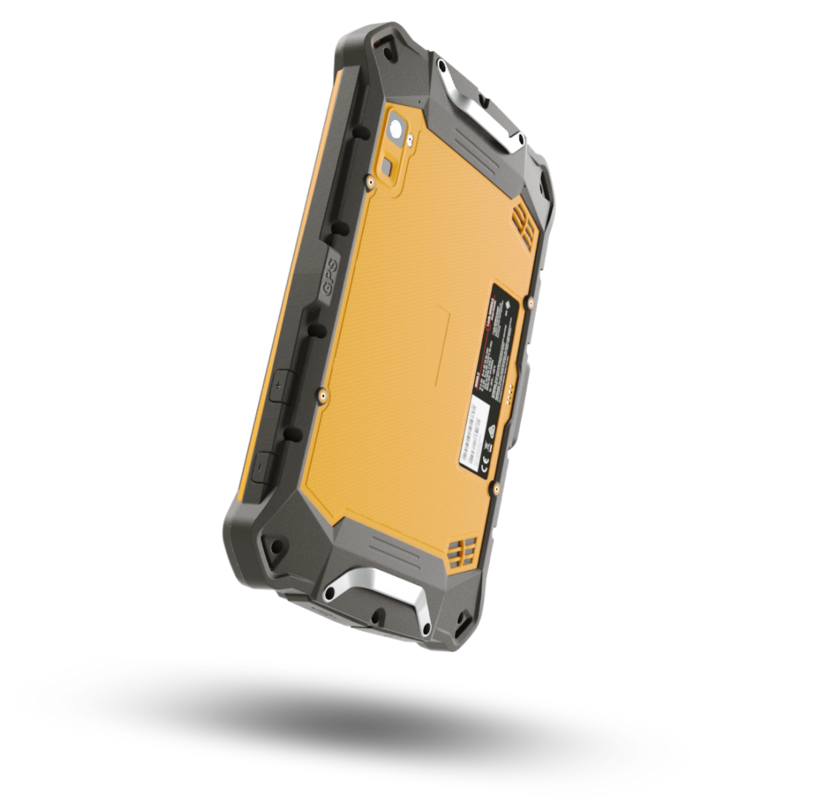

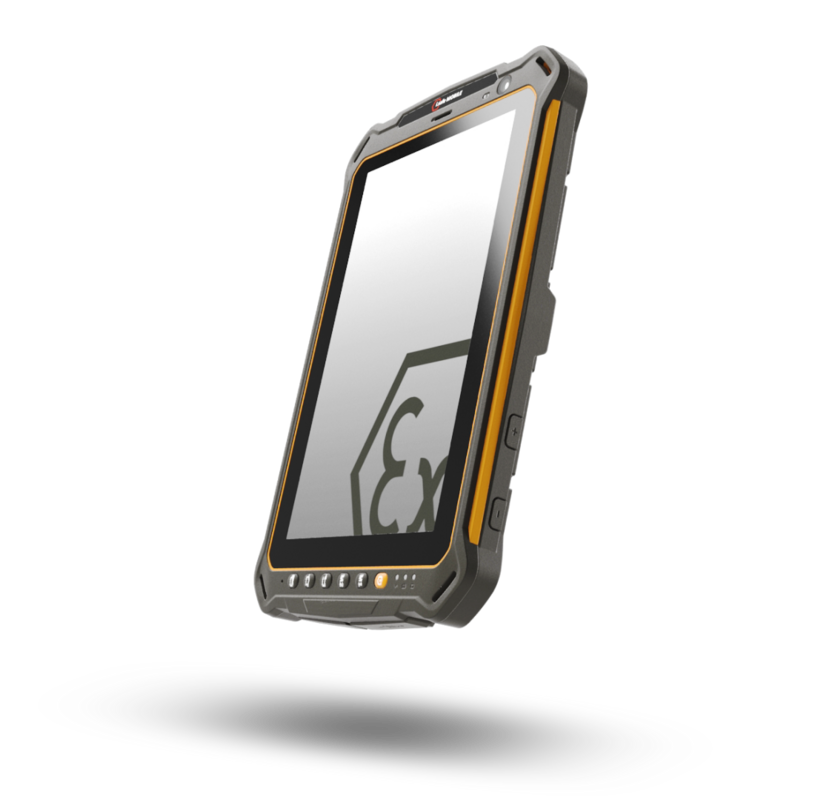

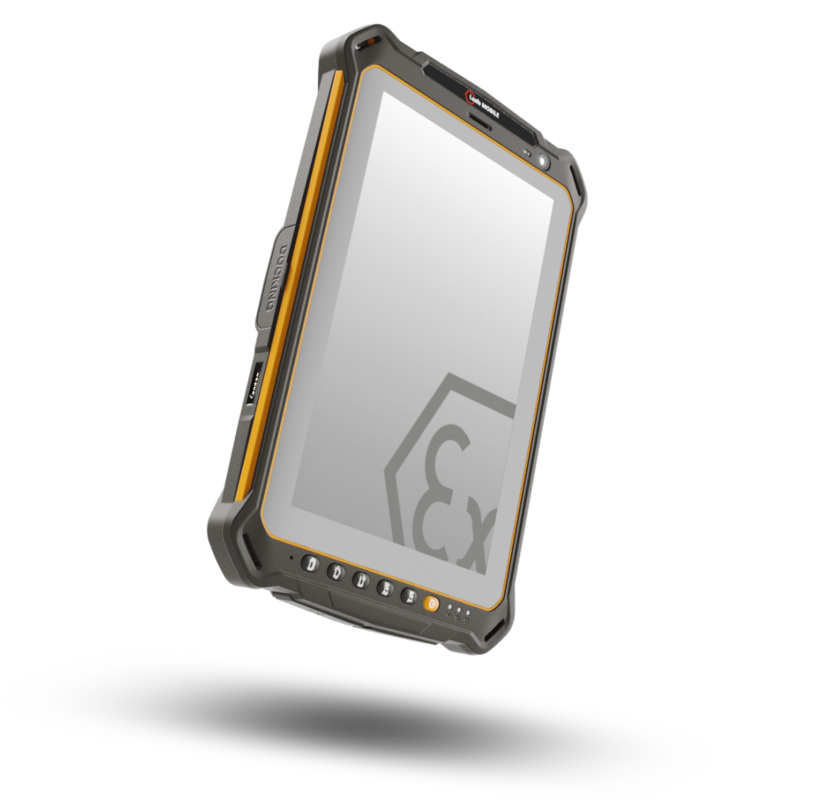

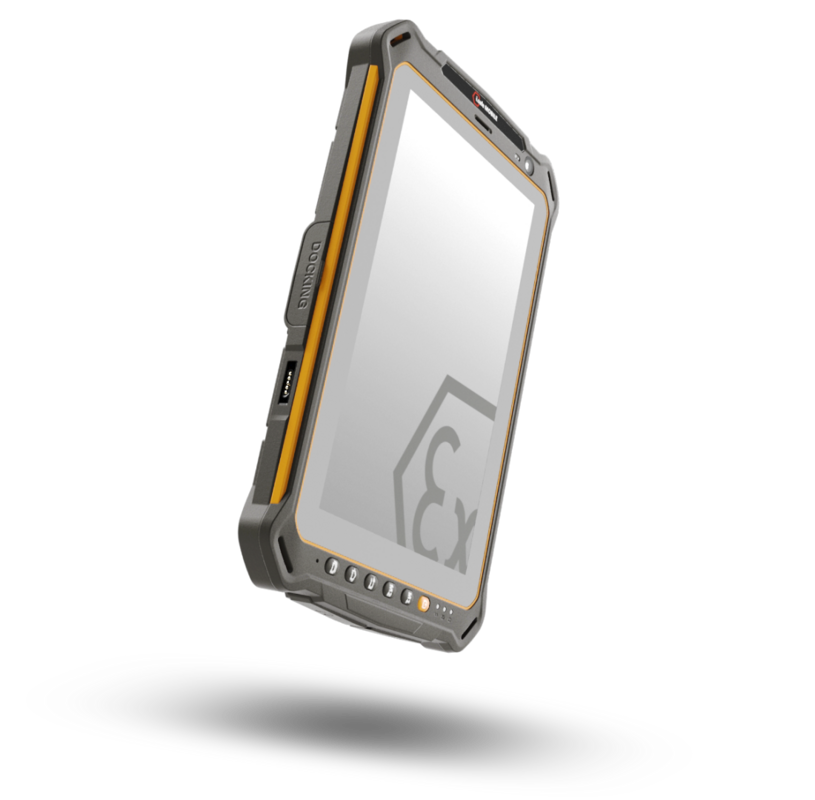

    ⭠ 360° ⭢

    Advantages

    • Ideal for IoT maintenance applications
    • Individually programmable keys
    • Tough, high-performance device
    • Easy to use and easy to carry and hold thanks to the hand strap
    • Android Enterprise Recommended
    • Zero-touch capable
    • Display can be operated with gloves

    Technical features

    Operating systemAndroid™ 10
    ProcessorQualcomm Snapdragon SDM660 Octa Core
    Memory4 GB RAM
    64 GB internal memory
    microSD to 512 GB
    Frequencies2G GSM 850/900/1800/1900 MHz
    3G WCDMA B1/2/4/5/8
    4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
    4G LTE-TDD: B38/B39/B40/B41
    4G LTE-TD: B34/B39
    DimensionsSize: 237 x 156 x 22 mm
    Weight: 866 g
    Display8,0" (20,32 cm)
    usable with gloves
    Battery8400 mAh
    Camera13 MP AF rear
    5 MP FF front
    ConnectivityWi-Fi 2.4 GHz + Wi-Fi 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot
    Bluetooth® 5
    GPS, A-GPS, Glonass, Beidou
    Near Field Communication
    Types of protectionIP68 dust-/waterproof
    MIL-STD 810H
    Usable from -20 °C to +60 °C

    Further features

    SOS-Taste
    SOS key for loneworker protection
    LWP ready (third party application required, based on country specific regulations)
    Verstärkter Lautsprecher
    Amplified loudspeaker
    Sensors
    Accelerometer, Gyroscope, Magnetic, Temperature and Humidity, Proximity sensors
    SIM cart
    Micro-SIM
    Ladeoptionen (Desktopcharger, Magnetic)
    USB-C, Magnetic charger port, Docking Station, Multi Charger
    Download datatsheet | pdf ▪ 1 MB

    Approvals

    ATEX (Europe)
    ATEX (Europe)
    approved
    II 3G Ex ic IIC T4 Gc IP64
    II 3D Ex ic IIIC T135°C Dc IP64
    IECEx (International)
    IECEx (International)
    approved
    Ex ic IIC T4 Gc IP64
    Ex ic IIIC T135°C Dc IP64
    NEC500 (North America)
    NEC500 (North America)
    approved
    Class I Div. 2 Groups A, B, C, D, T4
    Class II Div. 2 Groups F, G  T135°C
    Class III Div. 2
    EAC (Russia)
    EAC (Russia)
    approved
    2Ex ic IIC T4 Gc X
    Ex ic IIIC T135°C Dc X
    SANS (South Africa)
    SANS (South Africa)
    approved
    Ex ic IIC T4 Gc IP64
    Ex  ic IIIC T135°C Dc IP64

    Contents

    Included
    • Tablet with integrated battery
    • Hand Strap
    • Power Adapter universal
    • USB-C Cable
    • Display Protection Foil
    • Safety Instructions
    • Quick Start Manual
    package IS930.2
    APPROVED ACCESSORIES FOR IS930.2
    Charging systems
    IS-DS930.1 Docking Station Set
    Product details
    IS-DS930.1 Docking Station Set
    Docking Station DS930.1 to charge and connect the i.safe MOBILE tablets of the IS930 series. With the Gigabit network connection (RJ45 Ethernet) the tablets can be quickly integrated into the local network. Connections: 1 x power supply, 1 x RJ45 Ethernet, 3 x USB (support for low power device) and 1 x service interface. Size: 135 x 205 x 274 mm (L x W x H).
    Charging systems
    IS-MC930.1 Multi Charger Set
    Product details
    IS-MC930.1 Multi Charger Set
    Multi Charger for six devices. Size: 600 x 250 x 115 mm (L x W x H). Compatible for IS930.1, IS930.M1, IS930.2, IS930.RG und IS910.1, IS910.2.
    Leather Cases
    Leather Case black IS930.x/IS910.x
    Product details
    Leather Case black IS930.x/IS910.x
    Made of high quality leather, black. With adjustable Shoulder Strap and holder for a stylus. Suitable for the devices  IS930.1, IS930.M1, IS930.2, IS930.RG and IS910.1, IS910.2.
    Leather Cases
    Leather Case yellow IS930.x/IS910.x
    Product details
    Leather Case yellow IS930.x/IS910.x
    Made of high quality leather, yellow. With adjustable neck strap and holder for a stylus. Suitable for the devices  IS930.1, IS930.M1, IS930.2, IS930.RG and IS910.1, IS910.2.
    Carrying systems
    Belt Holder with KontaktPro® IS930.x/IS910.x
    Product details
    Belt Holder with KontaktPro® IS930.x/IS910.x
    The belt clip allows the tablets IS910.x and IS930.x to be easily and securely attached to a stable tool belt. With the integrated KontaktPro® adapter, the devices can be plugged in safely and quickly, ensuring one-handed operation. To remove, simply swivel the IS910.x/IS930.x forward 90° and lift it upward from the holder. The device can be remounted in any position. The proven clip technology can benefit many industries; for example, police and fire brigade use it for radios. The belt clip is compatible with the following devices: IS910 series and IS930 series.
    Tragegurt IS930
    Leather Cases
    4-point Harness System IS930.x/IS910.x
    Product details
    Tragegurt IS930
    4-point Harness System IS930.x/IS910.x
    The carrying strap system, made of Teflon impregnated Cordura®, is designed for use with the new Leather Cases of the IS910.x and IS930.x devices. It ensures safe carrying in front of the body and consists of an ergonomic back harness with extra large contact areas on the shoulders. The strap adjustment options allow the working height and angle of inclination to be adjusted as required.
    IS-Stylus
    Others
    IS-Stylus
    Product details
    IS-Stylus
    IS-Stylus
    Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
    Display protection foil IS930
    Display protection foils
    Display Protection Foil IS930.x/IS910.x
    Product details
    Display protection foil IS930
    Display Protection Foil IS930.x/IS910.x
    Rugged plastic foil for an extended protection of the display. Suitable for the devices IS910.1, IS910.2 as well IS930.1, IS930.M1, IS930.2 and IS930.RG.
    Display protection foils
    PanzerGlass™ IS930.x/IS910.x
    Product details
    PanzerGlass™ IS930.x/IS910.x
    PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS930.1, IS930.M1, IS930.2 and IS930.RG.
    4 pont strap IS930
    Leather Cases
    Shoulder Strap for Leather Case IS930.x/IS910.x
    Product details
    4 pont strap IS930
    Shoulder Strap for Leather Case IS930.x/IS910.x
    Made of durable blended fabric, adjustable.
