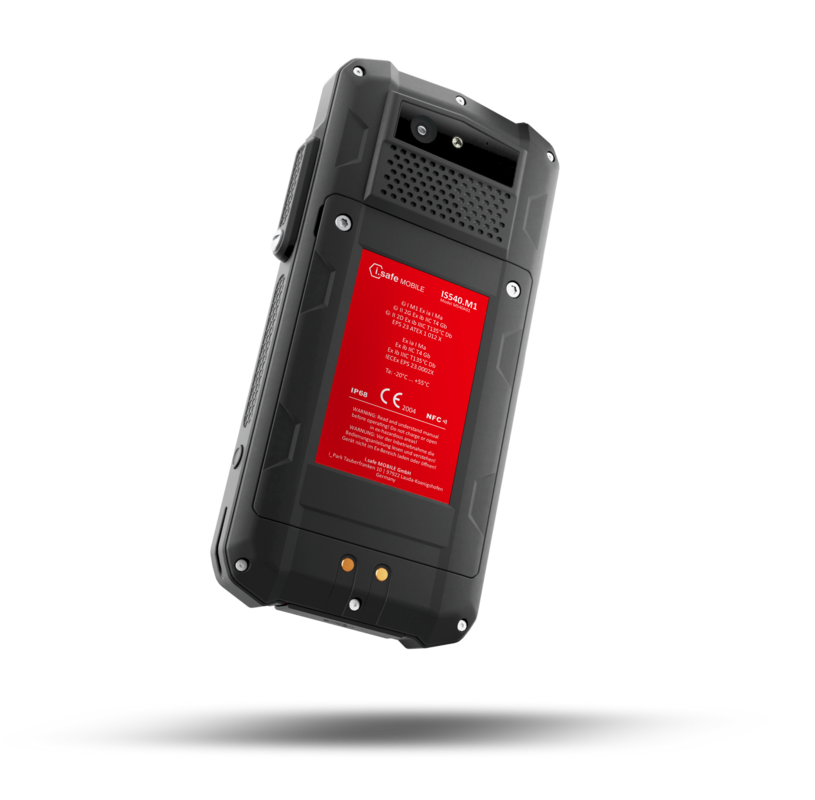

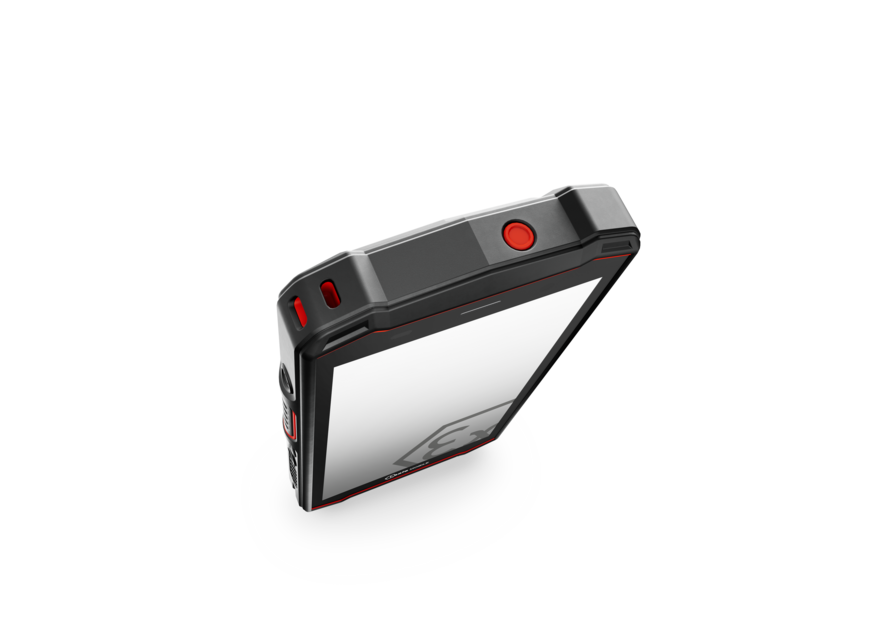

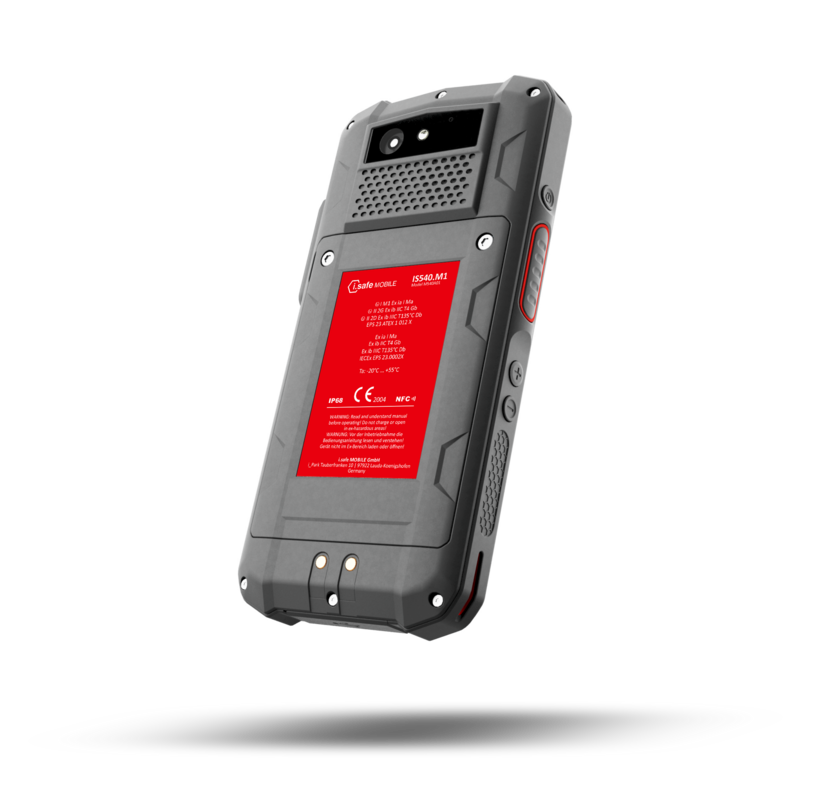

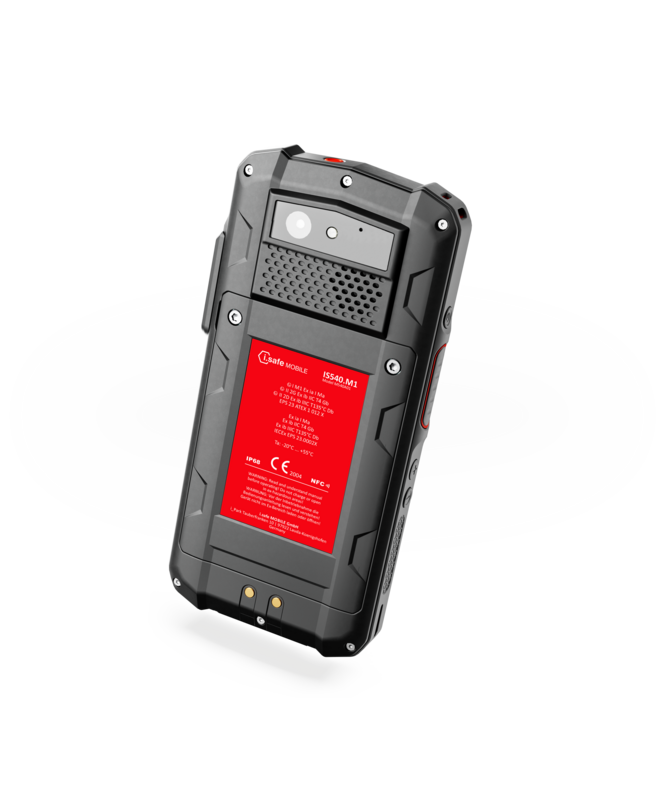

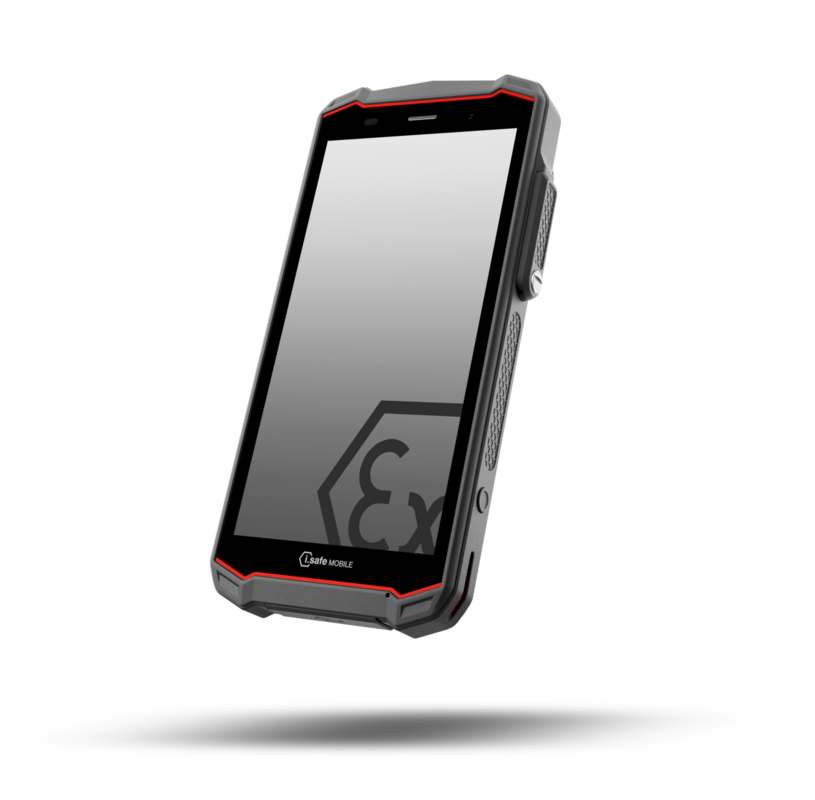

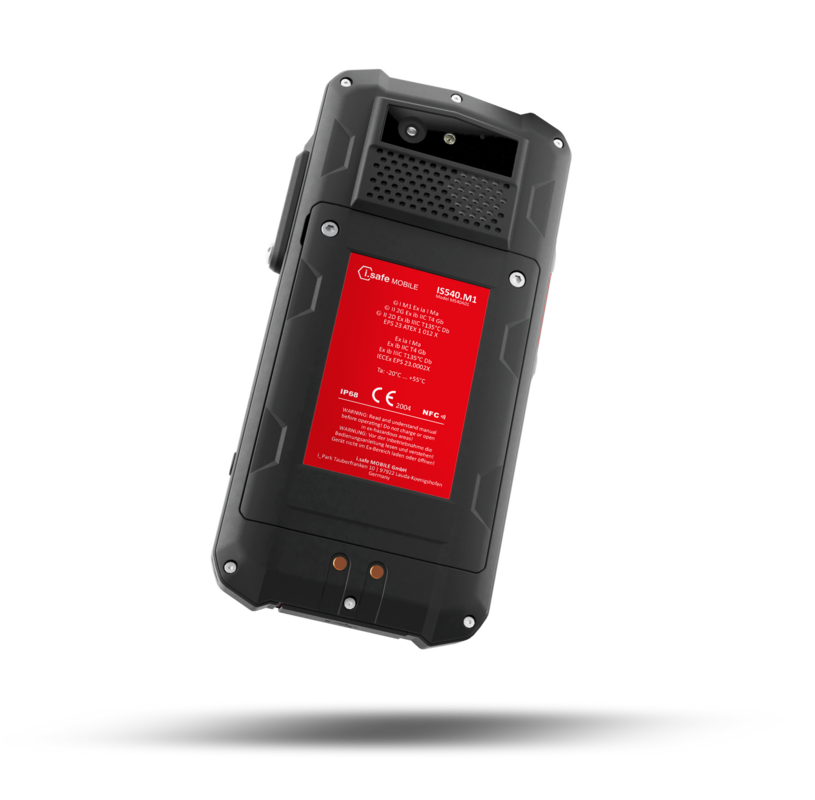

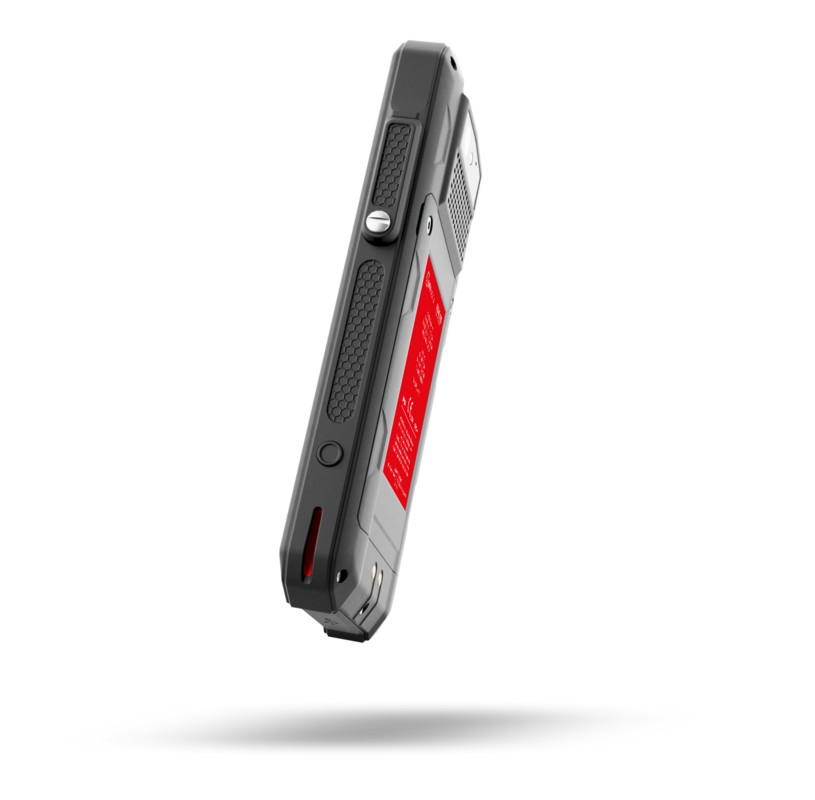

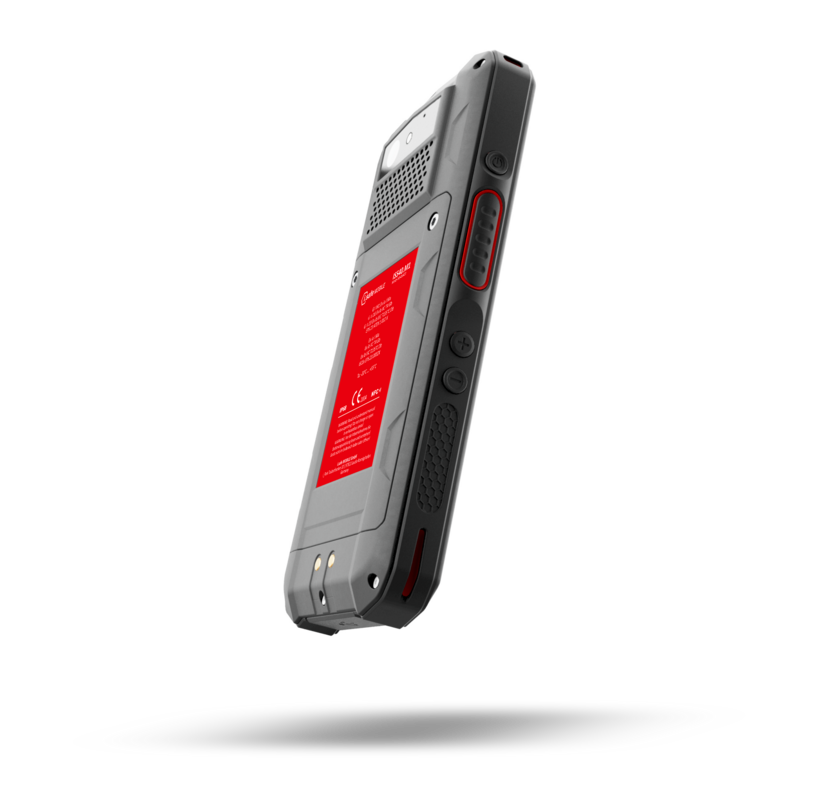

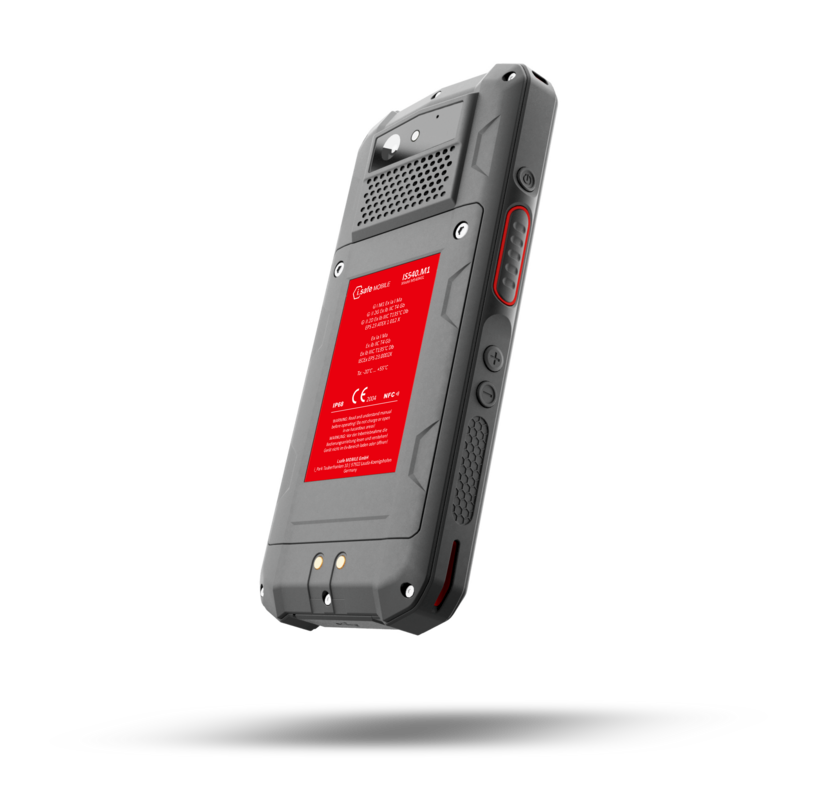

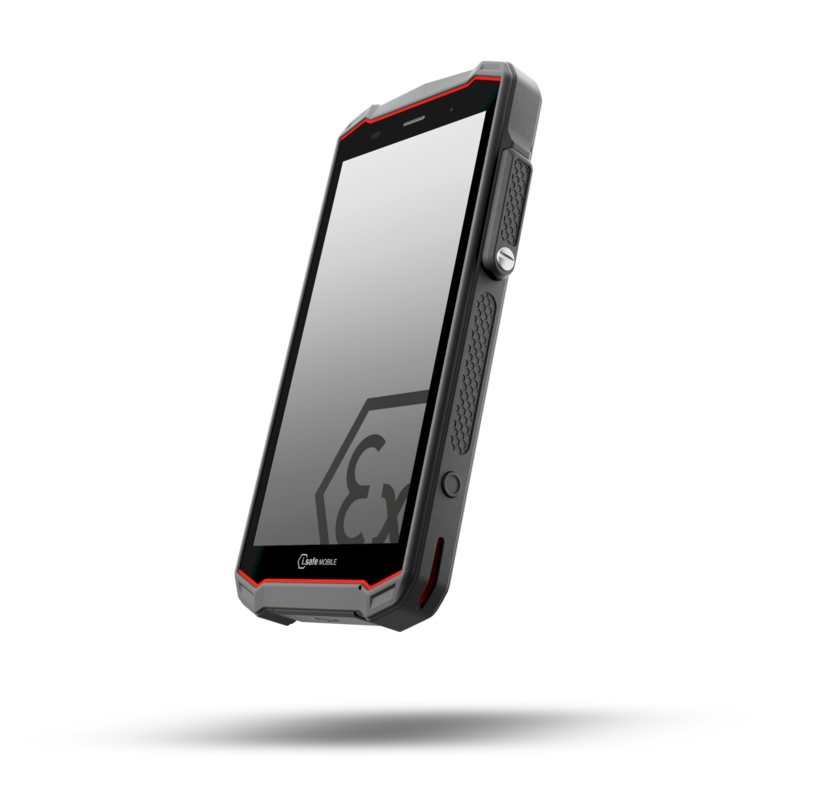

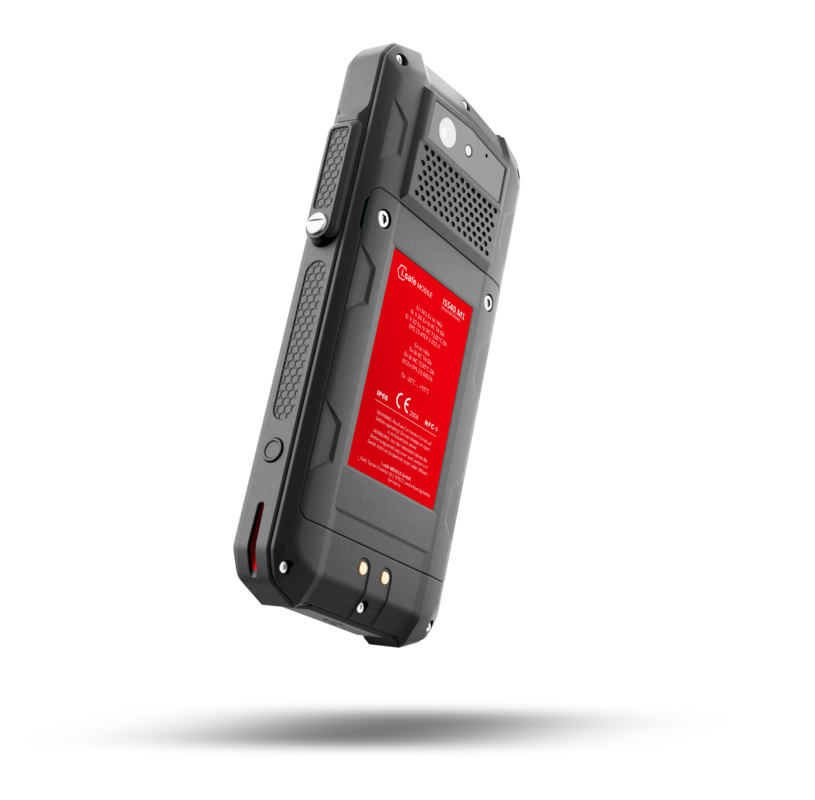

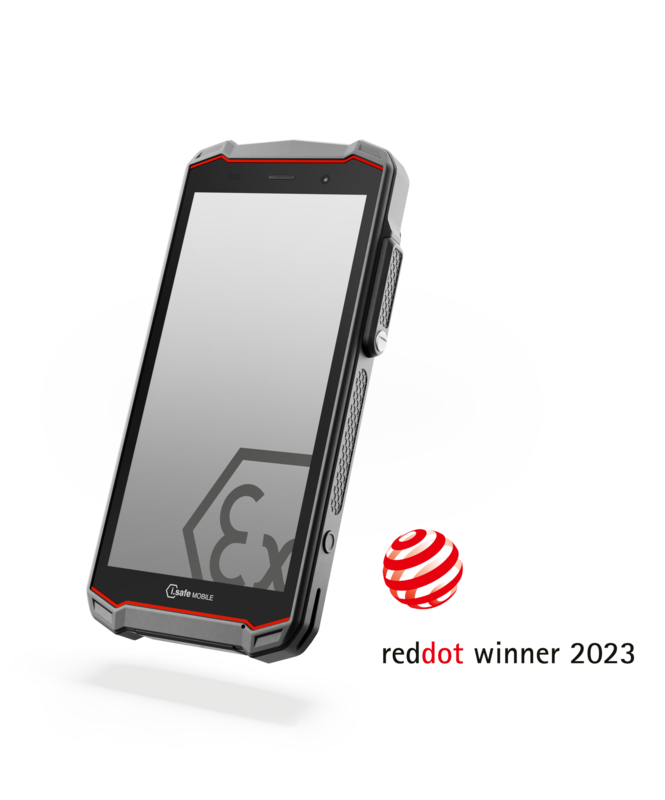

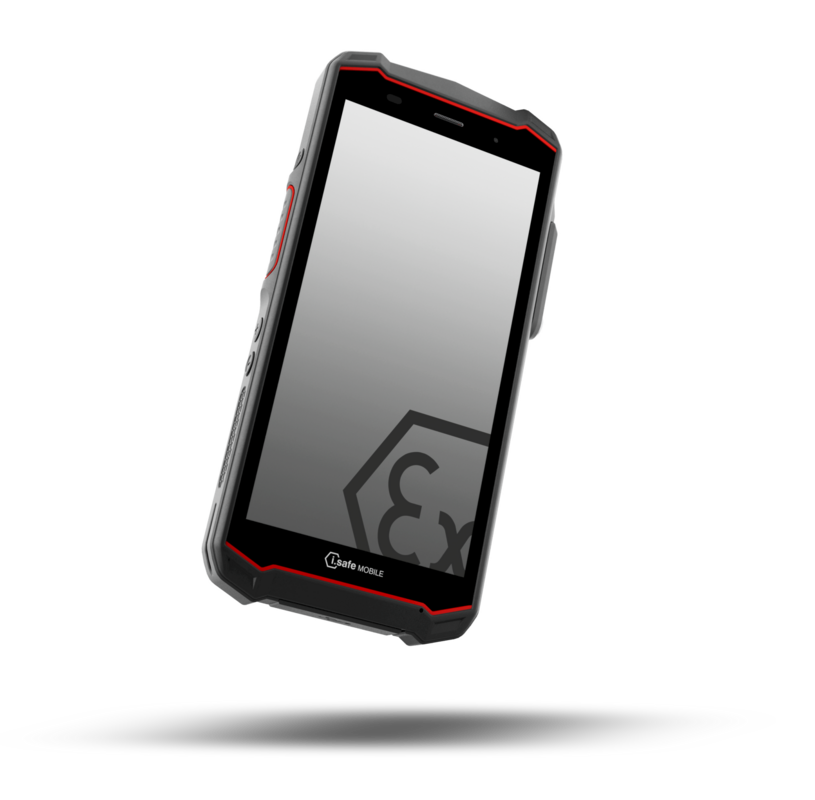

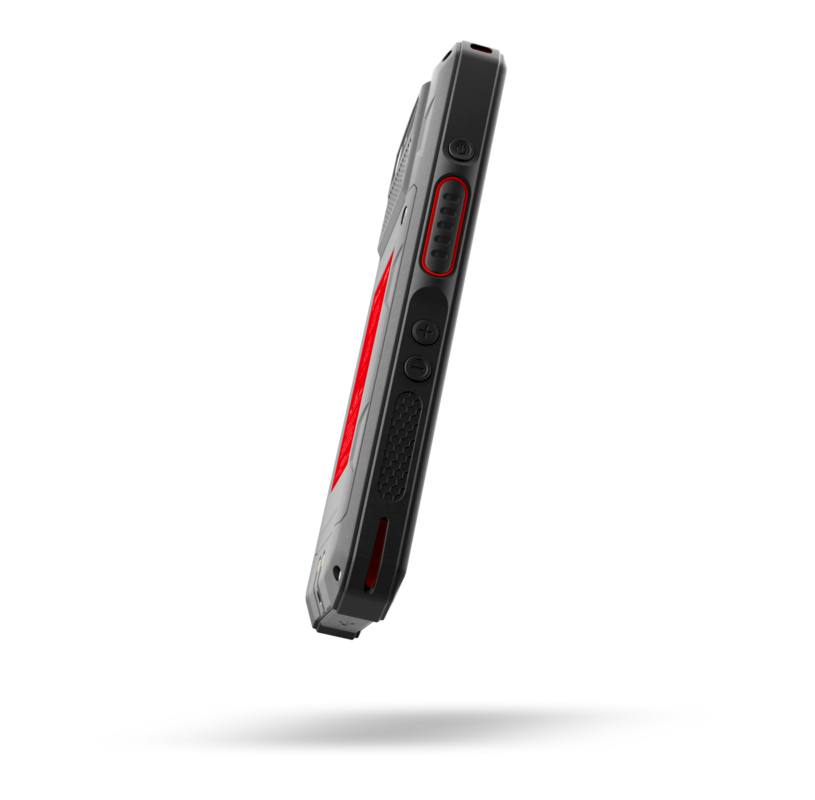

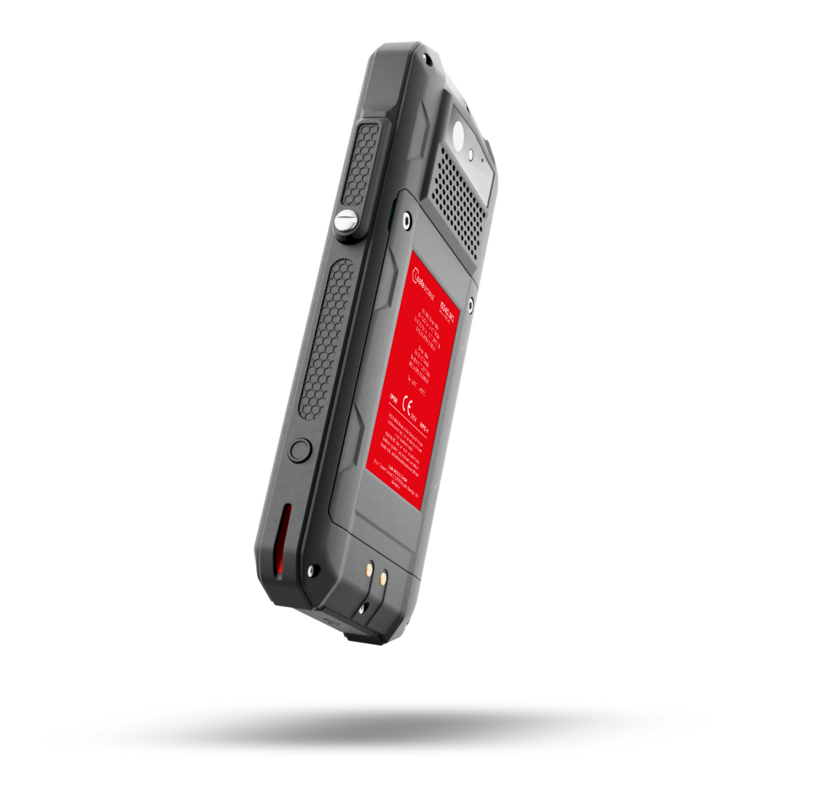

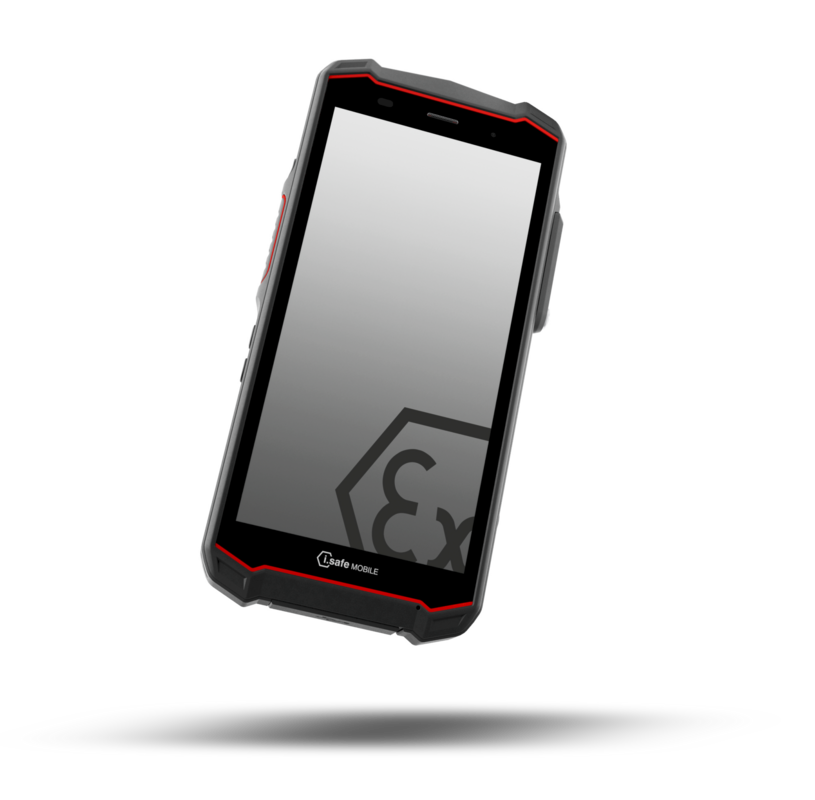

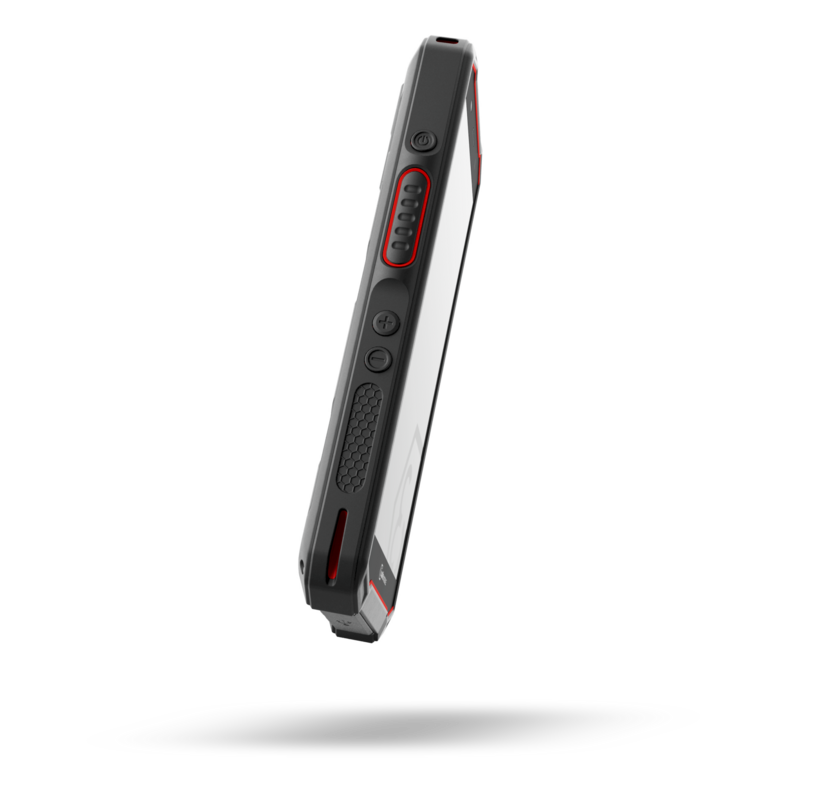

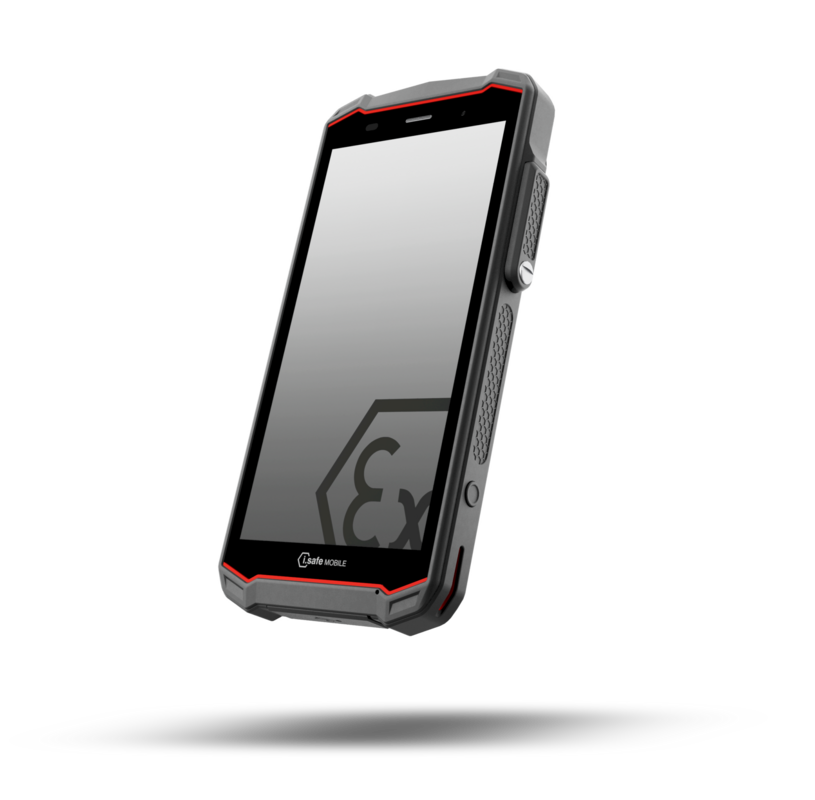

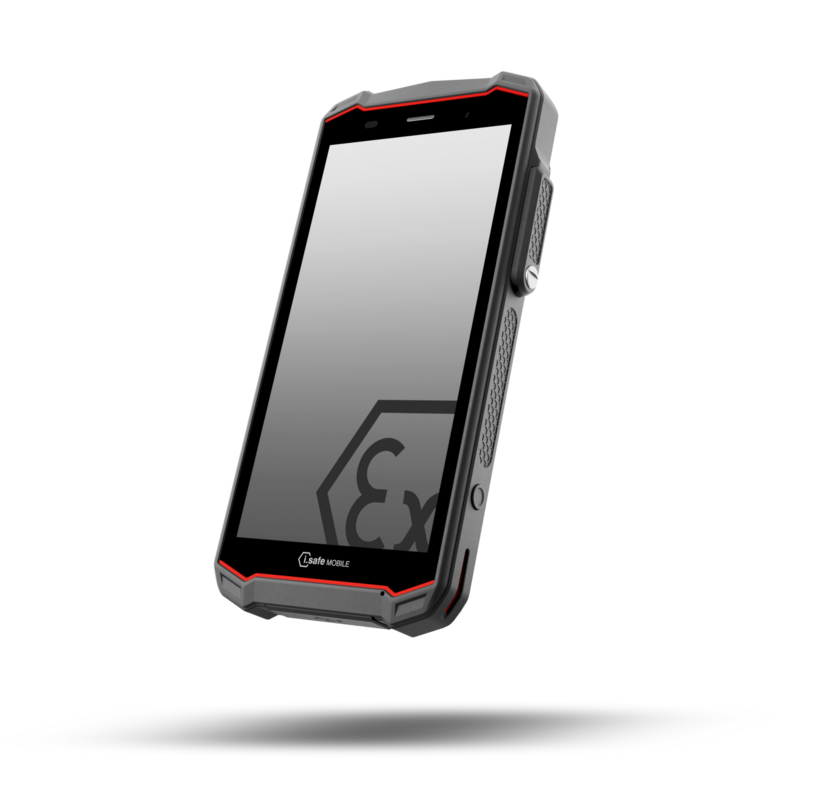

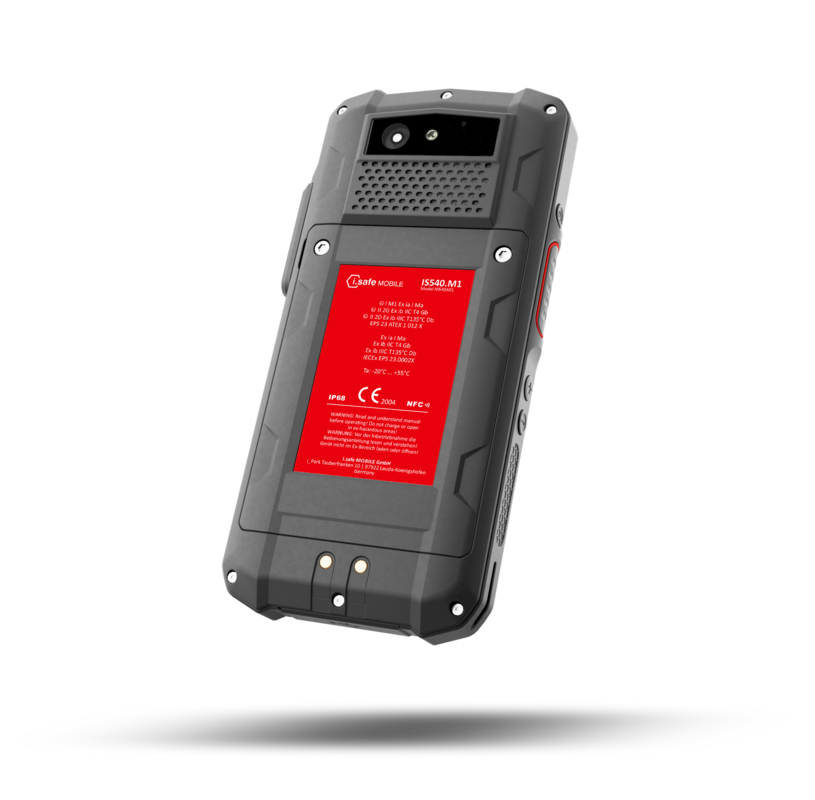

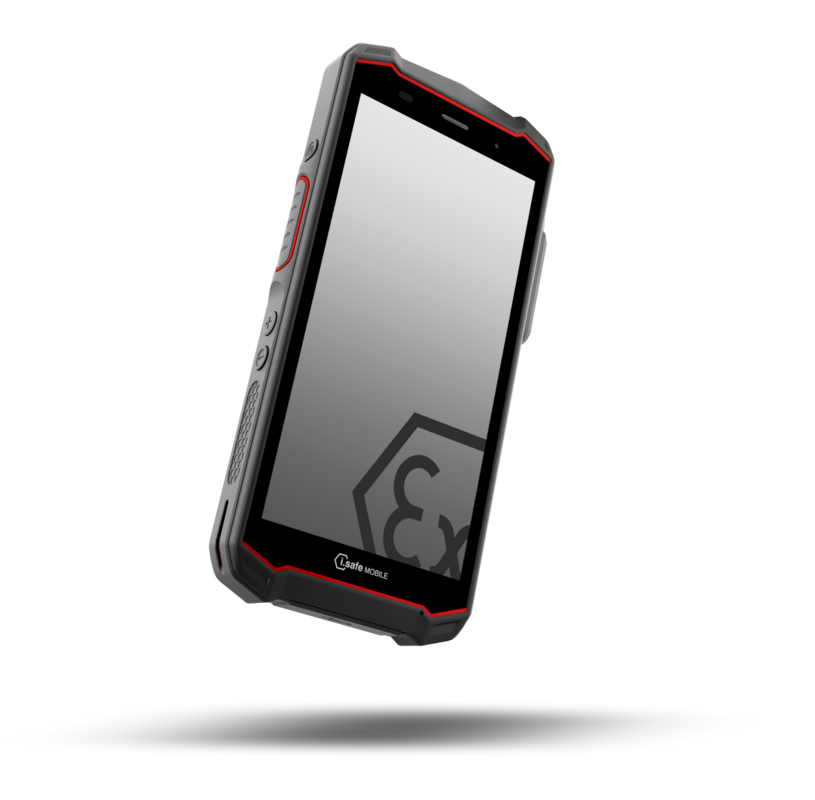

Smartphone mining

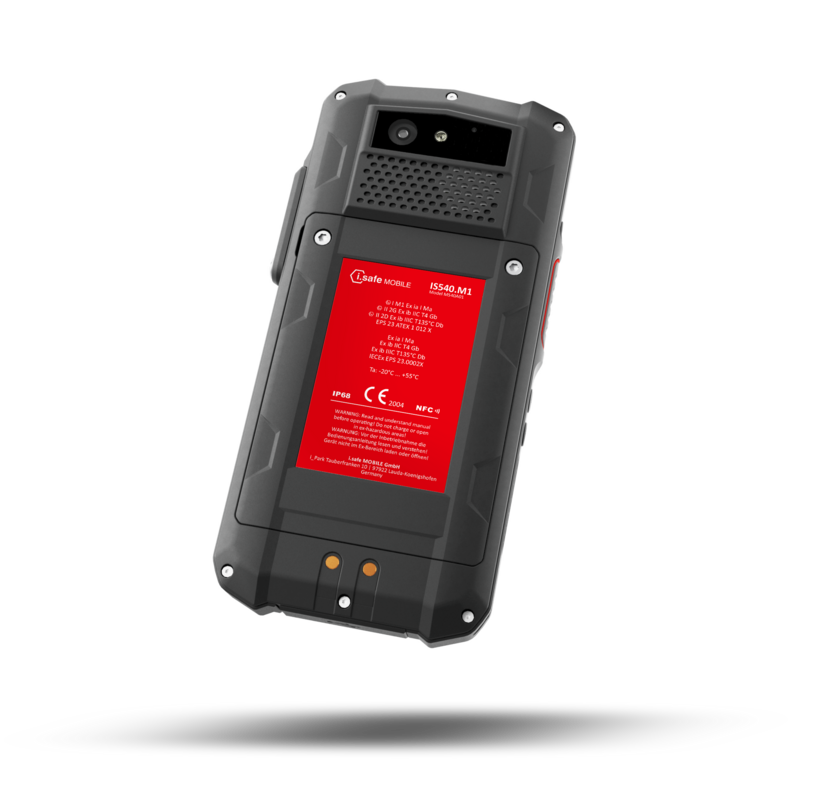

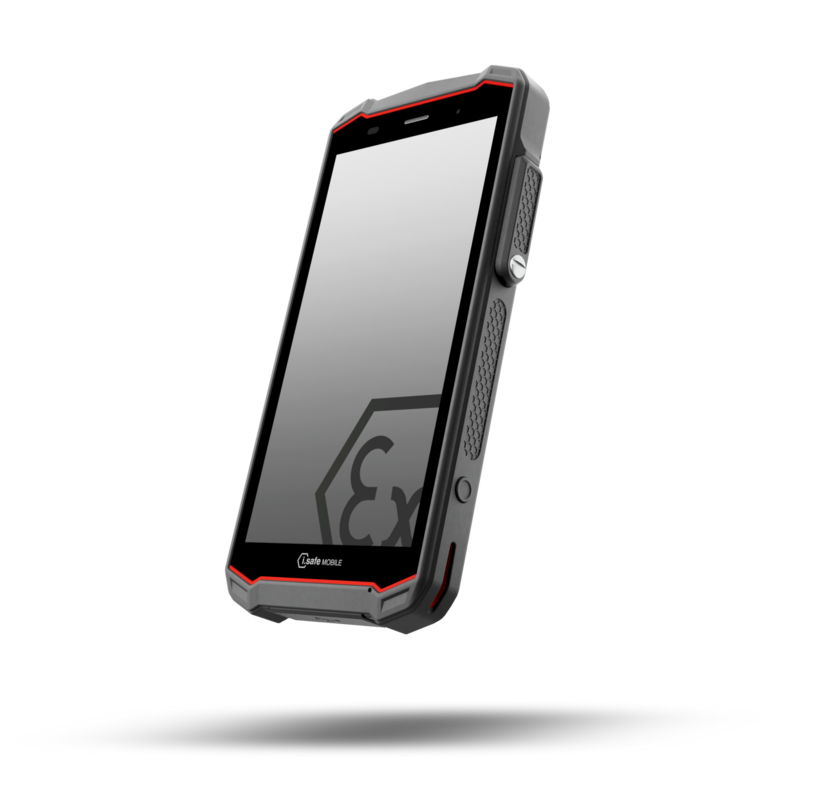

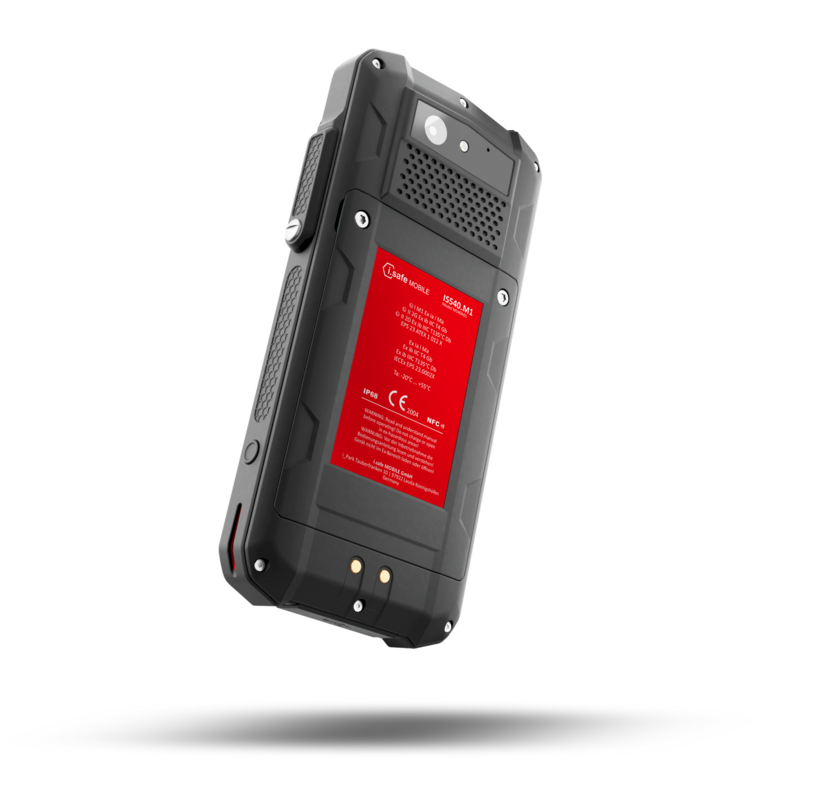

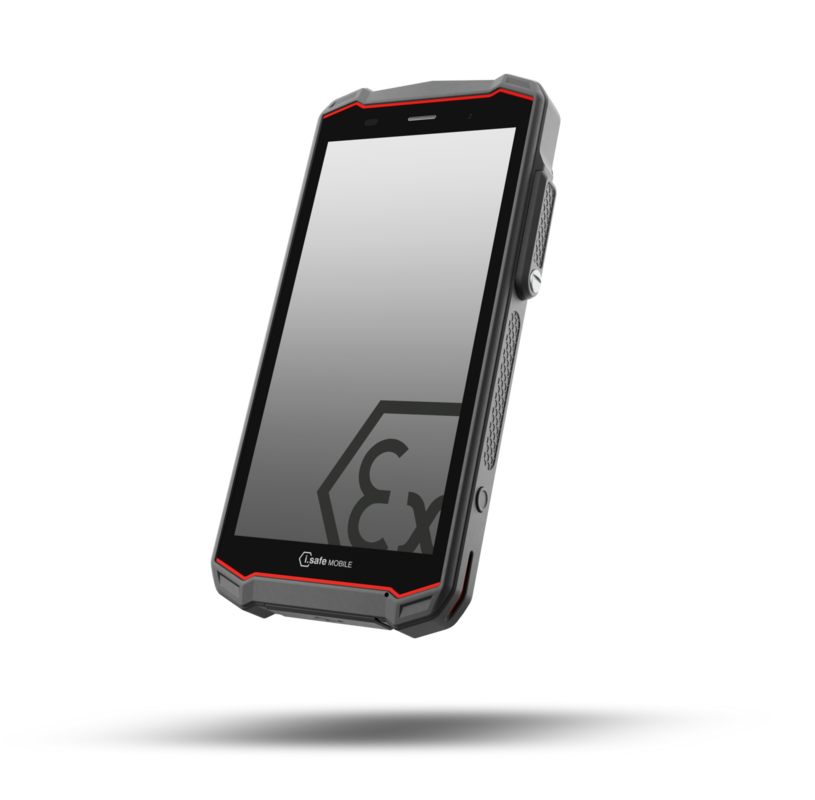

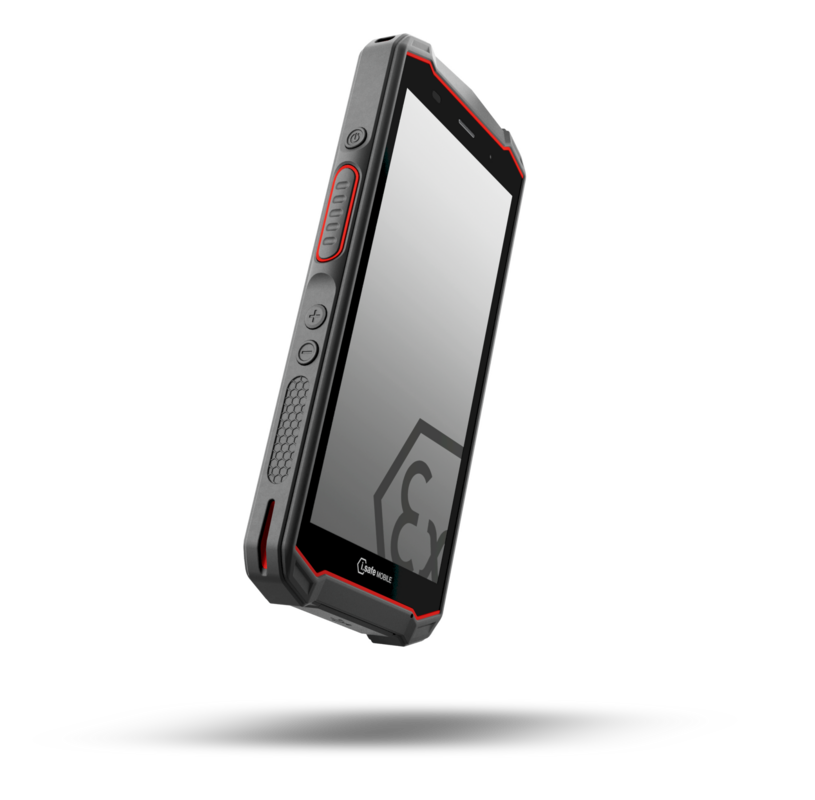

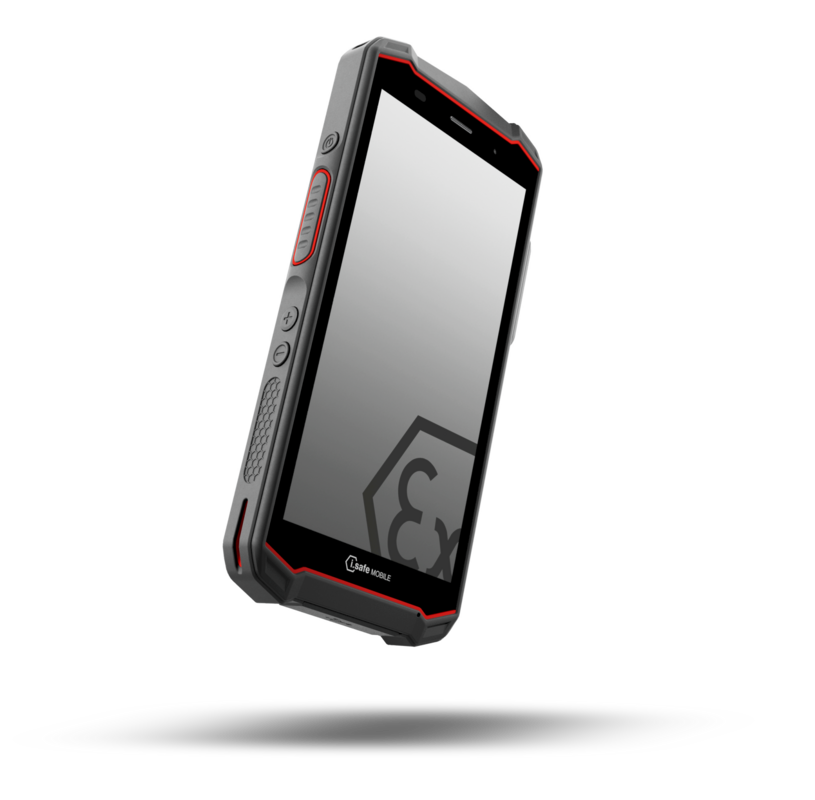

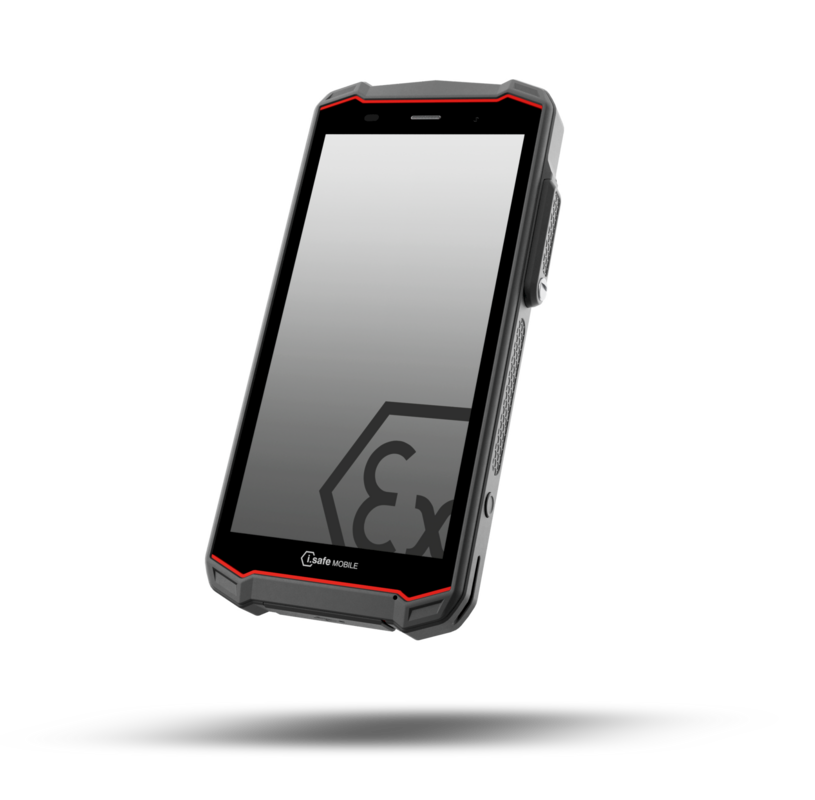

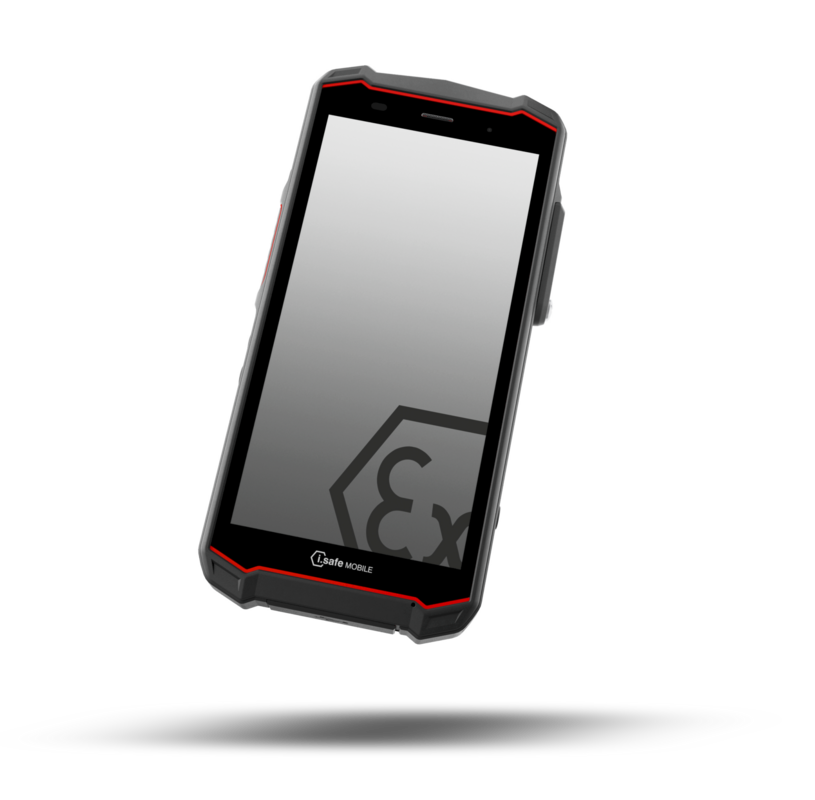

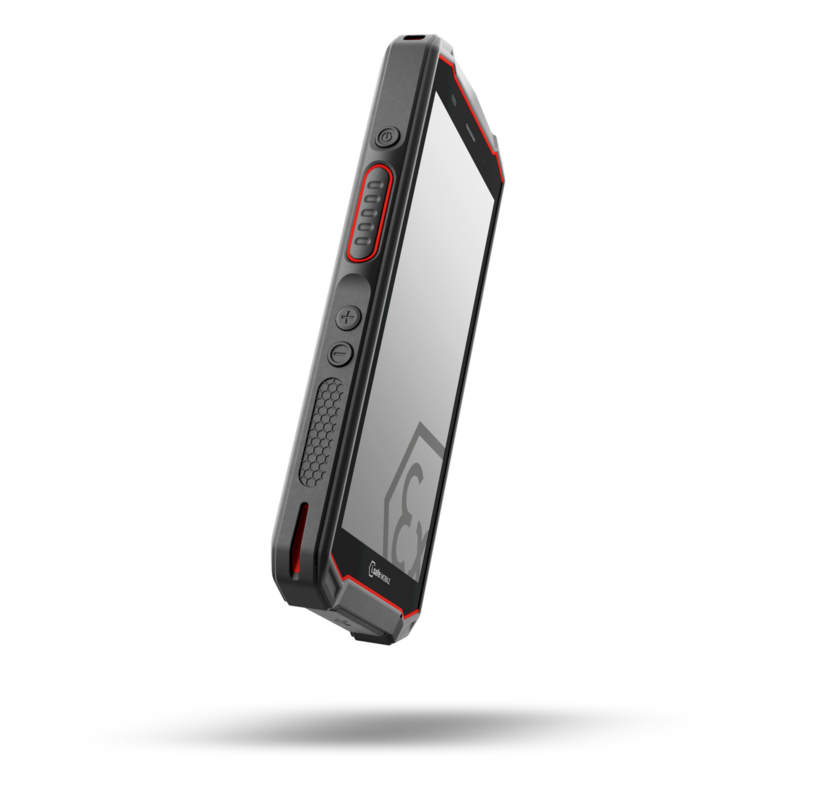

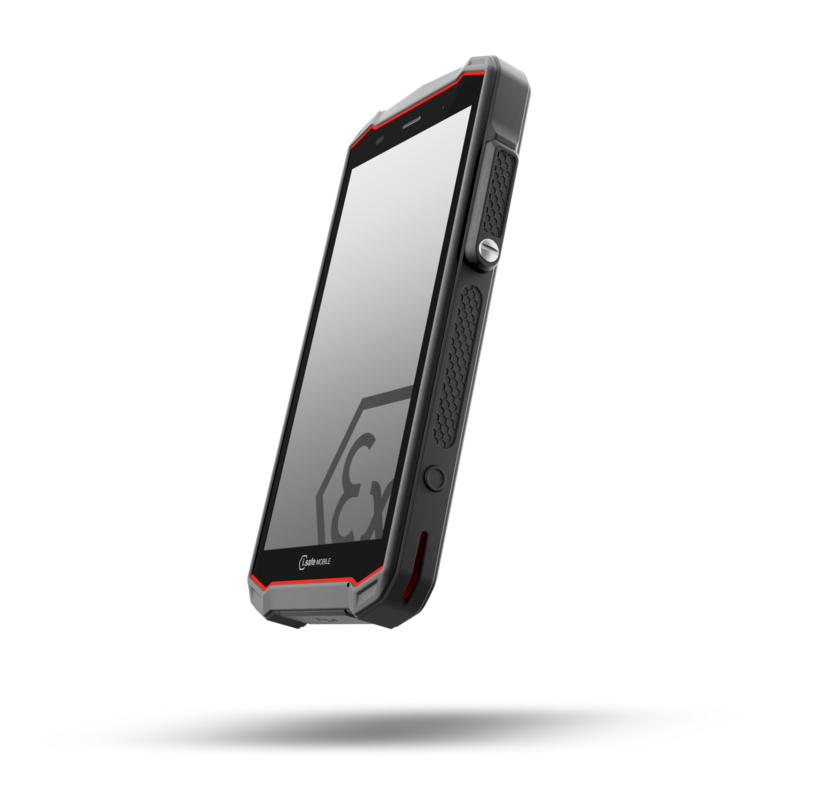

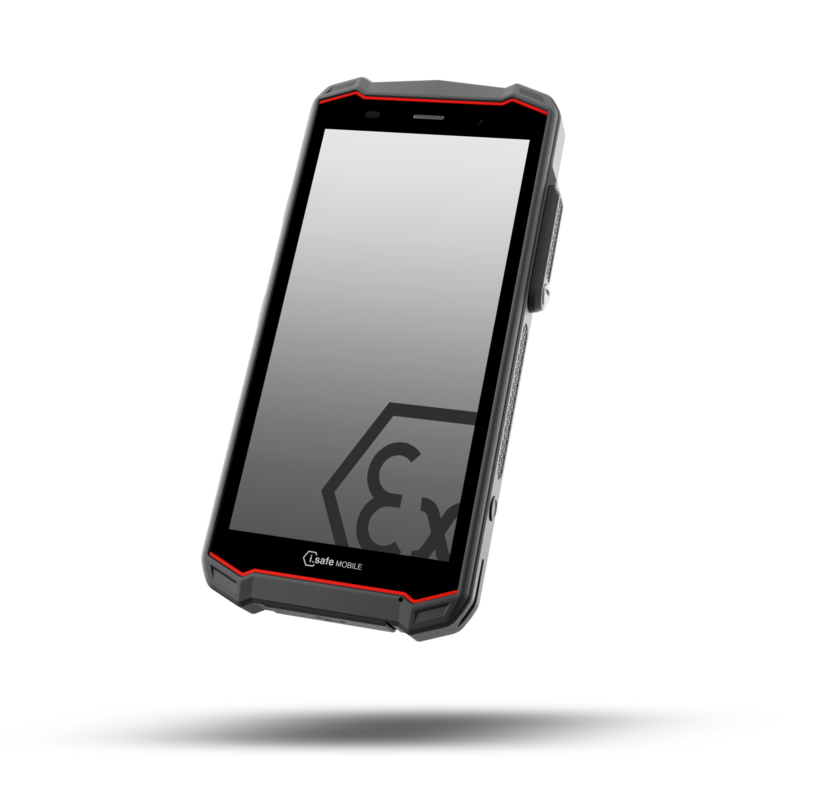

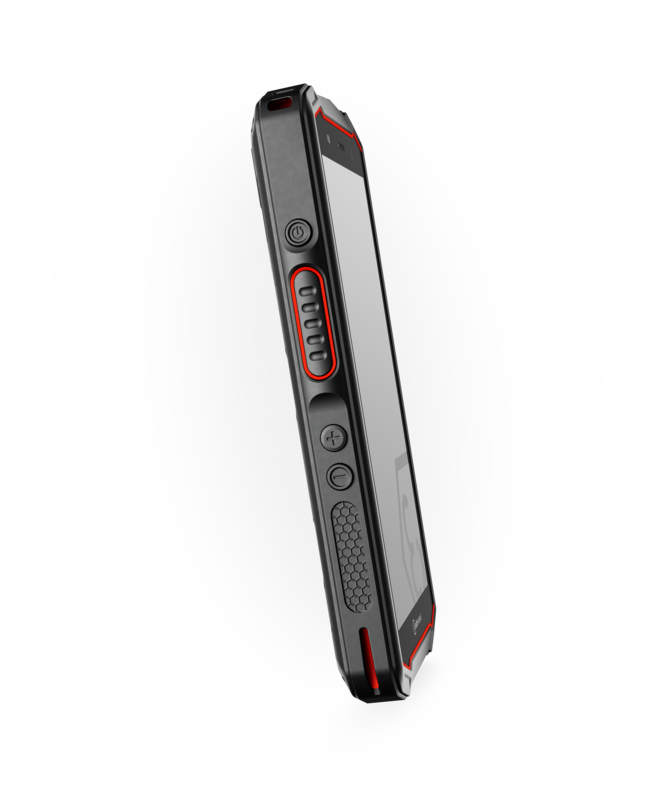

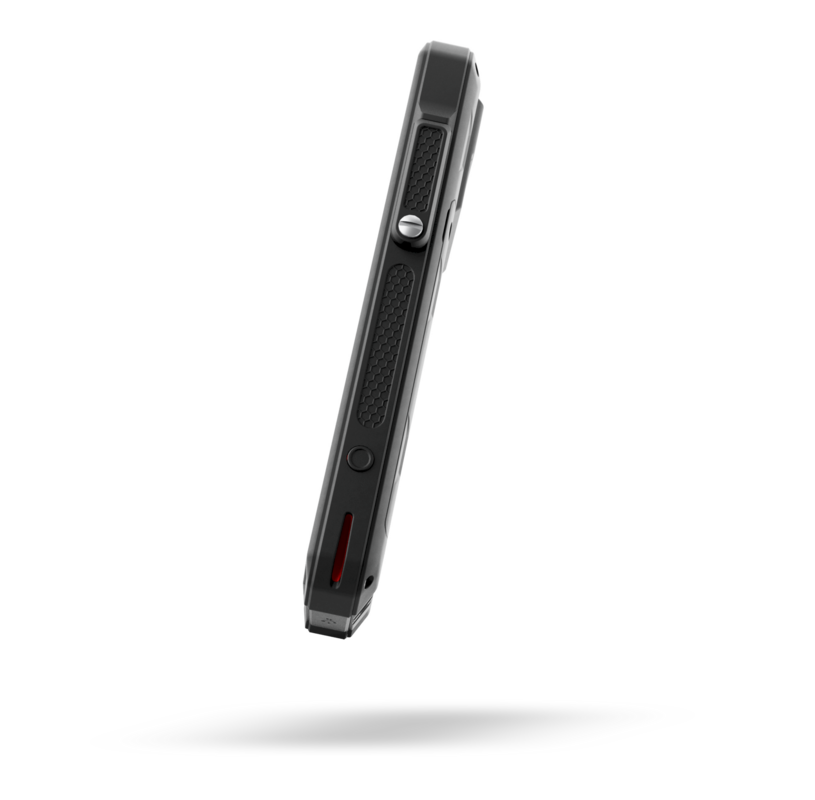

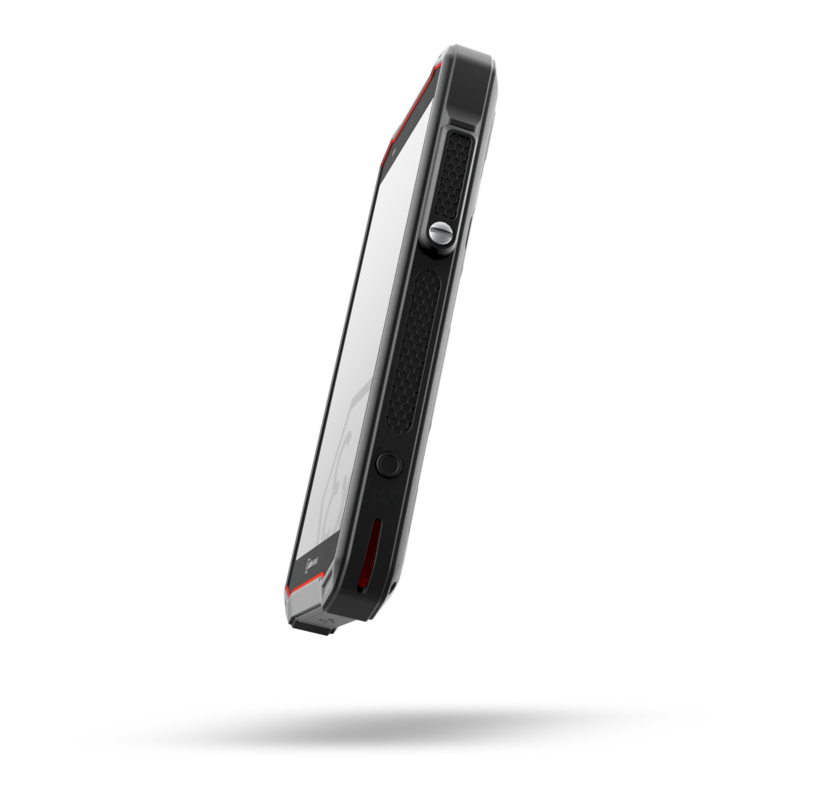

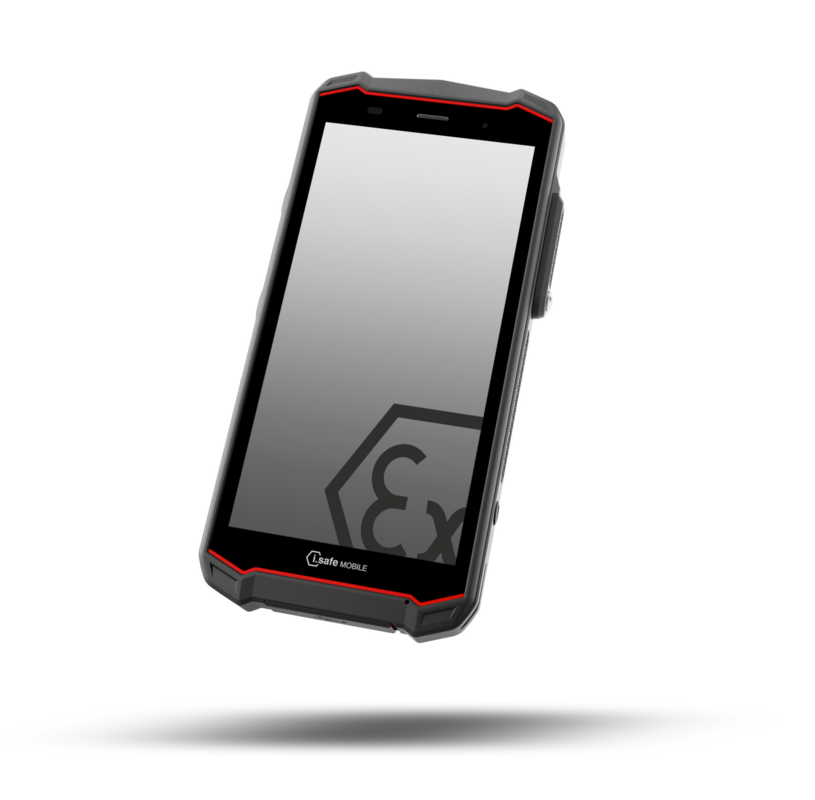

IS540.M1

The 5G smartphone with a clear 6-inch full HD display is equipped with a high-end chipset, supports a wide range of frequency bands and offers the highest image quality through the 48 MP main camera. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. The 16-pin ISM interface provides a secure connection for approved accessories.

Mini Picture
Mini Picture

ADVANTAGES

  • Amplified loudspeaker for noisy work environments
  • Replaceable 4400 mAh battery
  • Programmable side key (e.g. for PoC/PTT)
  • Programmable red key (e.g. for lone worker protection/SOS)

TECHNICAL FEATURES

Operating systemAndroid™ 12
ProcessorQualcomm® QCM6490 Octa Core
Memory8 GB RAM
128 GB internal memory
microSD to 128 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
DimensionsSize: 180,0 x 84,9 x 20,6 mm
Weight: 422,0 g
Display6,0" (15,24 cm) Corning® Gorilla® Glass V3
usable with gloves
Battery4400 mAh, 3,7 V
replaceable
Camera48 MP AF rear
5 MP FF front
ConnectivityWi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
Bluetooth® 5.2
GPS, A-GPS, Glonass, Beidou, Galileo
Near Field Communication
Types of protectionIP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C

FURTHER FEATURES

Multifunctional ISM interface
Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
Verstärkter Lautsprecher
Amplified loudspeaker
Sensors
Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
SIM cart
Dual-SIM (Nano-SIM + eSIM)
Ladeoptionen (Desktopcharger, Magnetic)
USB-C, Desktop Charger, Multi Charger
Download datatsheet | pdf ▪ 254 KB

APPROVALS

ATEX Mining (Europe)
ATEX Mining (Europe)
approved
I M1 Ex ia I Ma
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
IECEx Mining (International)
IECEx Mining (International)
approved
Ex ia I Ma
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
IA Mining (South Africa)
IA Mining (South Africa)
approved
Ex ia I Ma
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
ANZEx Mining (Australia)
ANZEx Mining (Australia)
approved
Ex ia I Ma
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

CONTENTS

Included
  • Smartphone
  • Battery
  • i.safe PROTECTOR 2.0
  • Power Adapter universal
  • Safety Instructions
  • Screwdriver
  • Quick Start Manual
  • Display Protection Foil
APPROVED ACCESSORIES FOR IS540.M1
Batteries
BPIS540.M1A Battery
BPIS540.M1A Battery
IS540.M1 Li-ion battery 4400 mAh, Type BPIS540.M1A, Size: 103,5 x 75,0 x 14,0 mm (L x W x H)
Charging systems
IS-DC540.1 Desktop Charger Set
IS-DC540.1 Desktop Charger Set
Desktop charger for the IS540.x devices with a second charging slot for spare battery. Size: 114 x 80 x 54 mm (L x W x H)
IS-DC540.1 Desktop Charger Set
Product information IS-DC540.1
English
pdf
122 KB
Download
i.safe PROTECTOR 2.0
Charging systems
i.safe PROTECTOR 2.0 USB-C Cable
i.safe PROTECTOR 2.0
i.safe PROTECTOR 2.0 USB-C Cable
For safe charging of the device via the type USB-C port.
Headsets
IS-HS2A.1 Headset Set
IS-HS2A.1 Headset Set
16-pin Headset, suitable for all 16 ISM interfaces.
IS-HS2A.1 Headset Set
Datasheet IS-HS2A.1
English
pdf
239 KB
Download
Safety Instructions IS-HS2A.1
pdf
749 KB
Download
Operating Manual IS-HS2A.1
pdf
1 MB
Download

Acoustic Tube IS-HSx.x
Acoustic Tube IS-HSx.x
Acoustic Tube for replacement when the headset is worn out. Suitable for IS-HS1.1 (13-pin), IS-HS2A.1 (16-pin), and IS-HS3A.1 (8-pin) Packaging unit 10 pieces.
Carrying systems
Belt Clip IS540.x
Belt Clip IS540.x
Plastic black, for a quick and safe attachment to the belt.
Leather Cases
Leather Case black IS540.x
Leather Case black IS540.x
Made of high quality leather, black. With locking clip for quick attachment to the belt.
Leather Cases
Leather Case yellow IS540.x
Leather Case yellow IS540.x
Made of high quality leather, yellow. With locking clip for quick attachment to the belt.
Leather Cases
Leather Case universal IS540.x
Leather Case universal IS540.x
Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS540.x.
Leather Cases
Leather Belt Loop for Leather Case
Leather Belt Loop for Leather Case
For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.
Handschlaufe lanyard
Carrying systems
Lanyard/Hand Strap Set
Handschlaufe lanyard
Lanyard/Hand Strap Set
The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.
IS-Stylus
Others
IS-Stylus Set
IS-Stylus
IS-Stylus Set
Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.
Display protection foils
Display Protection Foil IS540.x (10 pcs)
Display Protection Foil IS540.x (10 pcs)
Rugged plastic foil for an extended protection of the display.
Display protection foils
PanzerGlass™ IS540.x
PanzerGlass™ IS540.x
PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS540.1, IS540.2, IS540.M1.
Service
Warranty extension
Warranty extension
With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.
Warranty extension
Product information warranty extension
English
pdf
211 KB
Download
